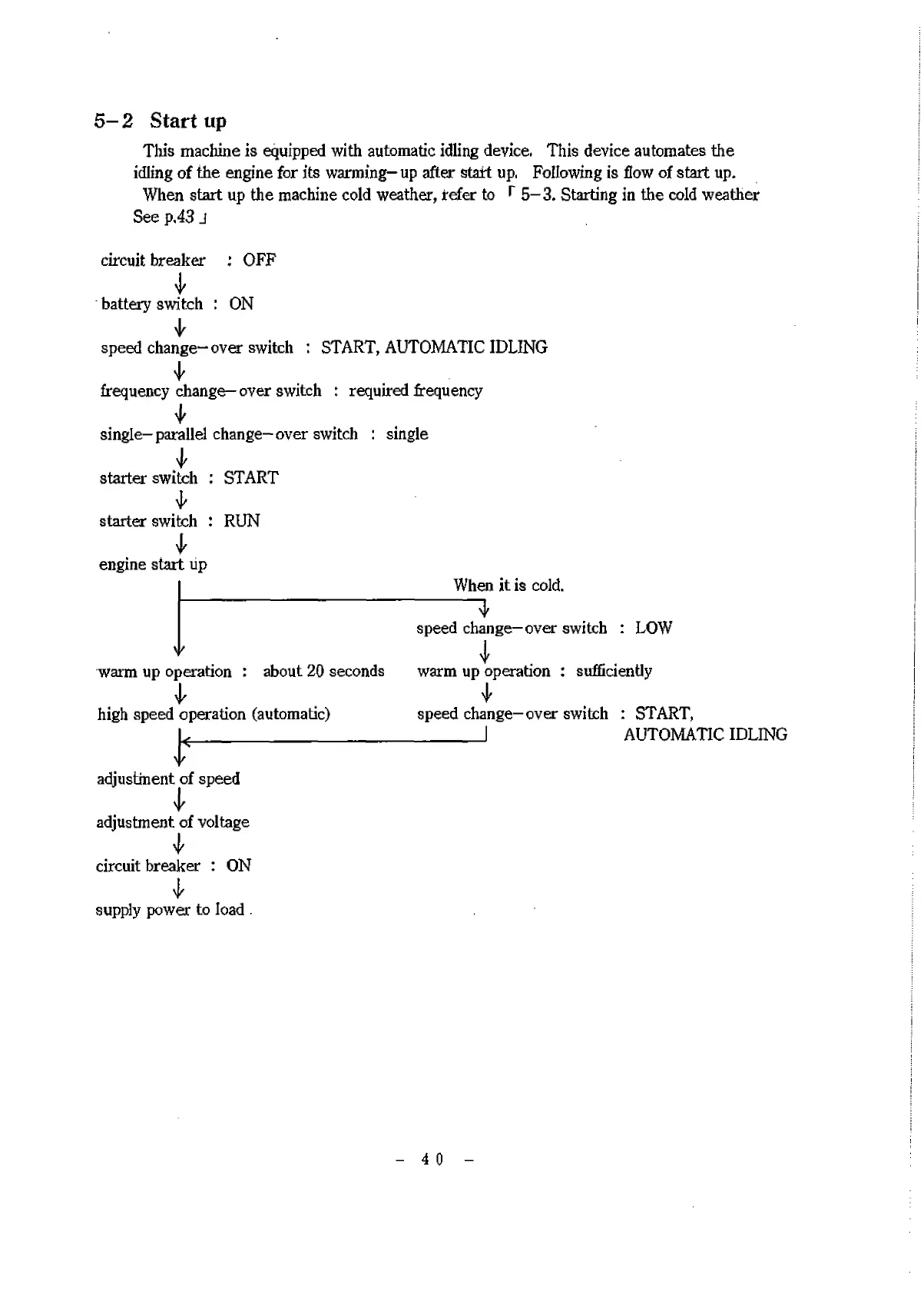

5- 2 Start up
This machine is equipped with automatic idling device. This device automates the
idling of the engine for its warming-up after start up, Following is flow of start up.
When start up the machine cold weather, refer to r 5-3. Starting in the cold weather
See p. 43 J
circuit breaker : OFF
Ф
battery switch : ON
Ф
speed change-over switch : START, AUTOMATIC IDLING
Ф
frequency change—over switch : required frequency
single—parallel change-over switch : single
ф
starter switch : START
Ф
starter switch : RUN
Ф
engine start lip
When it is cold,
ф
speed change—over switch : LOW
I
warm up operation : about 20 seconds warm up operation : sufficiently
ф ф
high speed operation (automatic) speed change-over switch : START,
_________________________________
I AUTOMATIC IDLING
J?
adjustment of speed
adjustment of voltage
Ф
circuit breaker : ON
Ф
supply power to load .
