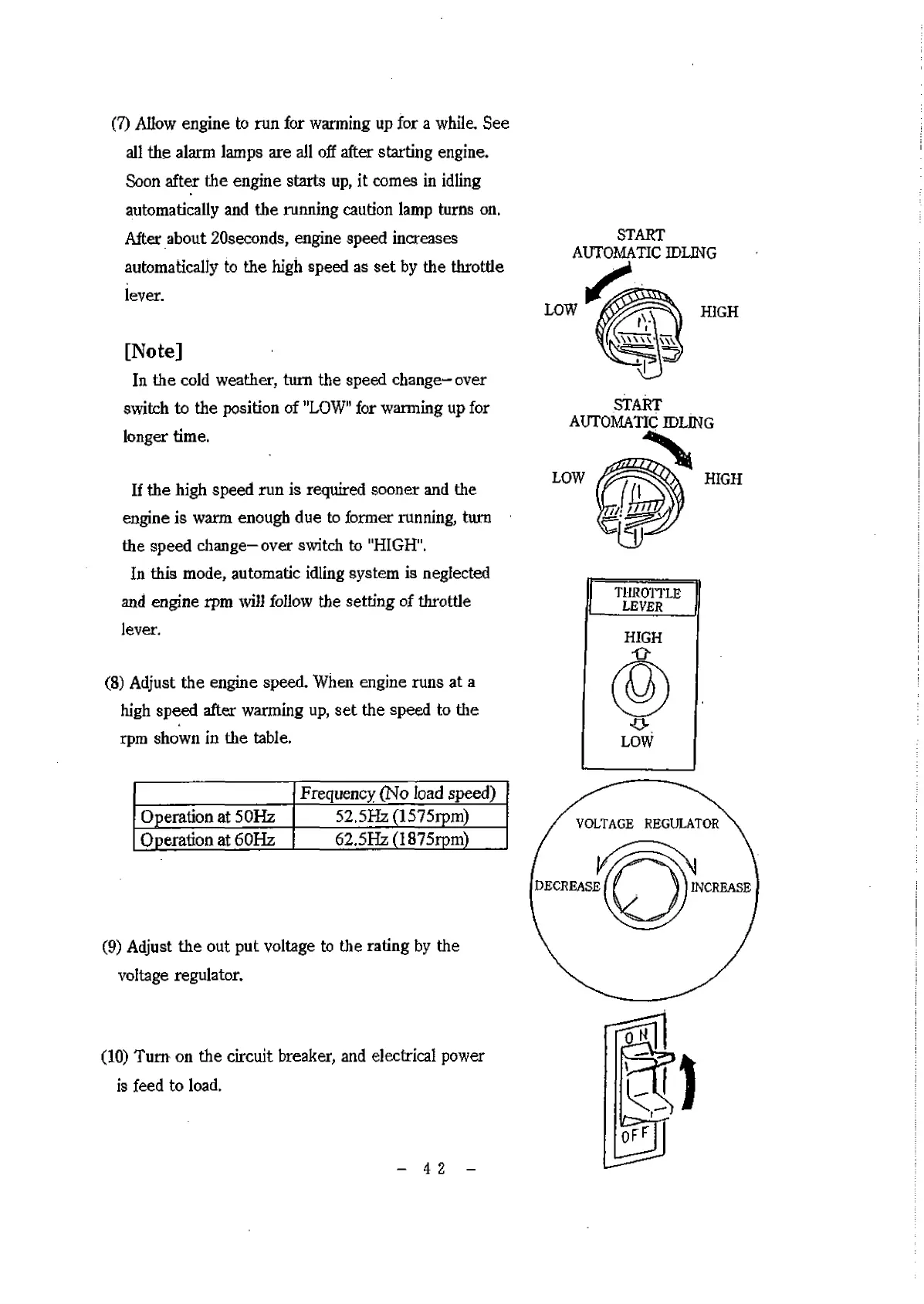

(7) Allow engine to run for warming up for a while. See
all the alarm lamps are all off after starting engine.
Soon after the engine starts up, it comes in idling
automatically and the running caution lamp turns on.
After about 20seconds, engine speed increases
automatically to the high speed as set by the throttle
lever.
[N ote]
In the cold weather, turn the speed change- over
switch to the position of "LOW" for wanning up for
longer time.
If the high speed run is required sooner and the
engine is warm enough due to former running, turn
the speed change-over switch to "HIGH".
In this mode, automatic idling system is neglected
and engine rpm will follow the setting of throttle
lever.
(8) Adjust the engine speed. When engine runs at a
high speed after warming up, set the speed to the
rpm shown in the table.
Frequency (No load speed)
Operation at 50Hz 52,5Hz (1575 rpm)
Operation at 60Hz
62.5Hz(1875rpm)
(9) Adjust the out put voltage to the rating by the
voltage regulator.
(10) Turn on the circuit breaker, and electrical power
is feed to load.
-42 -
START
AUTOMATIC IDLING
HIGH
START
AUTOMATIC IDLING
