Denyo DCA-60ESI2 - 4. Connecting the load; 4-4 EARTH LEAKAGE RELAY and Grounding

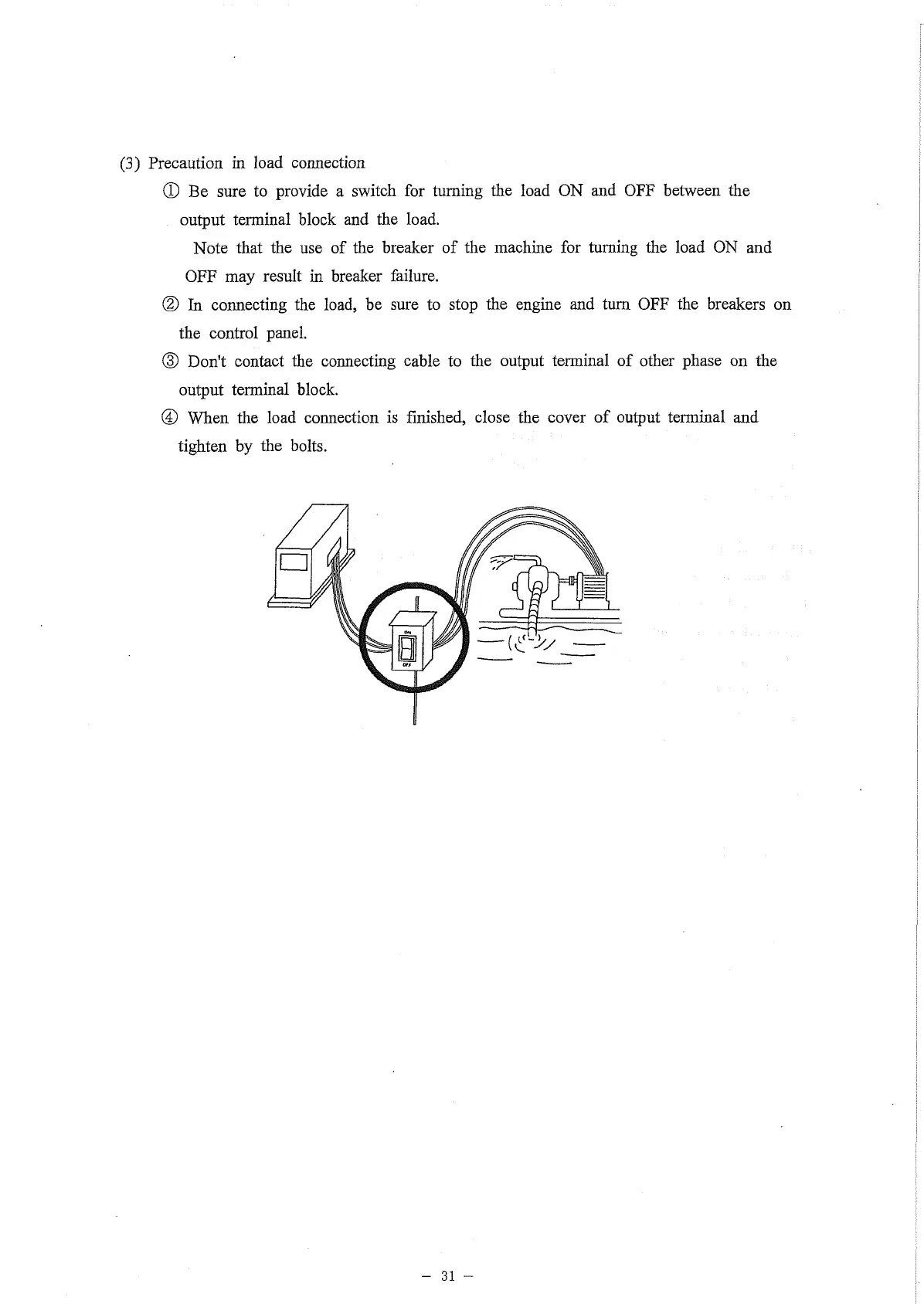

(3) Precaution in load connection
® Be sure to provide a switch for turning the load ON and OFF between the
output terminal block and the load.
Note that the use of the breaker of the machine for turning the load ON and
OFF may result in breaker failure.
(2) In connecting the load, be sure to stop the engine and turn OFF the breakers on
the control panel.
(3) Don't contact the connecting cable to the output terminal of other phase on the
output terminal block.
© When the load connection is finished, close the cover of output terminal and
tighten by the bolts.
- 31 -
