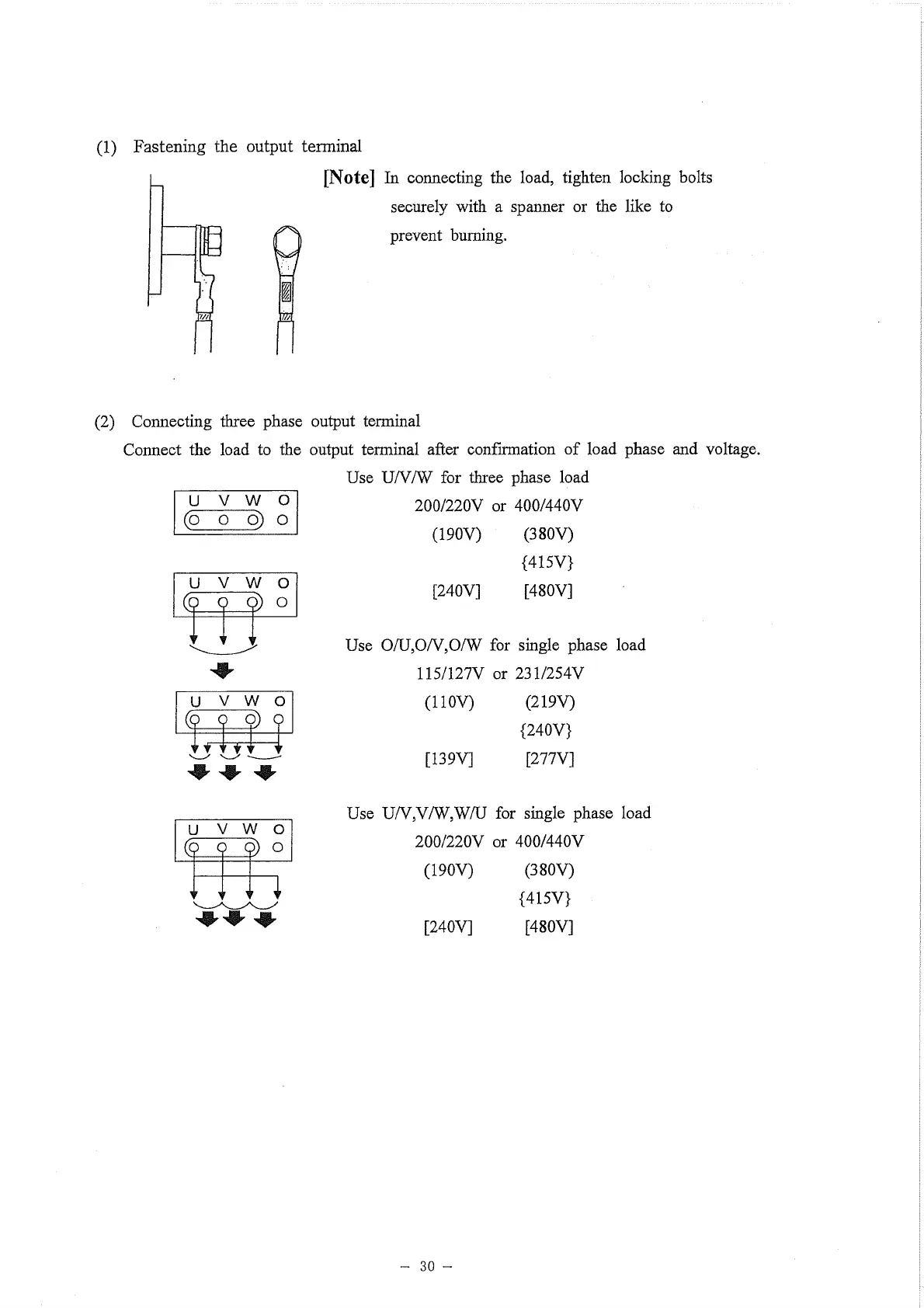

(1) Fastening the output terminal
[Note] In connecting the load, tighten locking bolts
securely with a spanner or the like to
prevent burning.
U V w О
(о о о) о
(2) Connecting three phase output terminal
Connect the load to the output terminal after confirmation of load phase and voltage.
Use U/V/W for three phase load
200/220V or 400/440V
(190V) (380V)
{415 V}
[240V] [480V]
Use 0/U,0/V,0/W for single phase load
115/127V or 231/254V
(110V) (219V)
{240V}
[139V] [277V]
и
V w о
ft
j) с
p С
j>) о
'
'
''
u v w О
([
U V w о
ft
p с) с
j>) о
1
Use U/V,V/W,W/U for single phase load
200/220V or 400/440V
(190V) (380V)
{415V}
[240V] [480V]
- 30 -
