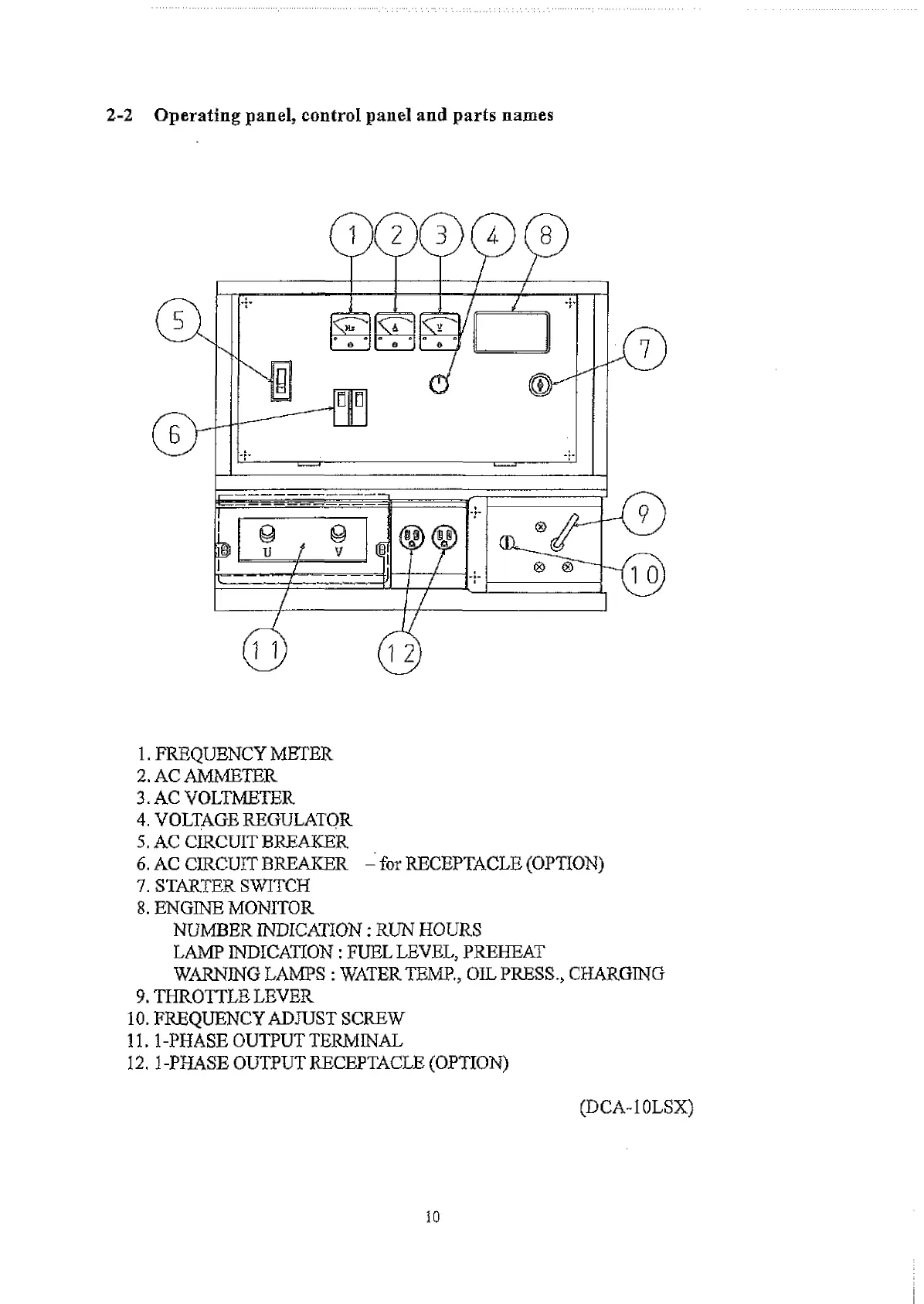

2-2 Operating panel, control panel and parts names
1. FREQUENCY METER
2. AC AMMETER
3. AC VOLTMETER
4. VOLTAGE REGULATOR
5. AC CIRCUIT BREAKER
6. AC CIRCUIT BREAKER - for RECEPTACLE (OPTION)
7. STARTER SWITCH
8. ENGINE MONITOR
NUMBER INDICATION: RUN HOURS
LAMP INDICATION : FUEL LEVEL, PREHEAT
WARNING LAMPS : WATER TEMP., OIL PRESS., CHARGING
9. THROTTLE LEVER
10. FREQUENCY ADJUST SCREW
11.1 -PHASE OUTPUT TERMINAL
12, 1-PHASE OUTPUT RECEPTACLE (OPTION)
(DCA-10LSX)
