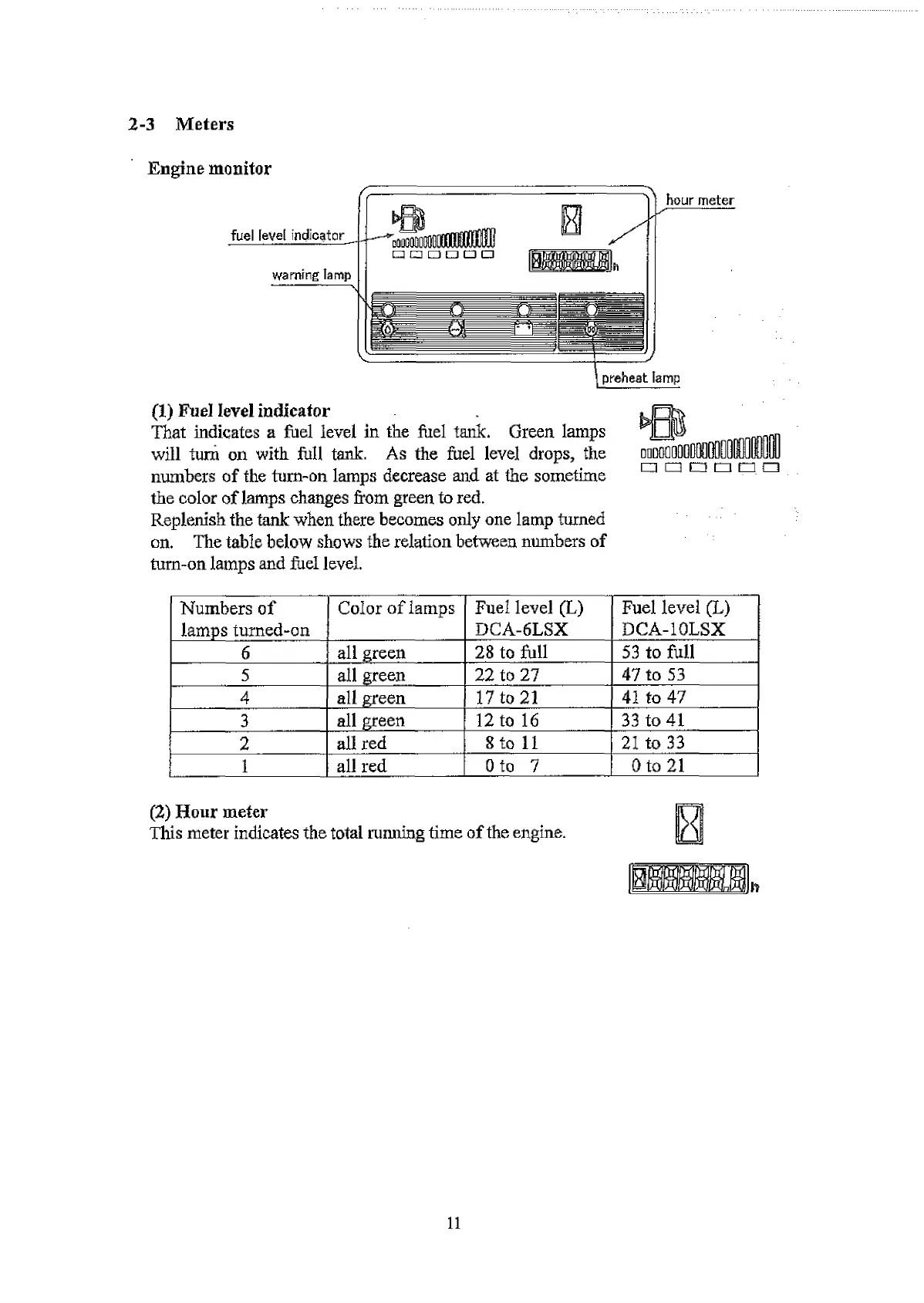

2-3 Meters
Engine monitor
(X) Fuel level indicator
That indicates a fuel level in the fuel tank. Green lamps
will turn on with foil tank. As the foel level drops, the
numbers of the turn-011 lamps decrease and at the sometime
the color of lamps changes from green to red.
Replenish the tank when there becomes only one lamp turned
on. The table below shows the relation between numbers of
tum-on lamps and foel level.
Numbers of
lamps turned-on
Color of lamps
Fuel level (L)
DCA-6LSX
Fuel level (L)
DCA-10LSX
6 all green
28 to foil
53 to full
5
all green 22 to 27
47 to 53
4
all green 17 to 21
41 to 47
3
all green
12 to 16
33 to 41
2
all red
8 to 11
21 to 33
1 all red
Oto 7
Oto 21
(2) Hour meter
This meter indicates the total running time of the engine.
ШШЕШШ
ШПШШШ
□ a о tn tm n
11
