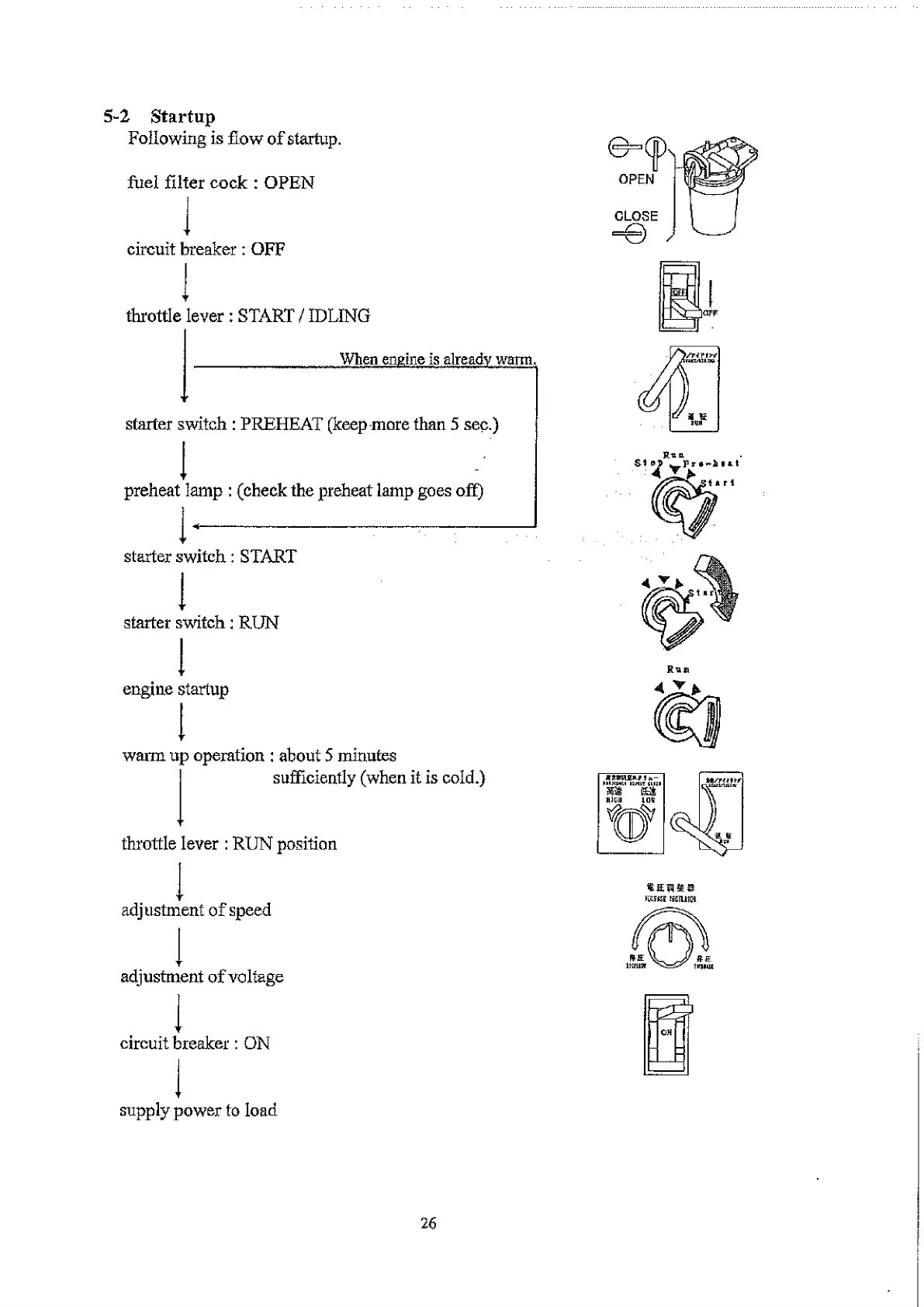

5-2 Startup
Following is flow of startup.
fuel filter cock : OPEN
circuit breaker: OFF
throttle lever : START / IDLING
When engine is already warm
starter switch : PREHEAT (keep more than 5 sec.)
i
preheat lamp ; (check the preheat lamp goes off)
I* -----------------------------
starter switch: START
i
starter switch: RUN
engine startup
I
ip operation : about 5 minutes
sufficiently (when it is cold.)
warm u
throttle lever : RUN position
T
adjustment of speed
adjustment of voltage
i г
circuit breaker: ON
supply power to load
