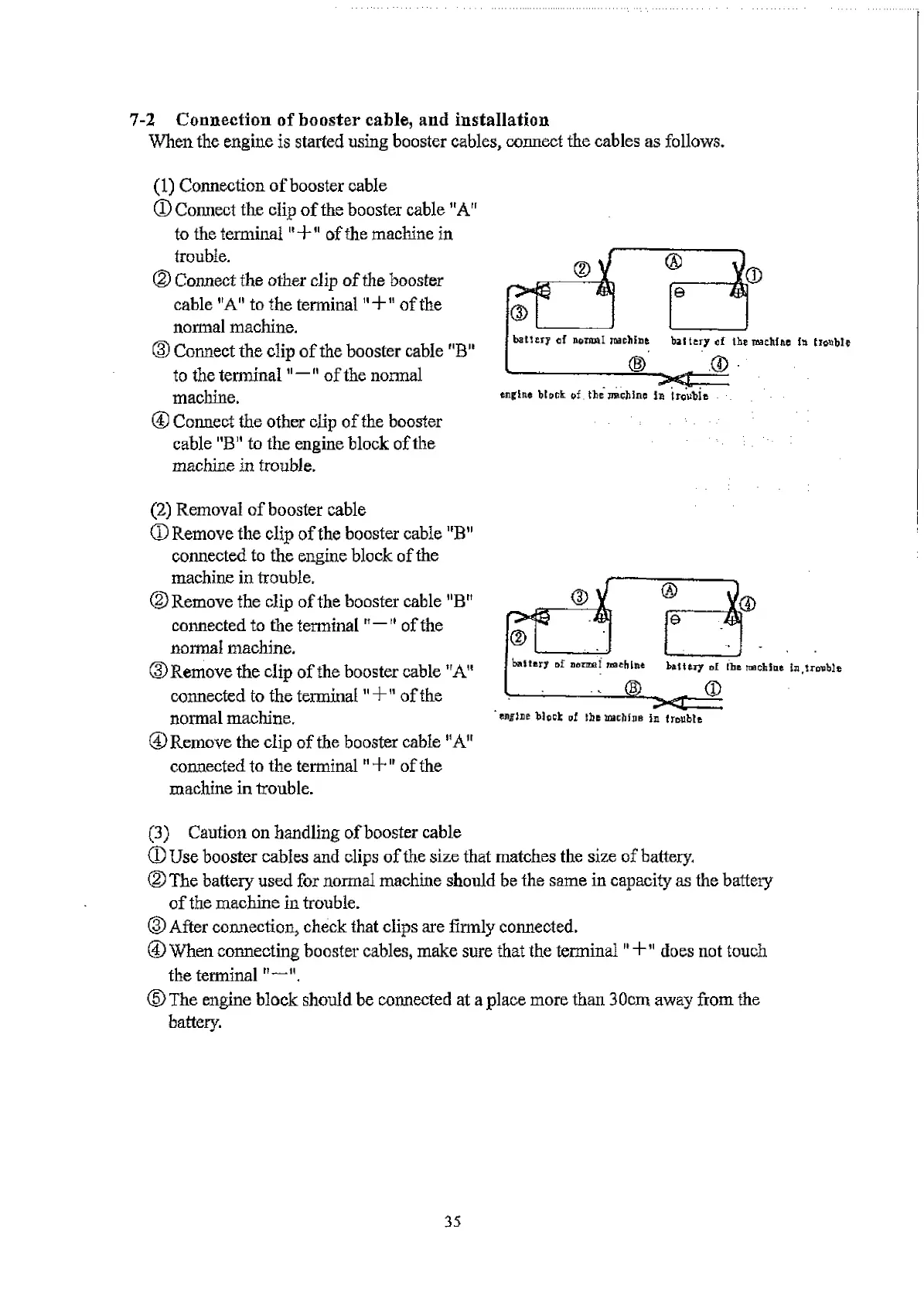

7-2 Connection of booster cable, and installation
When the engine is started using booster cables, connect the cables as follows.
(1) Connection of booster cable
CD Connect the clip of the booster cable "A"
to the terminal"+ " of the machine in
trouble.
© Connect the other clip of the booster
cable "A" to the terminal"+ " ofthe
normal machine.
© Connect the clip of the booster cable "B"
to the terminal"—" of the normal
machine.
© Connect the other clip of the booster
cable "B" to the engine block ofthe
machine in trouble.
e
battery of дотай I jraciins
_ ®
tugSue block of the machine in trouble
battery of tie пиchine in trouble
'■Ф
X V
(2) Removal of booster cable
(D Remove the clip of the booster cable "B”
connected to the engine block of the
machine in trouble,
©Remove the clip ofthe booster cable "B"
connected to the terminal"—" of the
normal machine.
©Remove the clip ofthe booster cable "A”
connected to the terminal11+ " of the
normal machine.
©Remove the clip of the booster cable "A"
connected to the terminal"+ " of the
machine in trouble.
Ф
e
1®
battery of norm I naehiftfc
—
______
battery el the nadilaa ta .trouble
Ф
~xc
block of tie machine in trouble
(3) Caution on handling of booster cable
Ф Use booster cables and clips of the size that matches the size of battery.
© The battery used for normal machine should be the same in capacity as the battery
of the machine in trouble.
® After connection, check that clips are firmly connected.
© When connecting booster cables, make sure that the terminal"+ 11 does not touch
the terminal
© The engine block should be connected at a place more than 30cm away from the
battery.
35
