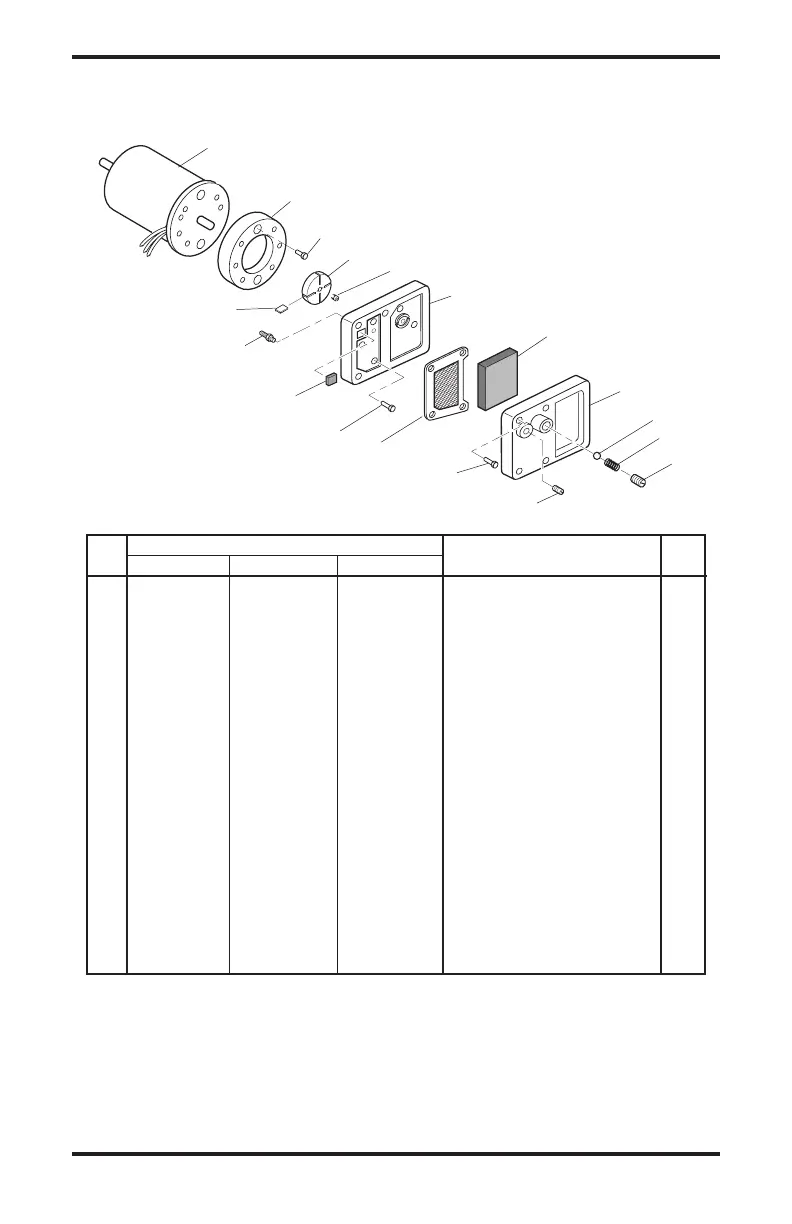

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
PUMP AND MOTOR ASSEMBLY FOR 125T, 170T AND 200T MODELS
KEY PART NUMBER
NO. 125T Models 170T Models 200T Models DESCRIPTION QTY.
1 102001-30 102001-30 102001-27 Motor 1
2 079975-02 079975-03 079975-03 Pump Body 1
3 FHPF3-5C FHPF3-6C FHPF3-6C Screw 2
4 M22009*/** M22009*/** M22009** Rotor Insert 1
5 M22456-1* M22456-2** M22456-2** Pump Rotor 1
6 M50545 M50545 M50545 Pump End Cover 1
7 M12179*** M12179*** M12179*** Intake Filter 1
8 M16545 M16545 M16545 Filter End Cover 1
9 M8940∞ M8940∞ M8940∞ Steel Ball, 1/4" Diameter 1
10 M10993-1∞ M10993-1∞ M10993-1∞ Relief Spring 1
11 M27694∞ M27694∞ M27694∞ Adjusting Screw 1
12 M22997∞ M22997∞ M22997∞ Plug 1
13 M12461-31 M12461-31 M12461-31 Screw, #10-32 x 1" 4
14 M12244-1*** M12244-1*** M12244-1*** Output Filter 1
15 M11637*** M11637*** M11637*** Lint Filter 1
16 104096-01 104096-01 M50820-02 Fitting, Straight Nylon Barb 1
17 M8643* M8643-2** M8643-2** Blade 4
18 M12461-31 M12461-32 M12461-32 Screw 6
* Included in Rotor Kit (Part No. HA3004)
** Included in Rotor Kit (Part No. HA3005)
*** Included in Filter Kit (Part No. HA3017)
∞ Included in Pump Adjustment Kit (Part No. HA3020)
11
17
16
15
14
18
10
1
2
3
4
5
6
7
8
9
13
12
