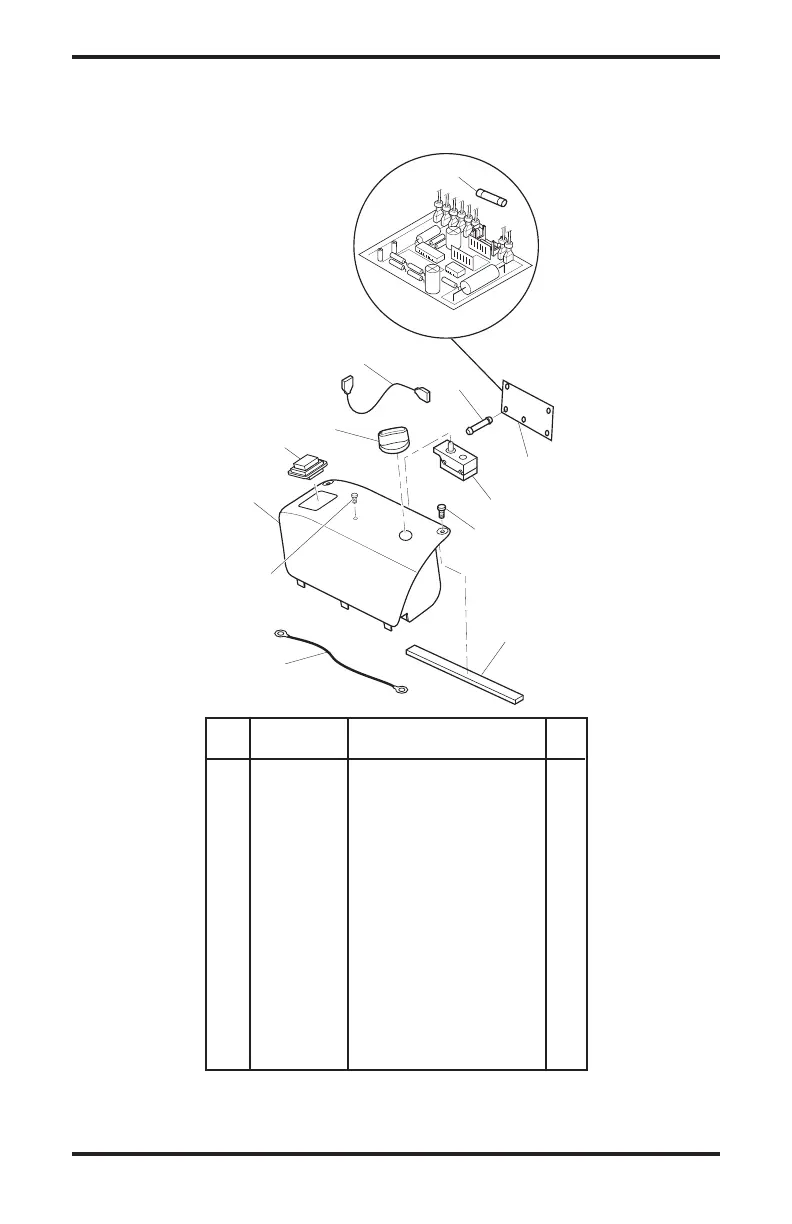

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST
CONTROL COVER ASSEMBLY FOR MODELS
M125AT, RH125AT, RH170AT, M170AT AND M200AT ONLY
6
2
7
10
11
3
9
4
1
8
5
12
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 108461-01 Control Cover 1
2 097785-08 Foam Gasket 1
3 108394-01 ON/OFF Switch 1
4 104460-01 Knob 1
5 104458-01 Thermostat 1
6 108668-01 P.C. Board Support 1
7 104068-02 Ignition Control Assembly 1
8 108631-01 Screw, #10-16 x 1" 2
9 M12461-18 Screw, #8-32 x 7/8" 1
10 M9900-170 Wire Assembly, Black 1
11 113752-01 Fuse 1
12 M9900-192 Control Wire 1
— 097785-09 T-stat Foam Gasket 1
(Not Shown)
