108321-01B 5

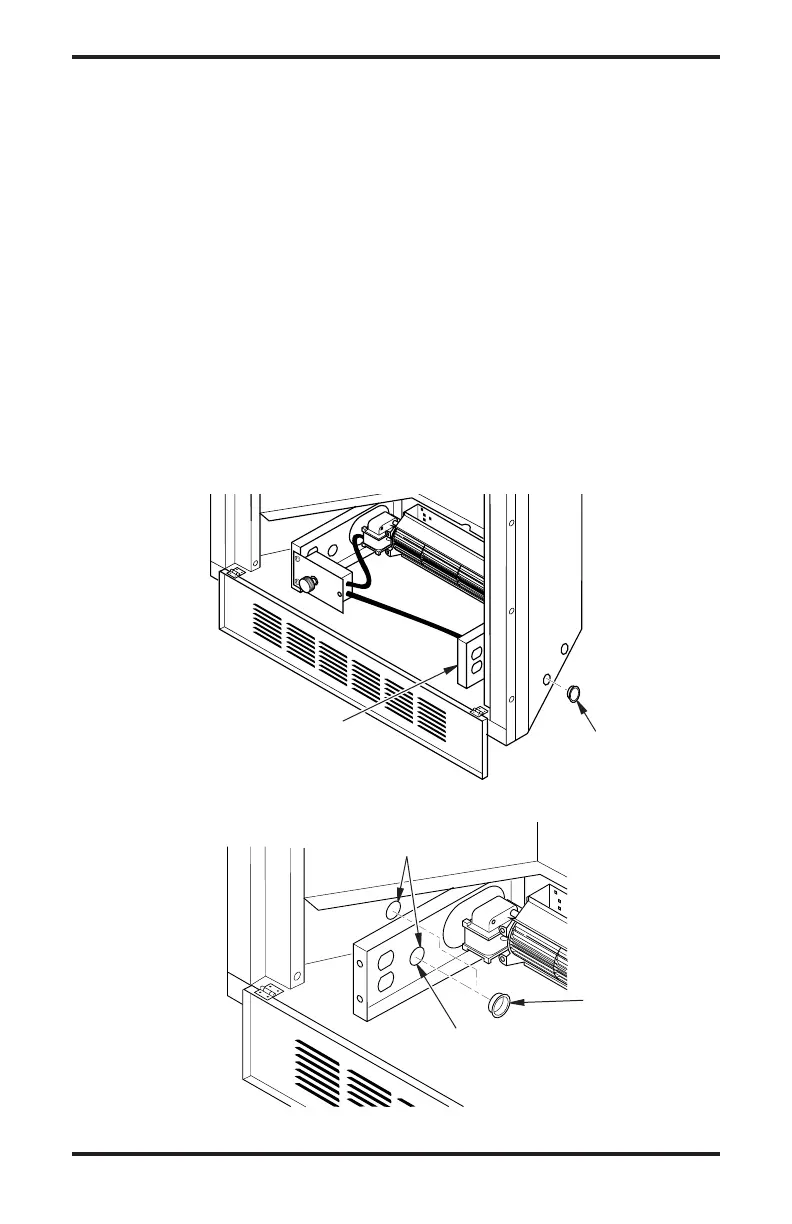

Figure 5 - Installing Plastic Bushing for Power Cord (Right Side Exit Shown)
Right Floor
Support Bracket
Plastic Bushing
14. Plug in blower power cord.
a. If your rebox is installed as a freestanding
unit with an accessory mantel, determine
whether the power cord will exit the left
side or the right side of the rebox. Install
one plastic bushing provided into the 1.5"
hole in the oor support on the exit side.
Install the second bushing provided into the
1.5" hole in the outer casing through which
the power cord will exit (see Figures 5 and
6). Route power cord through plastic bush-
ings and plug the power cord into a properly
grounded three-prong wall receptacle near
the rebox.
b. If your replace system installation is re-
cessed, install one plastic bushing provided
into the 1.5" hole near the middle of the
left oor support bracket (see Figure 6).
Route power cord through plastic bush-
ing. Plug the power cord into a properly
installed duplex outlet. (If an outlet is not
installed in your replace, the accessory
model GA3555 Outlet Kit with cover can
be installed in your replace. This will
supply a convenient three-prong grounded
electrical outlet for your blower. Refer to
the installation manual provided with the
model GA3555 accessory for instructions
on wiring the duplex outlet.)
Note: A qualied installer must make all electri-
cal connections.
15. Check to make sure that the power cord and
wires are completely clear of the blower wheel
and that there are no other foreign objects in
blower wheel.
INSTALLING BLOWER
ACCESSORY IN A 32"
FIREPLACE SYSTEM
Continued
Figure 6 - Installing Bushings (Left Side Exit shown)
Bushing Location
for Recessed
Installation
Bushing Location for
Freestanding Installation
Plastic
Bushing
