Desa GA3650TB - Blower and Speed Control Installation

www.desatech.com
108321-01B4
12. Place control knob provided on plastic control
shaft of speed control (see Figure 4).
13. Locate the plastic hole plug installed in the
3/8" diameter opening in the lower right
side of the rebox front panel (see Figure 4).
Remove the plastic plug and discard.
5. Place speed control against inner wall of
front panel, pushing the plastic control shaft
forward through the opening (see Figure 4).
INSTALLING BLOWER
ACCESSORY IN A 32"
FIREPLACE SYSTEM
Continued
6. While supporting speed control, secure control
shaft with lock nut by pushing and turning
lock nut with pliers clockwise until it is tight
against front panel. Place control knob pro-
vided on shaft (see Figure 4).
Note: Some remote ready replace models have
the gas control located near the left oor support
bracket. For these models mount the blower speed
control on the right oor support bracket.
WARNING: Never touch the
blower wheel while in operation.
WARNING: Failure to con-
nect all wires properly as in-
dicated may cause electrical
short circuit or personal injury.
A qualied electrician should
check that all connections are
made properly.
Blower
#8 Screws
Lower
Rear Wall
of Firebox
Wrapper
Top
Mounting
Tab
Exhaust Port

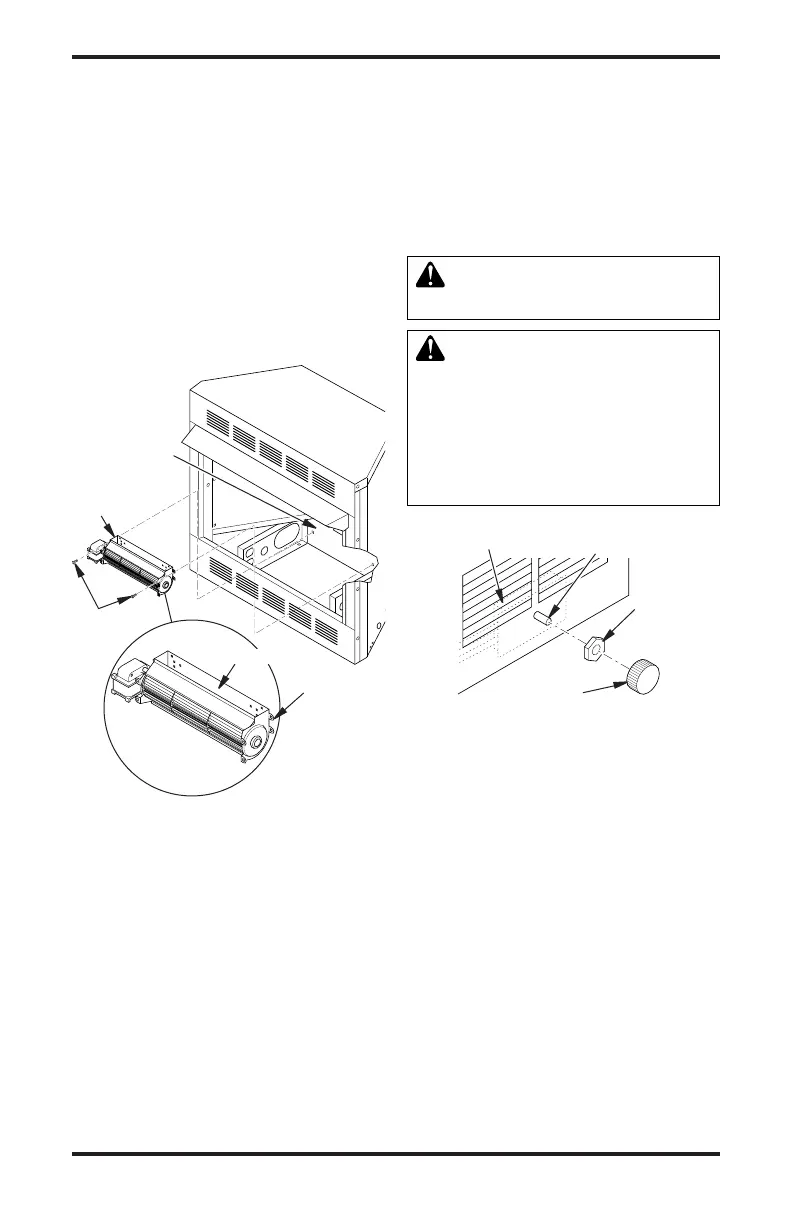

Figure 3 - Mounting Blower to Firebox
Figure 4 - Attaching Speed Control
Speed Control
Control Knob
Lock Nut
Control Shaft
