CLEANING
Continued
SPECIFICATIONS

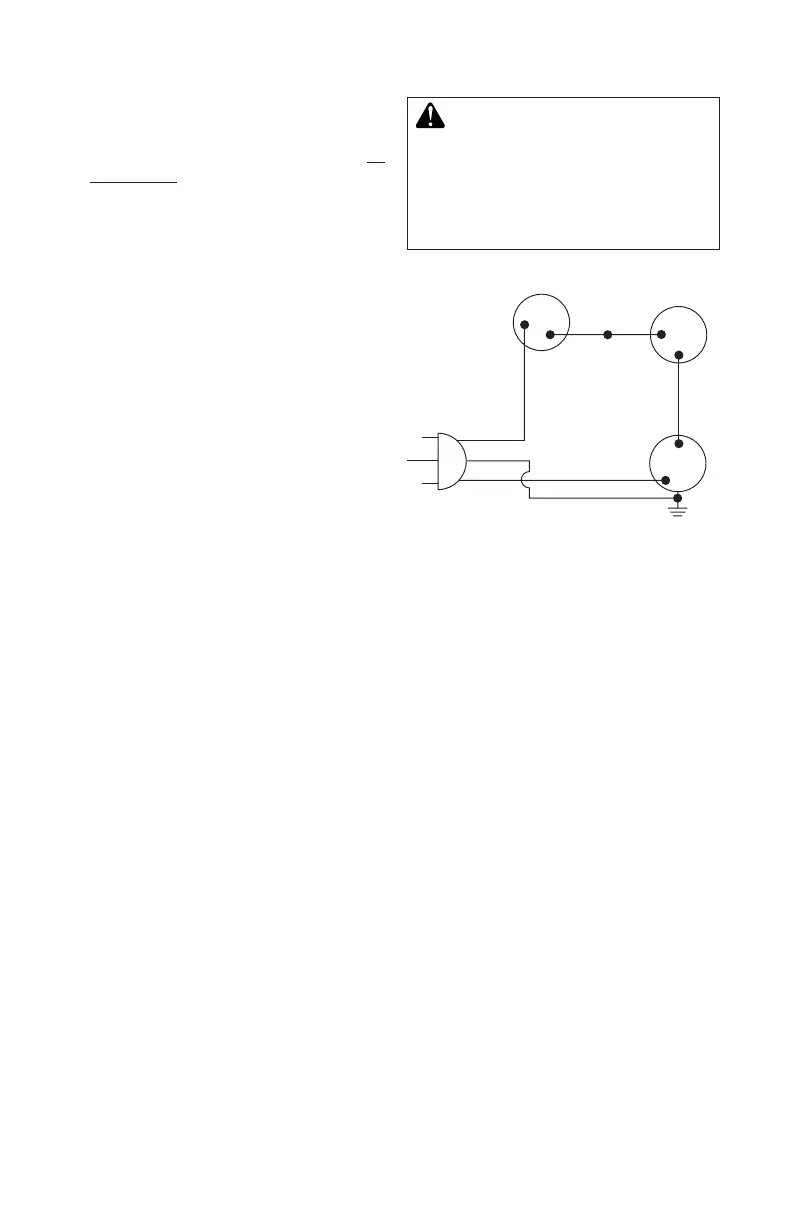

WIRING DIAGRAM
-
Red
Va riable
Fan Switch
Fan Switch
(N.O.)
Green
White
On
11 0/115
V . A.C.
Blower
Motor
Black
Off
1
2
Black
Blue
LOGS
• If you remove logs for cleaning, refer to In-
stalling Logs, pages 17, to properly replace
logs.
• Replace log(s) if broken or chipped (dime-
sized or larger).
• Rating (Variable): 21,000/28,000 Btu/Hr
• Type Gas: Natural Gas
• Ignition: Piezo
• Pressure Manifold: 3.4" W.C.
• Inlet Gas P ressu re (i n. of water):
Maximum 10.5" W.C., Minimum* 5" W.C.
• Shipping Weight: 100 lbs.
* For input adjustment
• Rating (Variable): 23,000/28,000 Btu/Hr
• Type Gas: Propane/LP
• Ignition: Piezo
• Pressure Manifold: 7.9" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 14" W.C., Minimum* 11" W.C.
• Shipping Weight: 100 lbs.
* For input adjustment
REPLACEMENT PARTS
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
Contact authorized dealers of this product. If
they can’t supply original replacement part(s),
call DESA Heating, LLC at 1-866-672-6040.
When calling DESA Heating, LLC, have
ready:
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• purchase date
Usually, we will ask you to return the part to
the factory.
Contact authorized dealers of this product. If
they can’t supply original replacement part(s),
call DESA Heating, LLC at 1-866-672-6040 for
referral information. A list of authorized dealers
can be found by visiting
When calling DESA Heating, LLC, have
ready:
• model and serial numbers of your heater
• the replacement part number
