#Pizza Hut Make Table operating and service manual

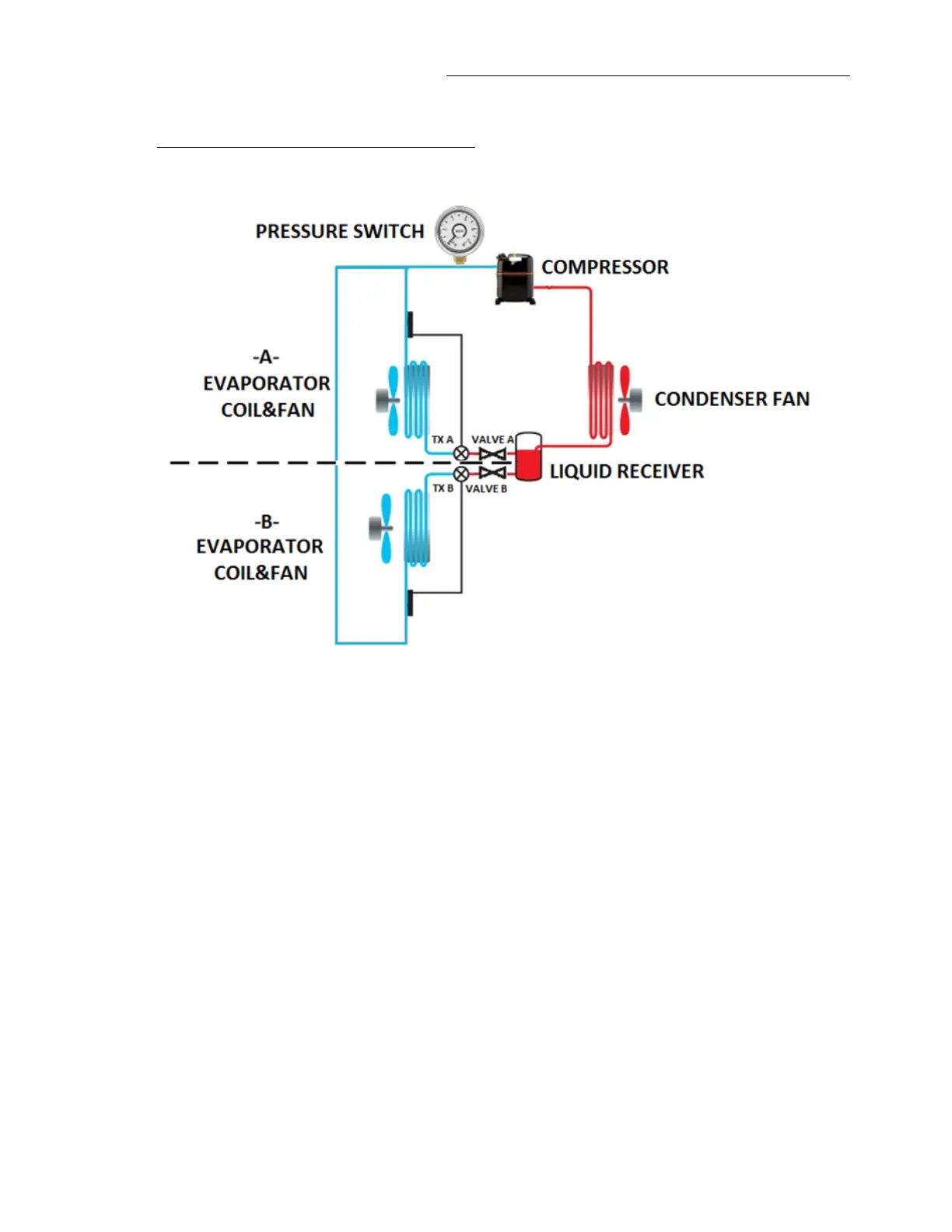

9. Cooling units scheme

ELECTRICAL COMPONENT INSTALLED

• COMPRESSOR

• CONDENSER FAN

• SOLENOID VALVE A

• SOLENOID VALVE B

• HOT GAS VALVE B

• EVAPORATOR FAN A

• EVAPORATOR FAN B

• SPEED FAN CONTROLLER

• CONTROLLER A

• CONTROLLER B

• PRESSURE SWITCH

PROBES

• AIR PROBE UNDERCOUNTER (PB1-Controller A)

• AIR PROBE PAN COOLER (PB1-Controller B)

• EVAPORATOR PROBE UNDERCOUNTER (PB2-Controller A)

• EVAPORATOR PROBE CONDIMENT RAIL (PB2-Controller B)
