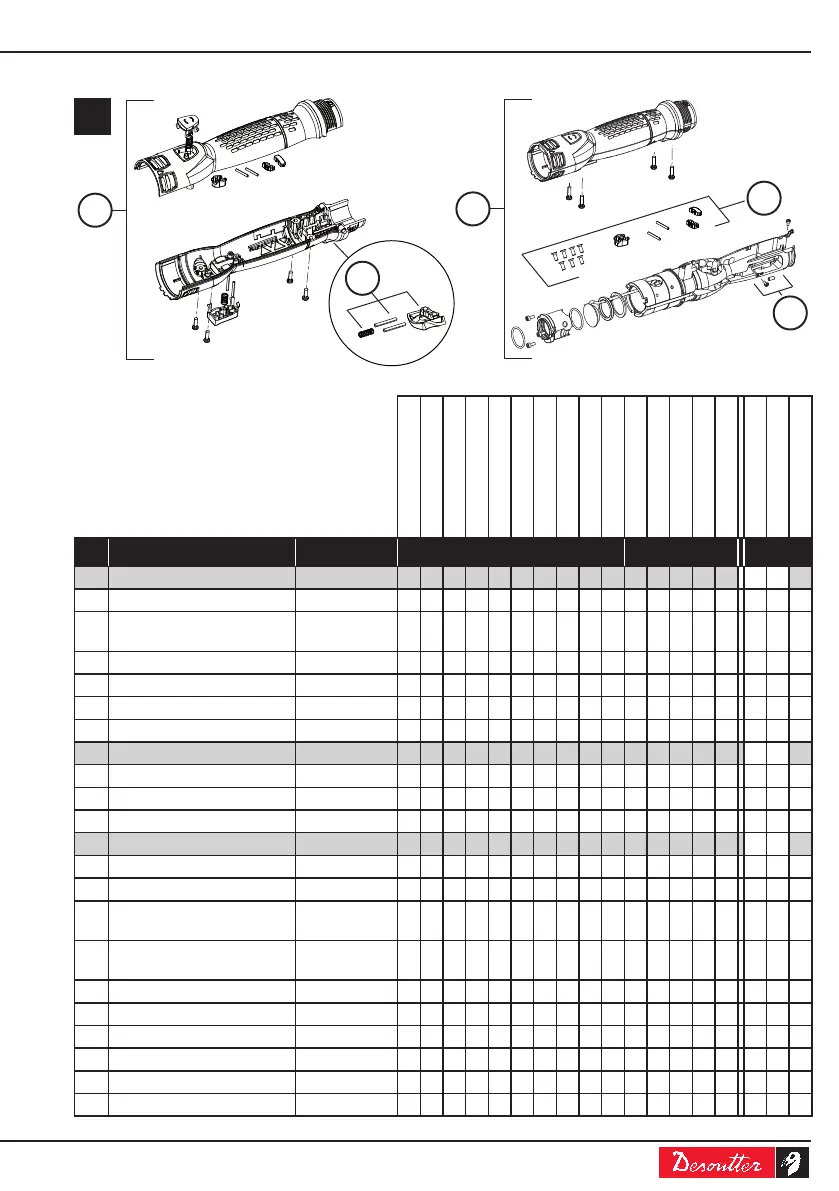

Desoutter EAD - Page 13

6159932570_09
13 / 10404/2014
Kit handle
EAD 20-1300 EAD 32-900 EAD 50-900 EAD 50-900-HAD EAD 70-700-HAD EAD 70-800 EAD 70-800 Sq.1/2 EAD 80-650 EAD 105-500 EAD 105-500-HAD EID 25-1200 EID 32-900 EID 44-1200 EID 65-900 EID 75-800 High Medium Low
Item Description Part no. Qty Qty Wear
A Kit handle 6153900645 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 X
Handle assembly - 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Screw hex head cap
M4X12
- 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Screw Torx M3X8 - 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Rectangular bumper - 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Round bumper - 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Needle 2X17.8 - 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
A1 Handle Locker Kit 6153976655 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 X
Needle 2X17.8 - 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Locker - 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Spring - 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
A2 Handle complete Kit 6153981940 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 X
Handle assembly - 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Skeleton EB4/6 XL - 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Screw EJOT K30X10
WN5452 black
- 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Wire ground harness for
handle
- 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Comm. sensor module - 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Bearing - 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7
Ring int. inversed Ø24 - 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Washer - 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Screw M2.5X6 - 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
O-ring 19.1X1.6 - 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1
A1
A2
A21
A21
A
A
