Desoutter EAD - Page 23

6159932570_09
23 / 10404/2014

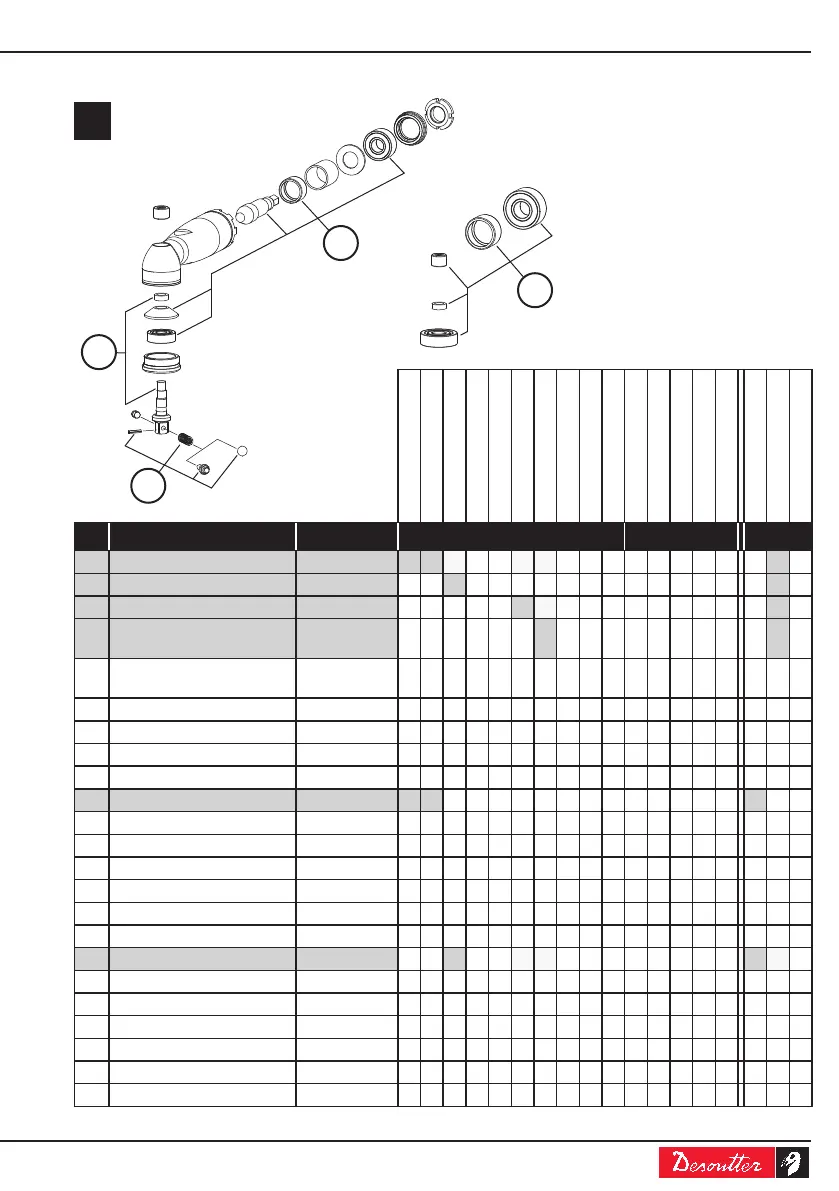

Kit output AHE1 - AHE2 - AHE3
EAD 20-1300 EAD 32-900 EAD 50-900 EAD 50-900-HAD EAD 70-700-HAD EAD 70-800 EAD 70-800 Sq.1/2 EAD 80-650 EAD 105-500 EAD 105-500-HAD EID 25-1200 EID 32-900 EID 44-1200 EID 65-900 EID 75-800
High Medium Low
Item Description Part no. Qty Qty Wear
J Output AHE1 complete 6153972665 1 1 X
J Output AHE2 complete 6153972675 1 X
J Output AHE3 complete 6153972685 1 X
J
Output AHE3 Sq. 1/2
complete
6153982805 1 X
Housing angle head
AHE1-2-3
- 1 1 1 1 1
Spacer - 1 1 1 1 1
Washer - 1 1 1 1 1
Nut - 1 1 1 1 1
Plug housing AHE1-2-3 - 1 1 1 1 1
J1 Bevel gear kit AHE1 6153966045 1 1 X
Driving pinion AHE1 - 1 1
Output wheel AHE1 - 1 1
Needle bearing 6X12X10 - 1 1
Needle bearing HK1512 - 1 1
Ball bearing 12X28X8 - 1 1
Ball bearing 10X22X6 - 1 1
J1 Bevel gear kit AHE2 6153966055 1 X
Driving pinion AHE2 - 1
Output wheel AHE2 - 1
Needle bearing 8X14X10 - 1
Needle bearing HK1712 - 1
Ball bearing 12X28X12 - 1
Ball bearing 10X26X8 - 1
J
J4
J1
J2
J3
