Desoutter EAD - Page 29

6159932570_09
29 / 10404/2014
EAD 20-1300 EAD 32-900 EAD 50-900 EAD 50-900-HAD EAD 70-700-HAD EAD 70-800 EAD 70-800 Sq.1/2 EAD 80-650 EAD 105-500 EAD 105-500-HAD EID 25-1200 EID 32-900 EID 44-1200 EID 65-900 EID 75-800
High Medium Low
Item Description Part no. Qty Qty Wear

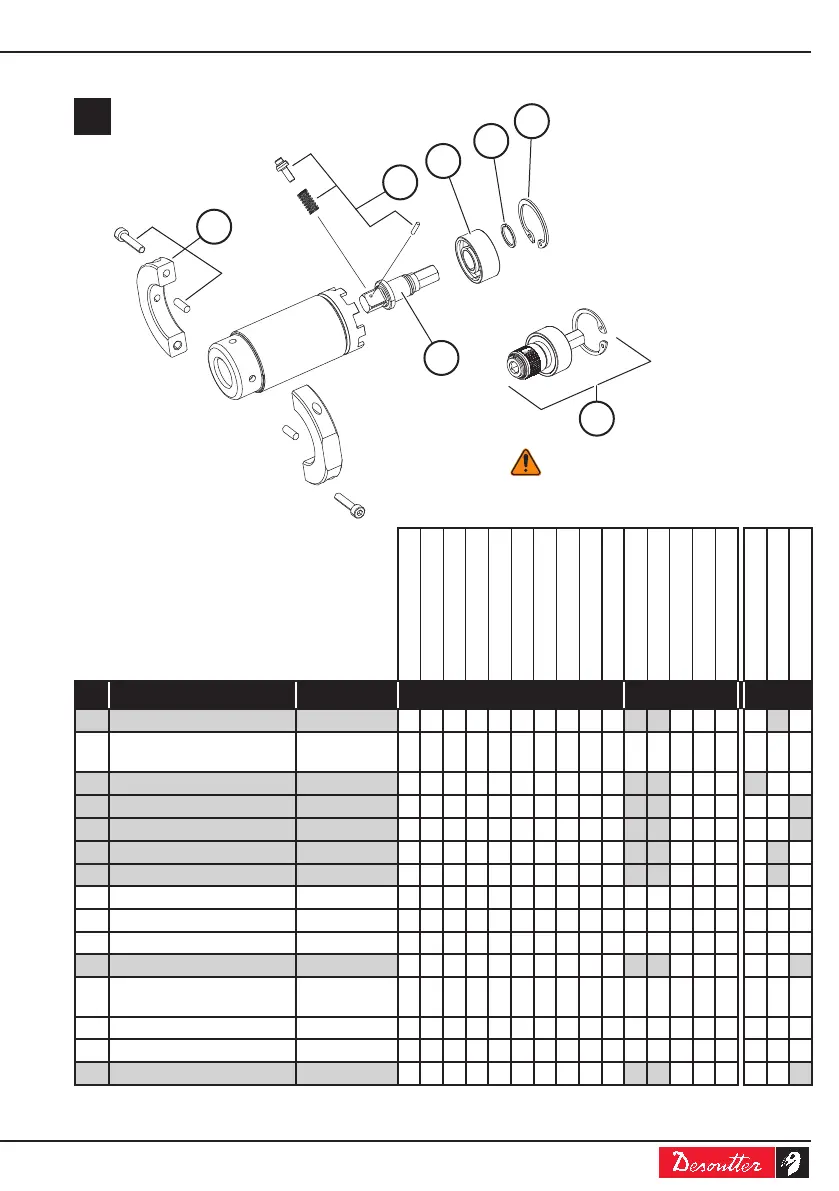

K Output SHE2 6153972755 1 1 X
Straight head housing
SHE2
- 1 1
K1 Ball bearing 12x28x12 3 6157581040 1 1 X
K2 Snap ring wr 12 6156890090 1 1 X
K3 Circlip 28x1.2 nfe22165 6156870200 1 1 X
K4 Output shaft_3/8"kit 6155210675 1 1 X
K5 Socket retention kit 6153978230 1 1 X
Pin
- 1 1
Spring pin 1,5 x 8
- 1 1
Spring
- 1 1
K6 Reaction bar kit 6153965515 1 1 X
Half-ring for the reaction
bar
- 2 2
Needle ø4x11.8
- 2 2
Screw hex head M 4 x 20
- 2 2
K7 Kit ouput 1/4” hex 6153977850 1 1 X
Kit output SHE2
K
K1
K2
K3
K4
K5
K6
K7
Use only for tools
below 15 Nm max.
