Model DM-700
DM-700 Instruction Manual Rev. 5.1 Page 8 of 51
Male 3/4" NPT Threads
Sensor Assembly
Splash Guard
2.125"
8.1"
Typ.
Ferrite Cylinder
Sensor Wires
2"
0.54"
5.48"

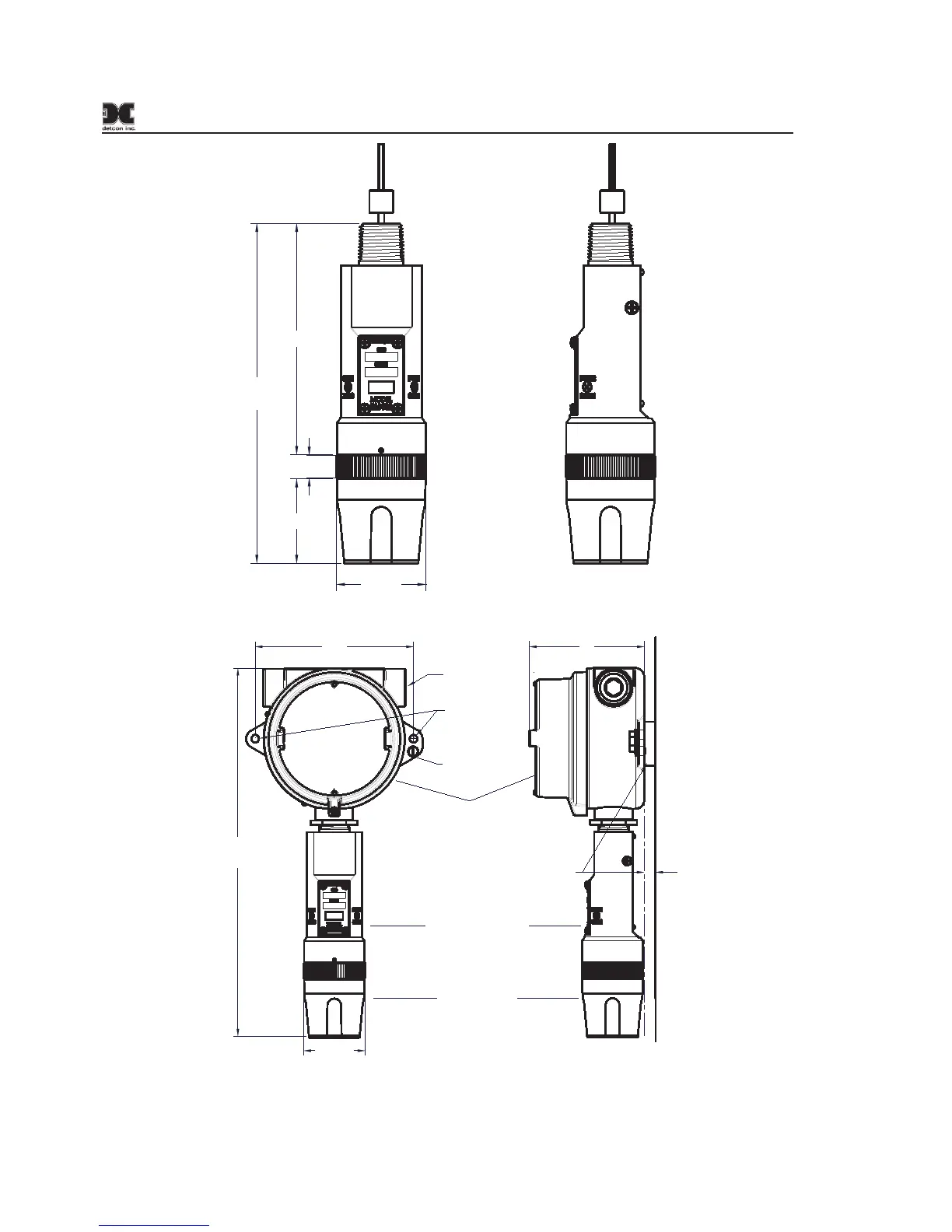

Figure 8 Outline and Mounting Dimensions (Sensor Assembly only)
4"
3/4" NPT
Explosion Proof Enclosure
Junction-Box
Sensor Assembly
Splash Guard
(Detcon's SS Junction-Box shown)
2.125"
5.5"
12.7"
Typ.
Mounting
Bolt
Use Spacers to move the J-Box
and Sensor Assembly away
from the wall at least 0.25-0.5"
to allow access to Sensor.
Wall
(or other
mounting surface)
Ø0.265"
Spacer
Mounting Holes
8-32 Thread
Ground Point
Figure 9 Outline and Mounting Dimensions (Stainless Steel Junction Box)
