Detcon DM-700 - Figure 10 Outline and Mounting Dimensions (Aluminum Junction Box); Figure 11 Outline and Mounting Dimensions (Mini Stainless Steel Junction Box)

Model DM-700
DM-700 Instruction Manual Rev. 5.1 Page 9 of 51
4"
3/4" NPT
Explosion Proof Enclosure
Junction-Box
Sensor Assembly
Splash Guard
(Detcon's Aluminum Junction-Box shown)
2.125"
5.5"
13.3"
Typ.
Mounting
Bolt
Use Spacers to move the J-Box
and Sensor Assembly away
from the wall at least 0.25-0.5"
to allow access to Sensor
Wall
(or other
mounting surface)
Ø0.265" x2
Spacer
Mounting Holes
8-32 Thread
Ground Point

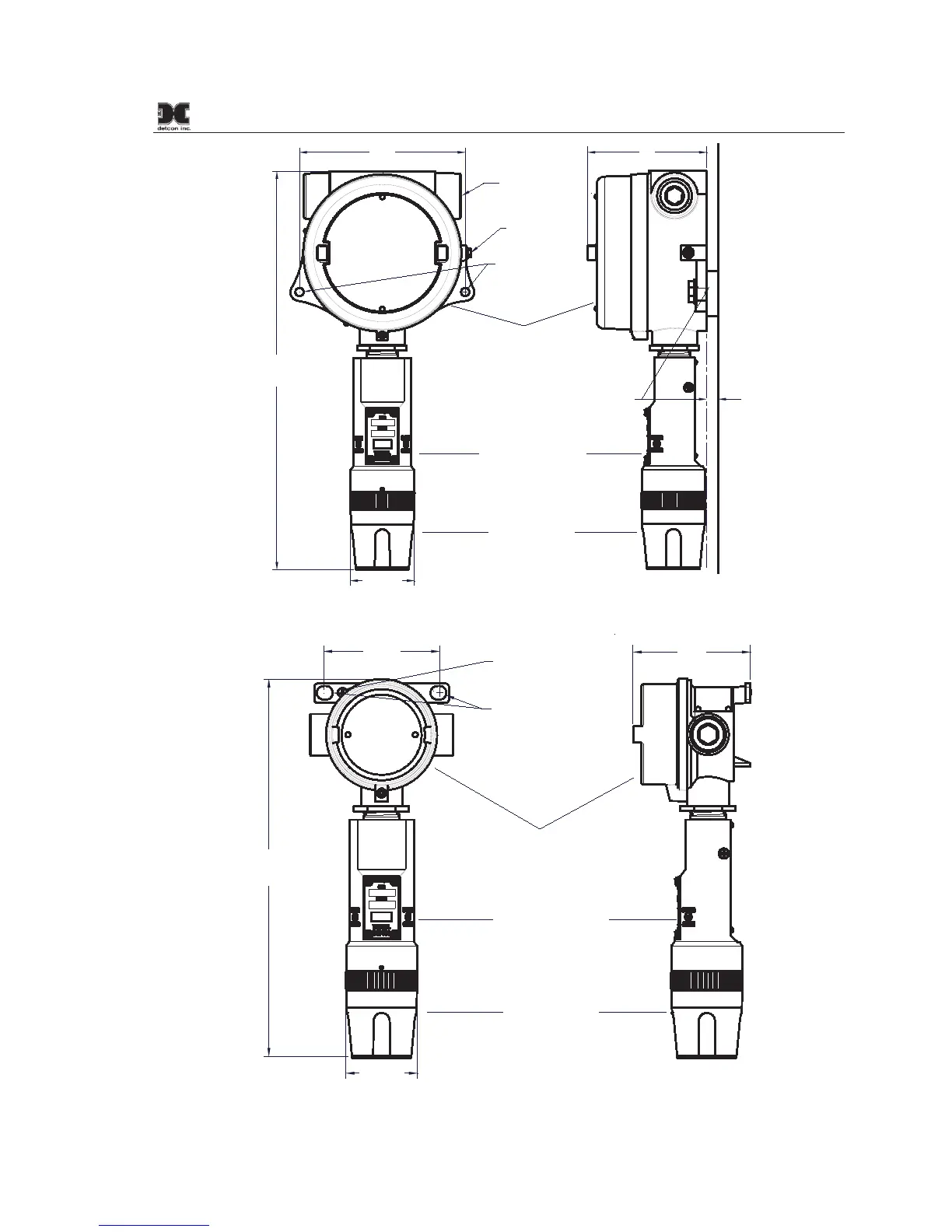

Figure 10 Outline and Mounting Dimensions (Aluminum Junction Box)
3.5"
Explosion Proof Enclosure
Junction-Box
Sensor Assembly
Splash Guard
(Detcon's Mini SS Junction-Box shown)
2.125"
3.45"
11.2"
Typ.
Mounting Holes
8-32 Thread
Ground Point
Ø0.4" x .475"
Figure 11 Outline and Mounting Dimensions (Mini Stainless Steel Junction Box)
