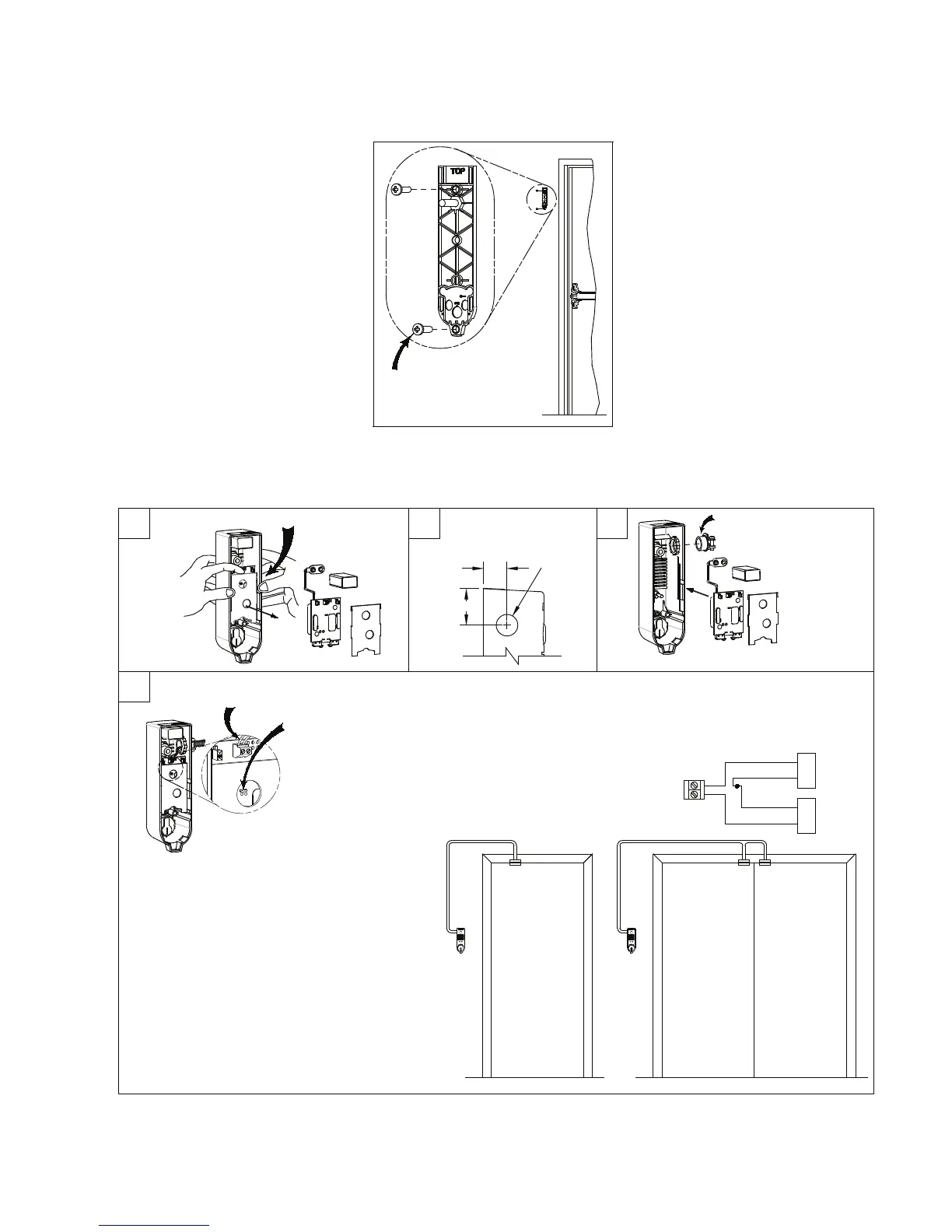

Install backplate with (2)
#1/4-20 or #14 screws
STEP 6: For SK models
BACKPLATE MOUNTING
1-1/2
Flex walls outward to remove guard
& board
1"
Drill 7/8 dia
(1) place
Recommended hole size
Common
Terminal
P/N: PP-5107
Closed
Mag
Switch 1
Switch 2
Mag
Diagram shown typical for two door magnetic switches:
MS-1039S & MS-1059S wire in series.
MS-2049 (Red wire not used)
Weatherized not available for SK installations
Closed contact when door is closed
NOTES:
1. If wire runs longer than
10 feet, must use twisted pair
2. 1/16" slotted jeweler
screwdriver required.
3. If internal contact is used
DO NOT cut jumper (JP1)
Disconnect power &
cut (JP1) jumper
(s
ee note 3 below)
STEP 7: Multi-door & SK function wiring connection
(if required)
(Recommended installation)
7a 7b 7c
7d
Screw wires to (P1) terminal block
(18ga Max wire dia) (not available on weatherized)
Reassembly:
Fitting or nut NOT included
Common
Closed
101321 Page 4
