DEVI devireg 131 - devireg Installation Instructions; Sensor Installation for devireg 130 & 132; Placement of devireg 130, 131, & 132

Away from doors and windows
(a t least 50 c m )
110 c m
2. Installation instructions
2.a Installation of sensor for devireg
™
130, and 132.
The floor sensor should be mounted in a 16 mm installation
pipe which is sealed at the end to prevent penetration of
concrete into the pipe. Minimum bending radius for the pipe is
50 mm.
The sensor cable must
be placed in between
two strings of the
heating cable.
4
To avoid cracks
in the concrete
floor you must
ensure that the
floor is completely
hardened before the
heat is switched on.

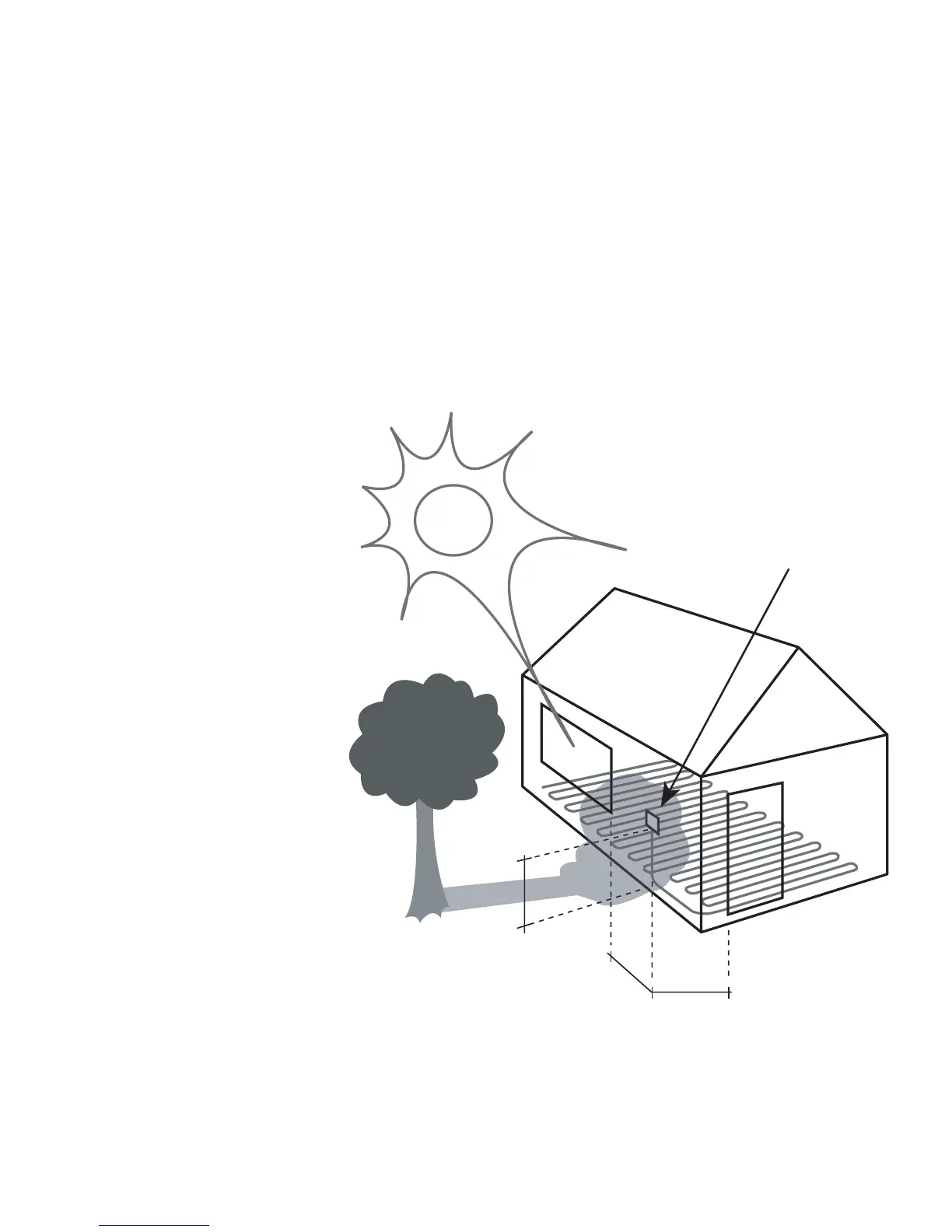

2.b Placement of
devireg
™
130, 131,
and 132.
Thermostat
