4

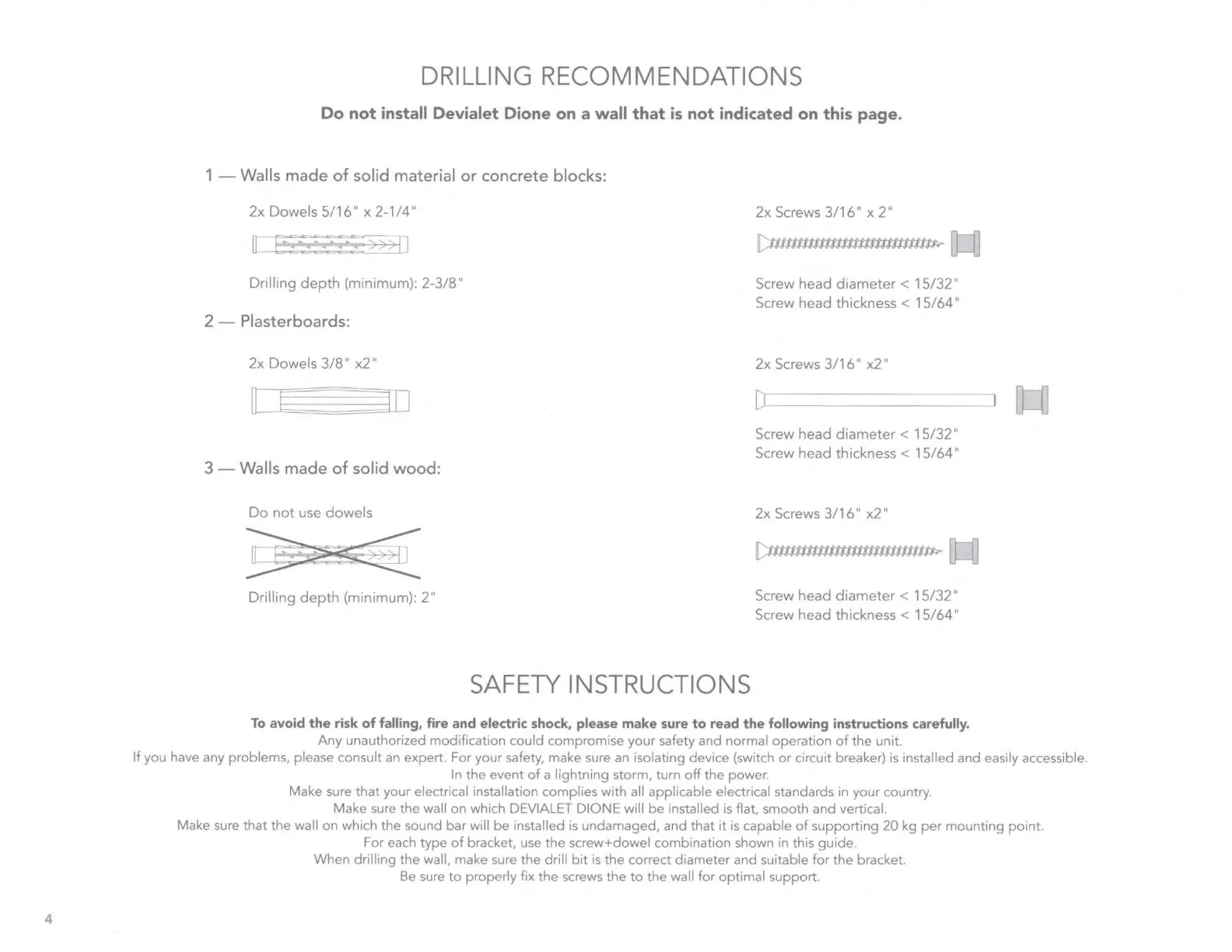

DRILLING
RECOMMENDATIONS
Do
not
install Devialet Dione on a wall
that
is
not
indicated on this page.
1 - Walls
made
of
solid material or concrete blocks:
2x
Dowels
5/16"
x
2-1/4"
E
;:s
:2
;s;:
> > > 1 J
Drilling
depth
(minimum):
2-3/8"
2 - Plasterboards:
2x
Dowels
3/8"
x2"
717
3 - Walls
made
of
solid
wood
:
Do
not
use
dowels
Drilling
depth
(minimum):
2"
SAFETY
INSTRUCTIONS
2x
Screws
3/16"
x
2"
~
tll
Screw
head
diameter<
15/32"
Screw
head
t
hickness<
15/64"
2x
Screws
3/16"
x2"
Screw
head
diameter<
15/32"
Screw
head
thickness<
15/64"
2x
Screws
3/16"
x2"
Screw
head
diameter
<
15/32"
Screw
head
thickness<
15/64"
To
avoid
the
risk
of
falling, fire and electric shock, please make sure
to
read
the
following instructions carefully.
Any unauthorized modification could compromise your safety and normal operation
of
the unit.
If
you have any problems, please consult
an
expert. For your safety, make sure an isolating device (switch
or
circuit breaker) is installed and easily accessible.
In
the
event
of
a lightning storm, turn
off
the
power.
Make sure
that
your electrical installation complies with all applicable electrical standards
in
your country.
Make sure the wall on which DEVIALET DIONE will
be
installed is flat, smooth and vertical.
Make sure
that
the wall
on
which the sound bar will be install
ed
is undamaged, and
that
it
is capable
of
supporting 20 kg
per
mounting point.
For each
type
of
bracket, use
the
screw+dowel combination shown in this
guide
.
When drilling the wall, make sure
the
drill
bit
is
the
correct diameter and suitable
for
the
bracket.
Be sure
to
properly fix
the
screws
the
to
the
wall for optimal support.
