SPECIFICATIONS
Maximum WORKING PRESSURE
Universal Hose Connection
Air supply P1 : 9 bar
Atomization air: 1 / 4‘’BSP/NPS
Material supply P2 : 14 bar
Cylinder air: 1 / 4’’BSP/NPS
At the air cap : 0,7 bar
Min Cylinder Operating pressure : 4,5 bar
Material: 3 / 8’’BSP/NPS
Maximum service temperature
:
40° C
WEIGHT
:
950 g
MATERIAL of construction
Gun body Aluminium
Gun head Aluminium = Insert SS
Tip Stainless steel
Needle Stainless steel
Fluid inlet Stainless steel

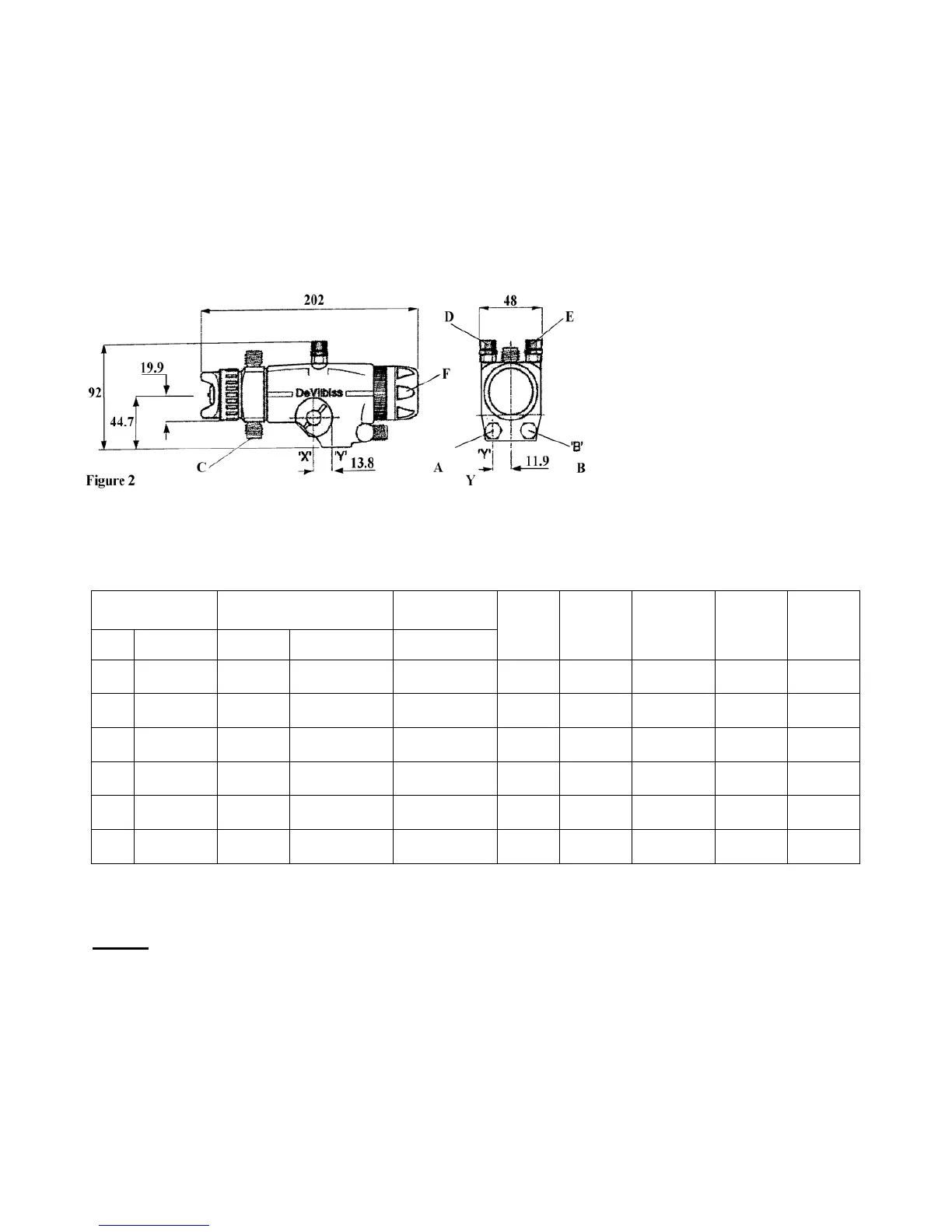

AIR CAP (2), FLUID TIPS (3) & NEEDLES (16) SELECTION GUIDE
Air Cap Ref. 2 Fluid Tip Ref. 3 Needle Ref. 16
size Order No. size Order No. Order No.
Air Flow
l/min
Approx.
Material
flow @
0.7bar
Viscosity
range
ml/min (see
Note *)
Spray
distance
Ford No. 4
cup
Maximum
pattern
mm
13 JGHV-16-13 0.85m GX JGHV-473-GX-K AGGS-420-GX-K 480 150-200 19-24 180 305 X 63
13 JGHV-16-13 1.0mm FY JGHV-473-FY-K AGGS-420-FY-K 480 200-240 19-24 180 305 X 63
13 JGHV-16-13
1.4mm
FF
JGHV-473-FF-K AGGS-420-FF-K 425 220-280 19-24 180 355 X 63
18 JGHV-16-18
1.4mm
FF
JGHV-473-FF-K AGGS-420-FF-K 480 150-500 15-30
305
495 X 90
162 JGHV-16-162
1.4mm
FF
JGHV-473-FF-K AGGS-420-FF-K 510 300-350 20-30 180 365 X 63
162 JGHV-16-162
2.0mm
DE
JGHV-473-DE-K AGGS-420-DE-K 510 400+ 30+ 180 365 X 63
*NOTE: If you need to pre-set the flow rate, when using the AGGS-522 spray gun, by jetting material without
any atomizing air it will be necessary to compensate for the back pressure. The high performance of the
AGGS-522 is obtained differently to most other HVLP guns and so it will be necessary to increase the jetted
flow by approx. 30% to give the required atomised Low rate.
