For Brad Nailer
1. Disconnect tool from air hose.
2. Release the magazine latch to open
the magazine.
3. Remove fasteners from magazine.

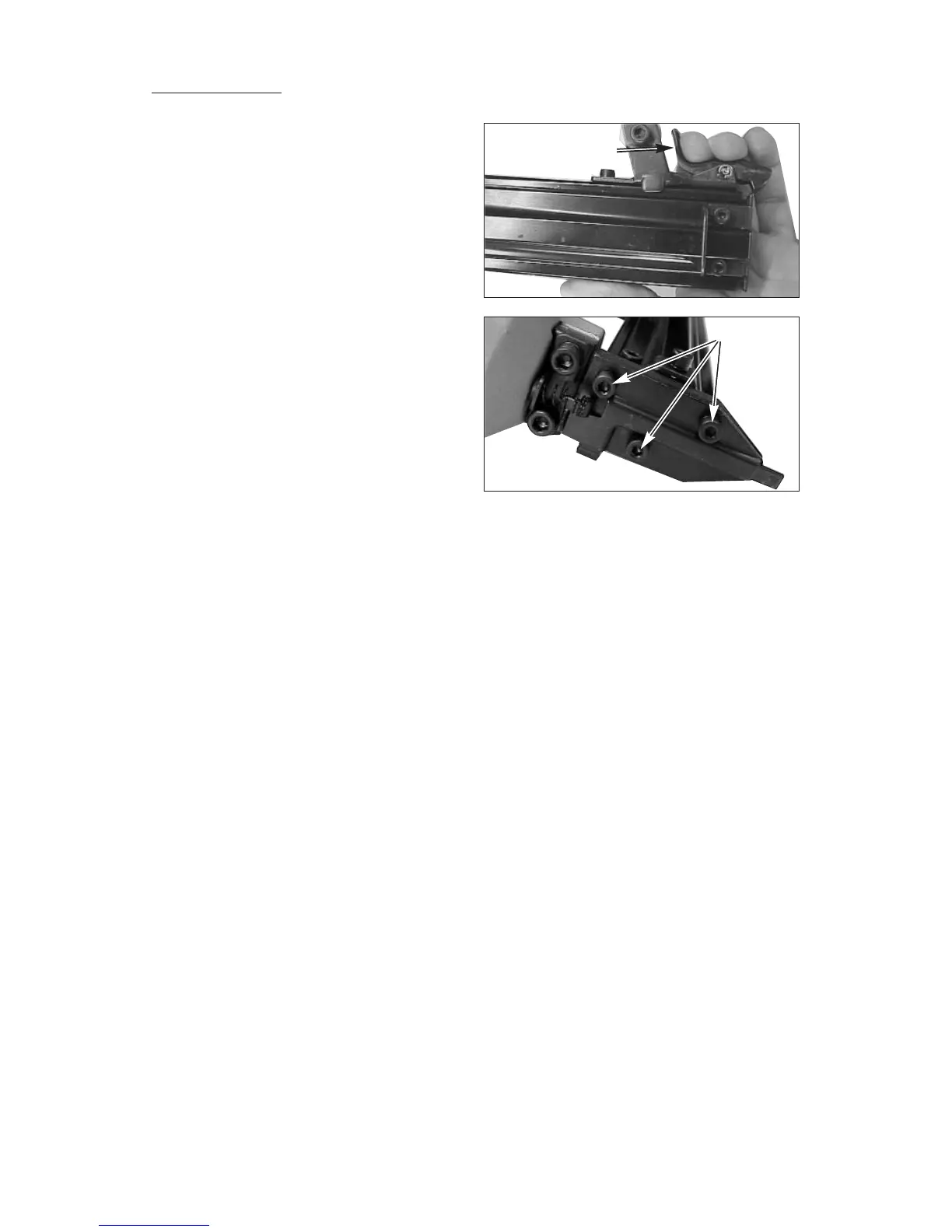

4. Remove the three screws on the
driver guide cover.
IMPORTANT: Before removing driver
guide cover note the orientation of all
parts.
6. Slide driver guide cover and driver
cover out until jammed fastener is
visible
7. Using pliers remove fasteners.
8. Slide drive guide cover and driver
cover into place and line up holes.
Replace screws.
9. Tighten screws securely.
10. Reload fasteners into magazine. Refer to Loading the Tool section in this
manual.
