11 - Eng
D24156

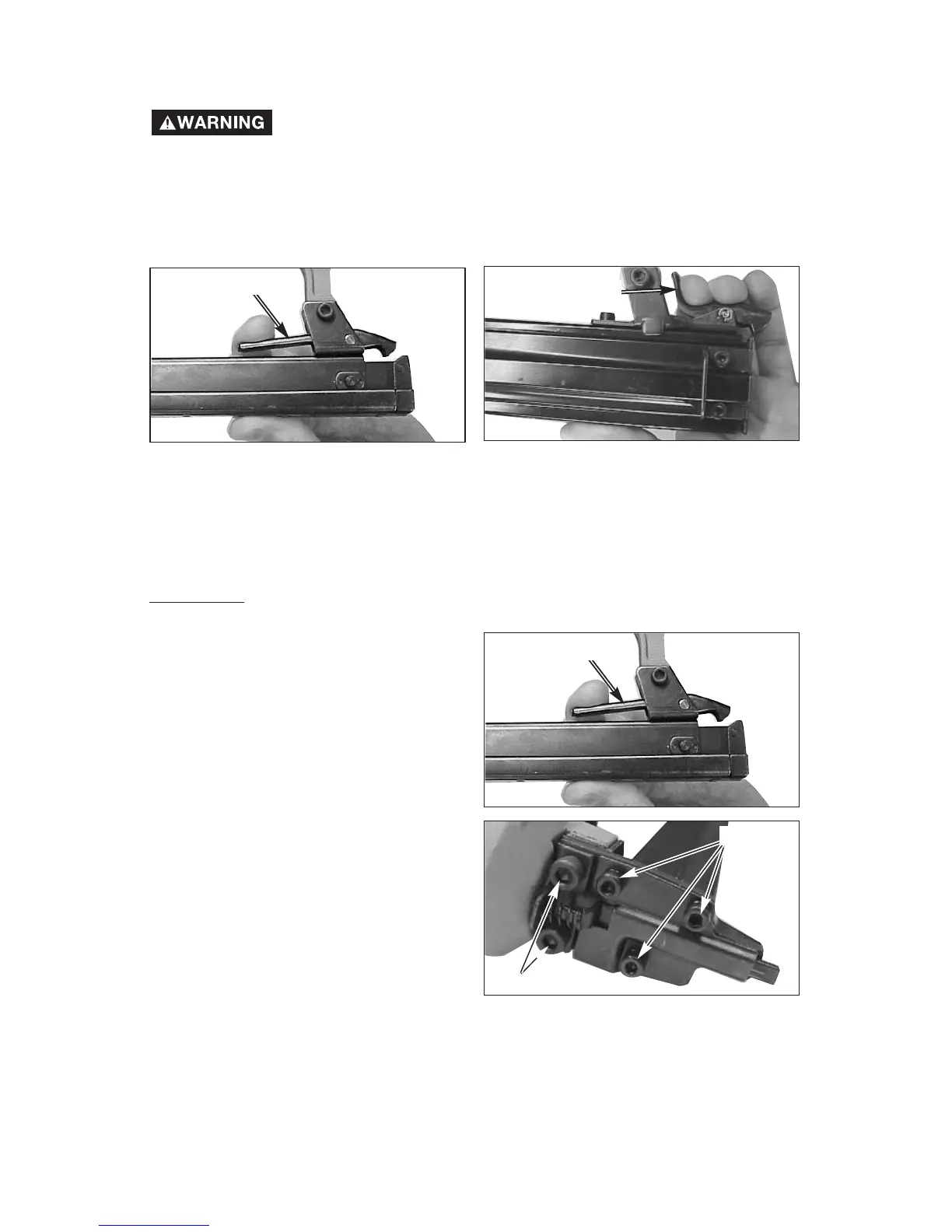

CLEARING A JAM FROM THE TOOL
Disconnect tool from air supply before adjusting, clearing jams,
servicing, relocating or during non-operation. Failure to do so
could result in serious injury or property damage.
FASTENER JAM INSIDE MAGAZINE:
1. Disconnect tool from air hose.
2. Release the magazine latch to open the magazine.
3. Remove jammed fasteners.
4. Reload fasteners into magazine. Refer to Loading the Tool section in this
manual.
Stapler
Brad Nailer
Magazine Latch
Magazine Latch
FASTENER JAMMED IN FASTENER DISCHARGE AREA:
For Stapler
1. Disconnect tool from air hose.
2. Release the magazine latch to open
the magazine.
3. Remove fasteners from magazine.
4. Loosen the three screws on the driver
guide cover.
5. Remove the two screws holding the
driver guide cover to the gun body.
IMPORTANT: Before removing driver
guide cover note the orientation of all
parts.
6. Slide driver guide cover out until
jammed fastener is visible
7. Using pliers remove fasteners.
8. Slide drive guide cover into place and
line up holes in spring retainer and
bracket. Replace screws.
9. Tighten all screws securely.
10. Reload fasteners into magazine. Refer to Loading the Tool section in this
manual.
Remove
Magazine Latch
Loosen
To Next Page
