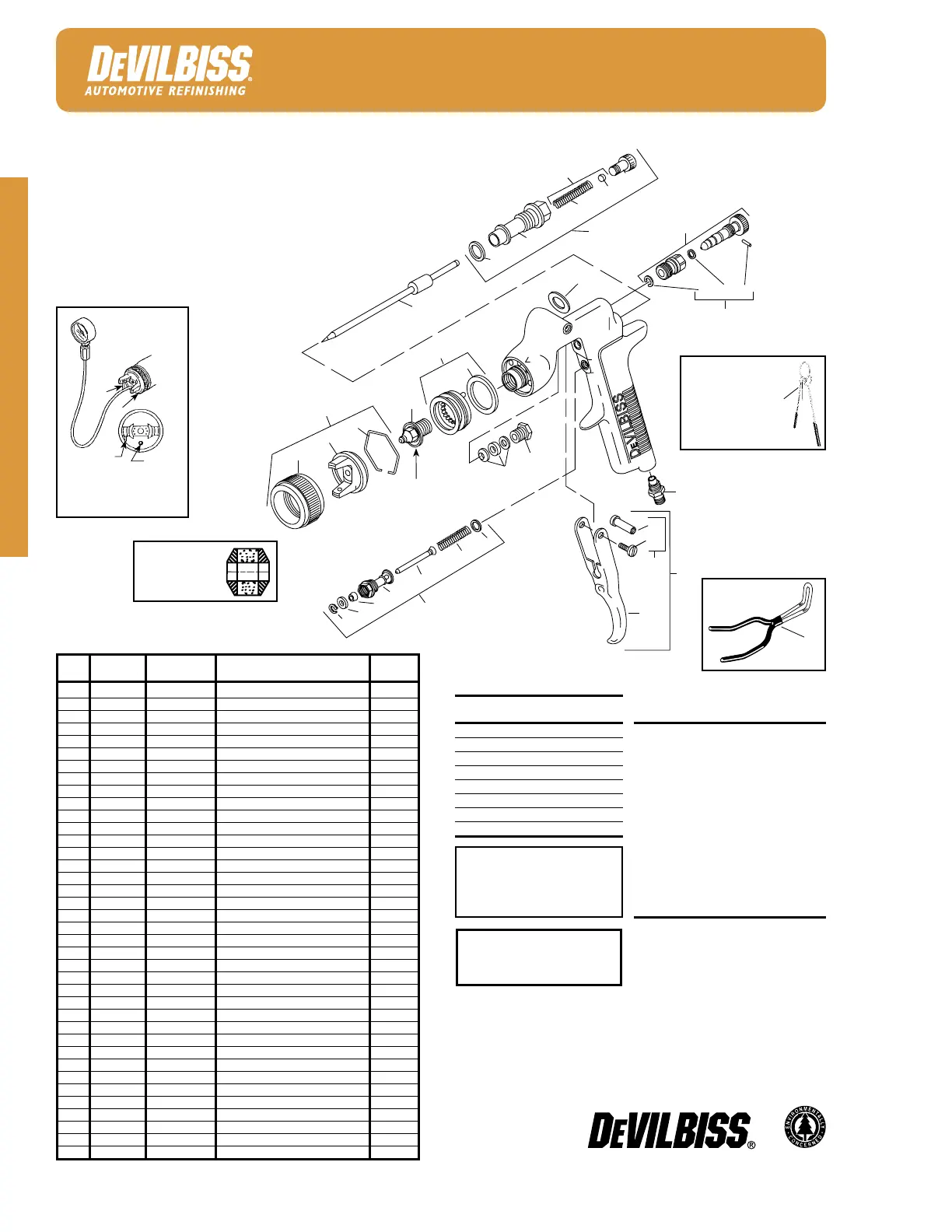

38 • PARTS BREAKDOWN
Refer to Service Bulletin: SB-2-168
Customer Service
1-800-445-3988
GTi
®
Millennium HVLP
Gravity Feed Spray Gun
Chart 1
Fluid Tip Fluid Tip Tip Size I.D.
Order No. Model No. in. mm
192124 GTI-213-12 .047 1.2
192134 GTI-213-13 .051 1.3
192044 GTI-213-14 .055 1.4
192135 GTI-213-15 .059 1.5
192045 GTI-213-16 .063 1.6
192046 GTI-213-18 .070 1.8
192047 GTI-213-20 .079 2.0
192132 GTI-213-22 .086 2.2
Ref. Ind. Parts
No. Order No. Model No. Description Required
1 — — Air Cap 1
2 191972 JGA-156-K10 Spring Clip (Kit of 10) 1
3 192042 GTI-3 Air Cap Retaining Ring 1
4 192136 GTI-407-2000 Air Cap (#2000) and Retaining Ring 1
5 See Chart 1 See Chart 1 Fluid Tip 1
•6 192179 GTI-33-K5 Baffle Seal (Kit of 5) 1
7 192178 GTI-425 Baffle Assembly 1
•8 192109 JGA-4035-K5 Packing (Kit of 5) 1
9 190893 34411-122-K10 Packing Nut 1
10 192050 GTI-404 Spreader Valve 1
11 192054 GTI-413 Fluid Needle 1
•12 190161 JGS-72-K10 Gasket Kit (Teflon) (Kit of 10) 2
13 — — Body Bushing 1
•14 — — Fluid Needle Spring 1
•15 — — Spring Pad 1
16 190894 MBD-19-K10 Spring and Pad (Kit of 10) 1
17 192043 GTI-414 Needle Adjusting Screw 1
18 192139 KK-5059 Bushing, Spring, Pad and Knob Kit 1
•19 — — Air Valve Spring 1
•20 — — Air Valve 1
21 — — Air Valve Body 1
•22 — — U Cup Seal 1
•23 — — Washer 1
•24 — — Snap Ring 1
25 190780 JGS-449-1 Air Valve Assembly 1
26 190281 P-MB-51 Air Inlet Nipple 1/4" NPS(M) 1
27 — — Trigger Stud Screw 1
28 — — Trigger Stud 1
29 190889 JGS-478 Stud and Screw Kit 1
30 — — Trigger 1
31 191943 JGS-477-1 Trigger Stud, Screw Kit 1
•32 192151 KGP-13-K5 Cup Gasket (Kit of 5) 1
•33 — — Retaining Clip 1
•34 — — Seal 1
•35 — — Pin 1
36 192229 GTI-428-K5 Clip, Seal & Pin Kit (5 Each) 1
37 192219 — Gun Holder, Coated 1
38 192140 KK-5060 Air Cap Cleaning Kit 1
• A quantity of necessary parts is included
in 192227 Repair Kit (KK-5058-2) for
complete gun repair and should be kept
on hand for service convenience.
Suffixes: -K5 designates kit of multiple
parts. Example: JGA-4035-K5 is a kit of 5
packings.
170156 (GTI-620G) HVLP Gravity Feed
•NOTE: Gun Repair Kit 192227 (KK-5058-2)
Contains:
Ref. No. Description Qty.
6 Baffle Seal 1
8 Packing 1
12 Gasket Kit 2
14 Fluid Needle Spring 1
15 Spring Pad 1
19 Air Valve Spring 1
20 Air Valve 1
22 U Cup Seal 1
23 Washer 1
24 Snap Ring 1
32 Fluid Cup Gasket 1
33 Retaining Clip 1
34 Seal 1
35 Pin 1
Setup Information by Paint Brand:
Request DeVilbiss paint company
recommendation chart or consult
your paint supplier specifications for
the material being sprayed.
NOTE: See page 44
for GFC-502 Cup parts
breakdown.
DETAIL #8
3-Piece Needle Packing
Assembly
17
15
14
13
12
16
18
10
32
26
Air Inlet Nipple
1/4" NPS(M)
(Torque to 15 ft.lbs.)
Use medium strength thread
sealant (i.e. Loctite 242 Blue or
equal) on threads.
27
28
29
30
31
11
3
1
2
5
7
4
Fluid Tip
(Torque to
15-20 ft.lbs.)
8
9
20
25
24
23
22
21
19
12
(See DETAIL #8)
192137 (GTI-5033-2000)
Air Cap Test Kit
Center Air
Port
Fan Air Port
5
4
192140 (KK-5060)
Air Cap Cleaning Kit
Consists of:
2 brushes & 1 wirepick.
Helps keep air cap clean
and performing properly.
38
6
37
33 34 35
36
