DeVilbiss GTi Millennium - Spray Gun Parts and Accessories; Comprehensive Parts List; Accessory Overview

Page 4 SB-2-168-K

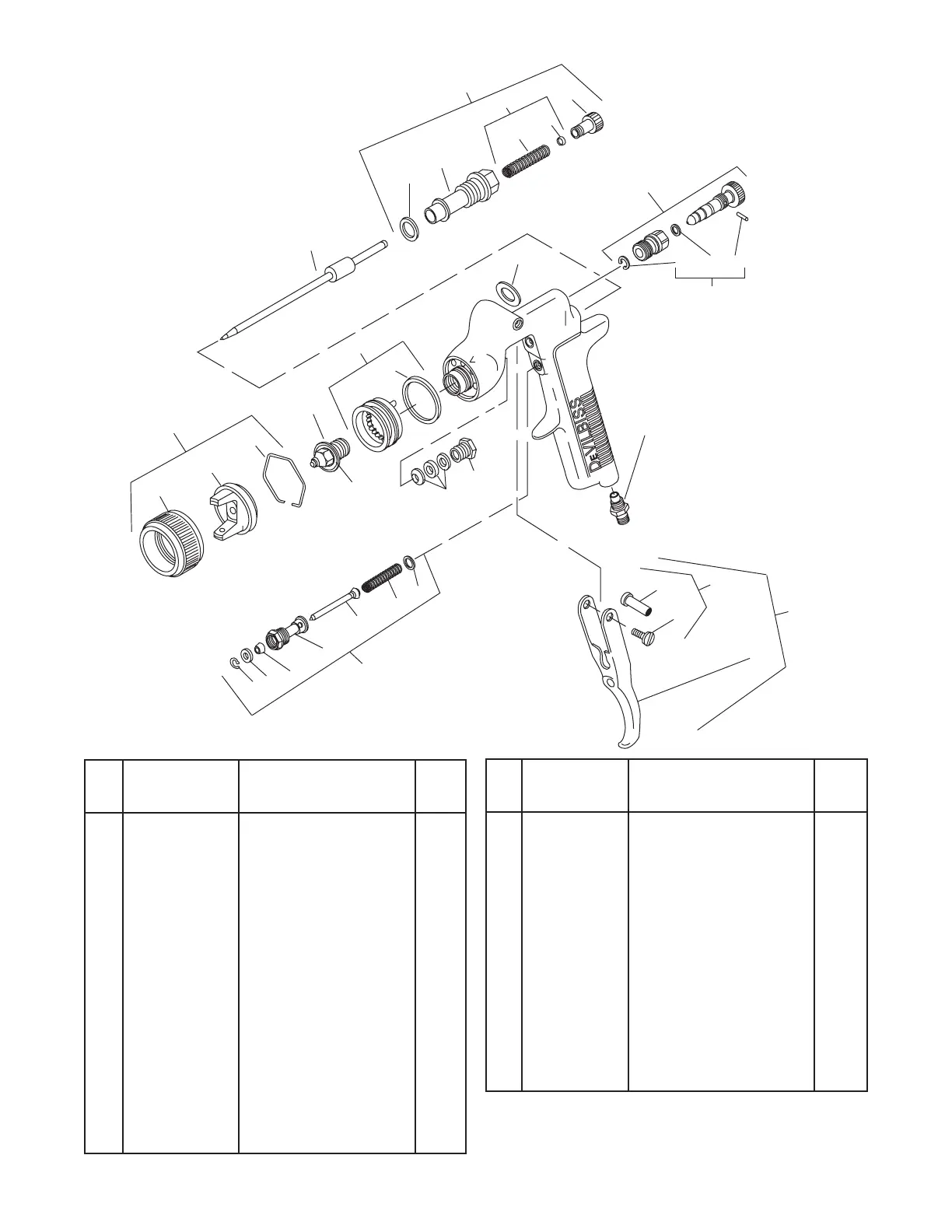

PARTS LIST
Ind.
Ref. Replacement Parts
No. Part No. Description Req.
1 --- Air Cap 1
2 JGA-156-K10 Spring Clip (Kit of 10) 1
3 GTI-3 Air Cap Retaining Ring 1
4 GTI-407-2000 Air Cap & Retaining Ring 1
5 See Chart 1 Fluid Tip 1
6 GTI-425 Baffle Assembly 1
•7 GTI-33-K5 Baffle Seal (Kit of 5) 1
•8 JGA-4035-K5 Packing (Kit of 5) 1
9 34411-122-K10 Packing Nut 1
10 GTI-404 Spreader Valve 1
11 GTI-413 Fluid Needle 1
•12 JGS-72-K10 Gasket Kit (Teflon) 2
(Kit of 10)
13 --- Body Bushing 1
•14 --- Fluid Needle Spring 1
•15 --- Spring Pad 1
16 MBD-19-K10 Spring and Pad 1
(Kit of 10)
17 GTI-414 Needle Adjusting Screw 1
18 KK-5059 Bushing, Spring, Pad 1
and Knob Kit
•19 --- Air Valve Spring 1
Ind.
Ref. Replacement Parts
No. Part No. Description Req.
•20 --- Air Valve 1
21 --- Air Valve Body 1
•22 --- U-Cup Seal 1
•23 --- Washer 1
•24 --- Snap Ring 1
25 JGS-449-1 Air Valve Assembly 1
26 P-MB-51 Air Inlet Nipple 1
1/4" NPS(M)
27 --- Trigger Stud Screw 1
28 --- Trigger Stud 1
29 JGS-478 Stud and Screw Kit 1
30 --- Trigger 1
31 JGS-477-1 Trigger, Stud, Screw Kit 1
•32 KGP-13-K5 Cup Gasket (Blue) (Kit of 5) 1
•33 --- Retaining Clip 1
•34 --- Seal 1
•35 --- Pin 1
36 GTI-428-K5 Clip, Seal & Pin Kit (5 each) 1
• KK-5058-2 Gun Repair Kit includes a quantity of necessary parts.
Sufixes -K5, -K10 designate kits of multiple parts.
Example: JGA-4035-K5 is a kit of 5 packings.
4
2
5
8
3
*26 Air Inlet Nipple
1/4" NPS(M)
(Torque to 15 ft.lbs.)
9
Fluid Tip
(Torque to
15-20 ft.lbs.)
1
23
22
21
20
19
12
24
31
29
25
30
28
27
18
17
14
13
15
16
12
11
32
Use medium strength thread
sealant (i.e. Devcon #2242
Blue, or equal) on threads
7
10
6
33 34 35
36
