DeVilbiss JGA-504 - Parts List

Page 4 SB-2-259-B

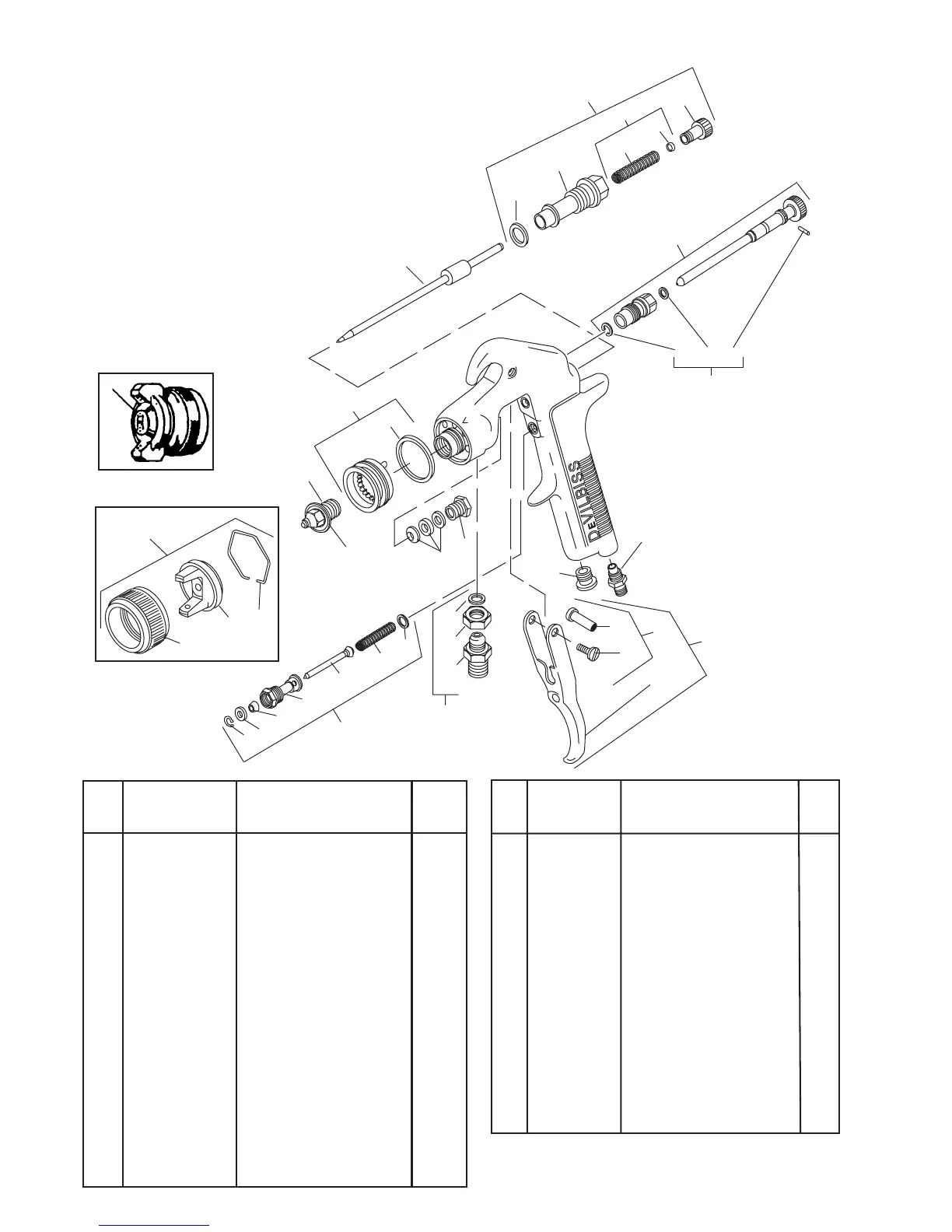

PARTS LIST
Ind.
Ref. Replacement Parts
No. Part No. Description Req.
1 --- Air Cap 1
2 JGA-156-K10 Spring Clip (Kit of 10) 1
3 GTI-3 Air Cap Retaining Ring 1
4 See Chart 1 Air Cap & Retaining Ring 1
5 See Charts 1 & 2 Fluid Tip 1
6 GTI-425 Baffle Assembly 1
•7 GTI-33-K5 Baffle Seal (Kit of 5) 1
•8 JGA-4035-K5 Packing (Kit of 5) 1
9 34411-122-K10 Packing Nut 1
10 GTI-405 Spreader Valve Assembly 1
11 See Chart 1 Fluid Needle 1
•12 JGS-72-K10 Gasket Kit (PTFE) 2
(Kit of 10)
13 --- Body Bushing 1
•14 --- Fluid Needle Spring 1
•15 --- Spring Pad 1
16 MBD-19-K10 Spring and Pad 1
(Kit of 10)
17 GTI-414 Needle Adjusting Screw 1
18 KK-5059 Bushing, Spring, Pad and 1
Knob Kit
•19 --- Air Valve Spring 1
•20 --- Air Valve 1
21 --- Air Valve Body 1
Ind.
Ref. Replacement Parts
No. Part No. Description Req.
•22 --- U Cup Seal 1
•23 --- Washer 1
•24 --- Snap Ring 1
25 JGS-449-1 Air Valve Assembly 1
26 P-MB-51 Air Inlet Nipple 1
1/4" NPS(M)
27 --- Trigger Stud Screw 1
28 --- Trigger Stud 1
29 JGS-478 Stud and Screw Kit 1
30 --- Trigger 1
31 JGS-477-1 Trigger, Stud & Screw Kit 1
•32 --- Fluid Inlet Gasket (PTFE) 1
33 --- Locknut 1
34 --- Fluid Inlet Adapter 1
35 JGA-4042 Fluid Inlet, Gasket, Nut Kit 1
•36 --- Retaining Clip 1
•37 --- Seal 1
•38 --- Pin 1
39 GTI-428-K5 Clip, Seal & Pin Kit (5 each) 1
40 --- Plug 1
• KK-5058-2 Gun Repair Kit includes a quantity of necessary parts.
Suffixes -K5, -K10 designate kits of multiple parts.
Example: JGA-4035-K5 is a kit of 5 packings.
6
4
2
8
24
3
29
31
*26 Air Inlet Nipple
1/4" NPS(M)
(torque to 15 ft. lbs.)
16
17
14
9
11
10
*34
32
Fluid Tip
(Torque to
15-20 ft. lbs.)
33
1
15
12
13
18
23
22
21
20
19
12
25
28
27
30
*Use medium strength
thread sealant (i.e.
Devcon #2242 Blue,
or equal) on threads.
35
Fluid Inlet Nipple
3/8" NPS(M)
(torque to 20-25 ft. lbs.)
7
5
36 37 38
39
OR
40
4
