SB-2-252-P (12/2017) 7 / 8
EN
www.carlisleft.com
NIOSH-Certified, for
respiratory protection
in atmospheres not
immediately dangerous
to life.
TGC-545 (Aluminum) TLC-555
(Non-stick Lined)
TSC-595 S.S. 2 Qt. Drip-Free
Suction Cup
Provides greater
degree of control
over cup fluid
pressure.
Millennium 3000
Twin Cartridge
Paint Spray Respirator
KB-555 (Aluminum) &
KB-545-SS (S/S) 2 qt. Pressure
Feed Cup With Regulator
Cup has a unique, two position
valve which permits selection of
either a drip-free or conventional
open vent mode.
JGA-444 Fluid Tube
This tube combines the fluid and air hoses at gun
handle preventing dragging hoses over work, twisting
line and improving overall gun handling.
TLC-576 Aluminum Cup
(Non-stick Lined) &
TSC-591Stainless Steel Cup
1 Qt. pressure feed cups.
3/8" NPS (F), cam lock lid.
Requires KK-4980 air regulator
kit.
Quick Disconnect Approved for
HVLP Guns (Air)
High Flow Ball and Ring Type
HC-4419 1/4"
NPS(F)
HC-4699
1/4" NPT(M)
HC-1166
1/4" NPT(M)
HC-4700
1/4" NPT(F)
Enables user to control
and reduce air usage at
the gun. Ideal for low
pressure spraying.
P-H-5516 Air
Adjusting Valve
HARG-510 Air
Regulator
Use to maintain nearly
constant outlet pressure
despite changes in
inlet pressure and
downstream flow.
HD-503
SolventSaver™
Hose/Gun Cleaner
Used when abrasive
materials are sprayed
(i.e. porcelain enamel).
Use (2) JGA-52 packings
in place of JGV-463
packing.
JGA-52-K10
Leather Packings
VS-531 Low
Pressure
Strainers
83GZ-5200
SolventSaver™
Hose/Gun Cleaner
GTI-415 Air
Adjusting Valve
Installs into gun to
enable user to control
and reduce air usage
at the gun. Replaces
JGA-132 plug.
Spray Gun Lube
SSL-10 (2 oz.
bottle)
Compatible with all
paint materials:
contains no silicone or
petroleum distillates
to contaminate paint.
MSDS sheet available
upon request.
2 Qt Hose/Gun Cleaner
used to clean the
inside of hose, fluid
passageways of gun &
other paint equipment.
The VS-531 Low
Pressure Fluid Strainer
provides a final filter
for trapping foreign
particles in the paint
supply.
2 Gallon galvanized tank
used to clean the inside
of hose and material
passages of the gun.

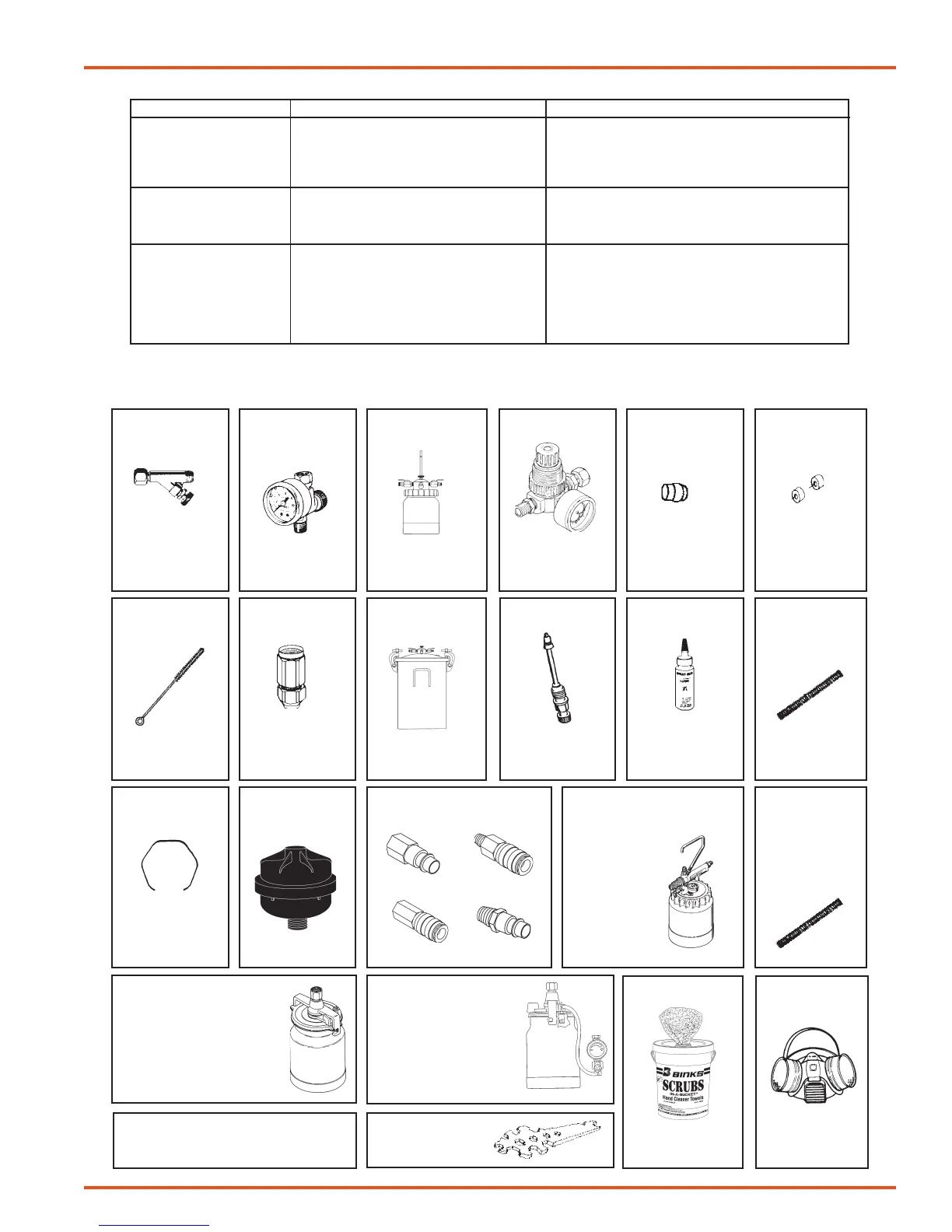

ACCESSORIES
Provides reduced
spring force (4 lbs.
verses 6 lbs.) for easier
trigger pull.
MSA-4-K10 Fluid
Needle Spring
(replaces MBD-19)
Joins any single piece
DeVilbiss air cap MBC-
368 or MSA-1 retaining
ring. Helps prevent
parts loss and provides
easier assembly.
JGA-156-K10
Spring Clip
HAF-507
Whirlwind™
In-Line Air Filter
Removes water, oil, and
debris from the air line.
This 3 piece packing
can be used in place
of Ref. (18) JGV-463, 2
piece packing.
JGA-4035-K5
Optional 3 Piece
Packings
HAV-500 or
HAV-501
Adjusting Valve
(HAV-501 SHOWN)
HAV-500 does not have
pressure gage. Use to
control air usage at gun.
42884-214-K5 3/8"
42884-215-K10 5/8"
Cleaning Brushes
These brushes are
helpful in cleaning
threads and recesses
of gun body.
WR-103 Wrench
Contains all necessary
tip, hose and nut sizes
used on or with gun.
Scrubs® are a pre-
moistened hand cleaner
towel for painters.
No water is needed.
29-3100 Scrubs
®
Hand Cleaner Towels
JGA-191-K2
Heavy Duty
Spring
(for zinc rich
materials)
TROUBLESHOOTING (continued)
CONDITION CAUSE CORRECTION
Runs and sags Too much material flow. Adjust gun or reduce fluid pressure.
Material too thin. Mix properly or apply light coats.
Gun tilted on an angle, or gun motion Hold gun at right angle to work and adapt to
too slow. proper gun technique.
Thin, sandy coarse finish Gun too far from surface. Check distance. Normally approximately 8".
drying before it flows out Too much air pressure. Reduce air pressure and check spray pattern.
Improper thinner being used. Follow paint manufacturer's mixing instructions.
Thick, dimpled finish Gun too close to surface. Check distance. Normally approximately 8".
"orange peel". Too much material coarsely atomized. Increase air pressure or reduce fluid pressure.
Air pressure too low. Increase air pressure or reduce fluid pressure.
Improper thinner being used. Follow paint manufacturer's mixing instructions.
Material not properly mixed. Follow paint manufacturer's mixing instructions.
Surface rough, oily, dirty. Properly clean and prepare surface.
