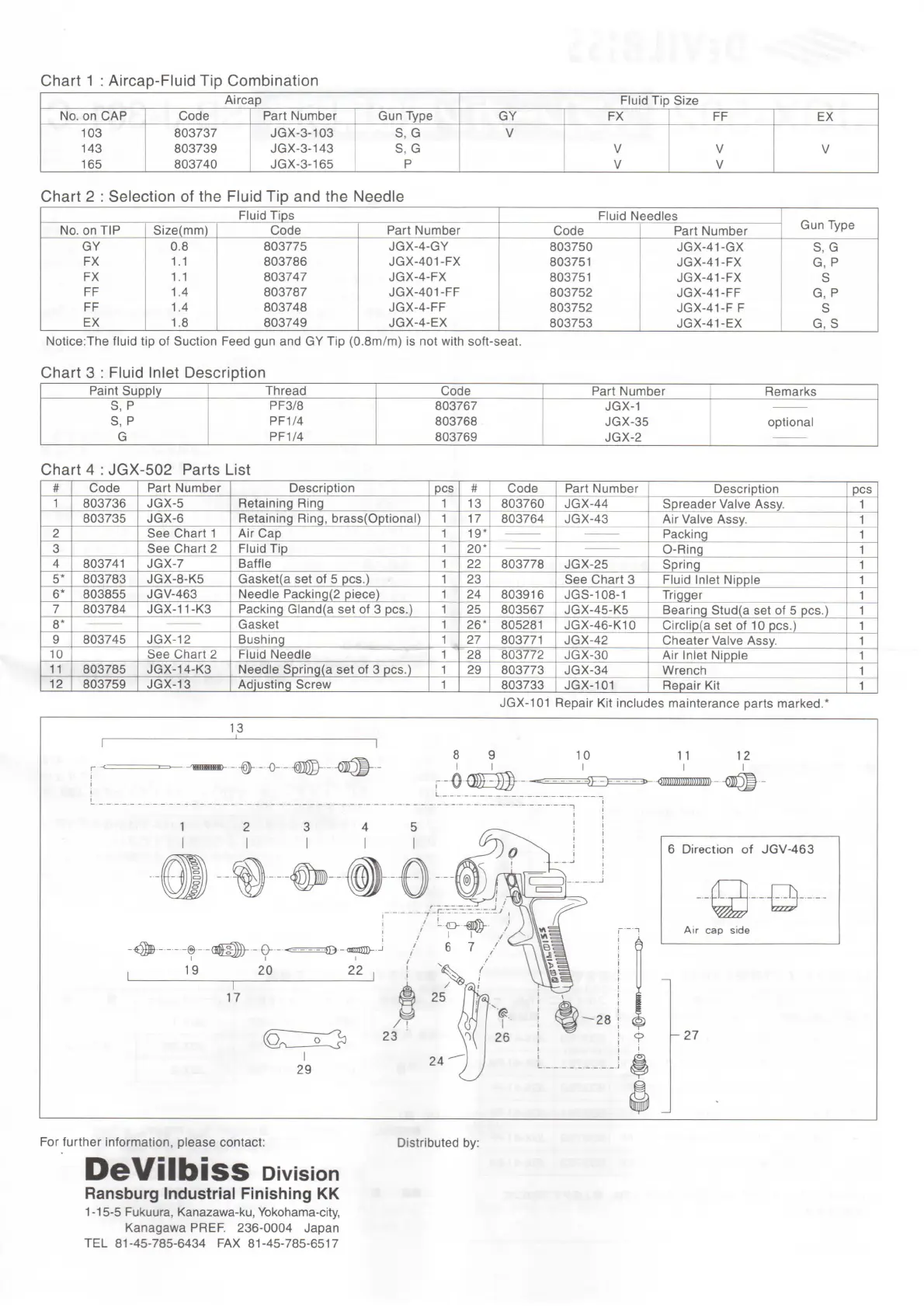

DeVilbiss JGX-502 - Aircap-Fluid Tip Combination; Fluid Tip and Needle Selection; Fluid Inlet Description; JGX-502 Parts List

Chart 1 : Aircap-Fluid Tip Combination
Aircap
Fluid Tip Size
No. on CAP Code Part Number Gun Type GY
FX FF
EX
103
803737
JGX-3-103
S, G
V
143 803739
JGX-3-143
S, G V V
V
165 803740 JGX-3-165 P
V V
Chart 2 : Selection of the Fluid Tip and the Needle
Fluid Tips
Fluid Needles
Gun Type
No. on TIP Size(mm) Code Part Number
Code
Part Number
Gun Type
GY
0.8 803775
JGX-4-GY
803750 JGX-41-GX
S, G
FX 1.1
803786
JGX-401-FX
803751 JGX-41-FX
G, P
FX 1.1 803747 JGX-4-FX
803751
JGX-41-FX
S
FF 1.4 803787 JGX-401-FF
803752
JGX-41-FF
G, P
FF
1.4
803748 JGX-4-FF
803752
JGX-41-F F
S
EX
1.8
803749 JGX-4-EX
803753 JGX-41-EX
G, S
Notice:The fluid tip of Suction Feed gun and GY Tip (0.8m/m) is not with soft-seat.
Chart 3 : Fluid Inlet Description
Paint Supply Thread Code
Part Number
Remarks
S, P PF3/8 803767 JGX-1
S, P
PF1/4
803768
JGX-35
optional
G PF1/4 803769
JGX-2
Chart 4 : JGX-502 Parts List
# Code Part Number Description
pes #
Code Part Number
Description
pes
1
803736
JGX-5 Retaining Ring 1
13 803760 JGX-44
Spreader Valve Assy.
1
803735 JGX-6 Retaining Ring, brass(Optional) 1 17
803764
JGX-43 Air Valve Assy.
1
2 See Chart 1 Air Cap 1 19* Packing 1
3 See Chart 2 Fluid Tip 1 20* O-Ring 1
4 803741 JGX-7 Baffle 1 22
803778
JGX-25
Spring
1
5* 803783 JGX-8-K5 Gasket(a set of 5 pes.) 1 23
See Chart 3
Fluid Inlet Nipple
1
6* 803855 JGV-463 Needle Packing(2 piece) 1 24
803916
JGS-108-1 Trigger
1
7 803784 JGX-11-K3 Packing Gland(a set of 3 pes.) 1 25 803567
JGX-45-K5 Bearing Stud(a set of 5 pes.)
1
8* Gasket 1 26*
805281
JGX-46-K10 Circlip(a set of 10 pes.)
1
9 803745 JGX-12 Bushing 1 27
803771 JGX-42
Cheater Valve Assy.
1
10 See Chart 2 Fluid Needle 1 28 803772
JGX-30 Air Inlet Nipple
1
11 803785 JGX-14-K3 Needle Spring(a set of 3 pes.) 1 29
803773
JGX-34 Wrench
1
12 803759 JGX-13 Adjusting Screw
1 803733
JGX-101 Repair Kit
1
JGX-101 Repair Kit includes mainterance parts marked.*
13
For further information, please contact: Distributed by:
DeVilbiss Division
Ransburg Industrial Finishing KK
1-15-5 Fukuura, Kanazawa-ku, Yokohama-city,
Kanagawa PREF. 236-0004 Japan
TEL 81-45-785-6434 FAX 81-45-785-6517
