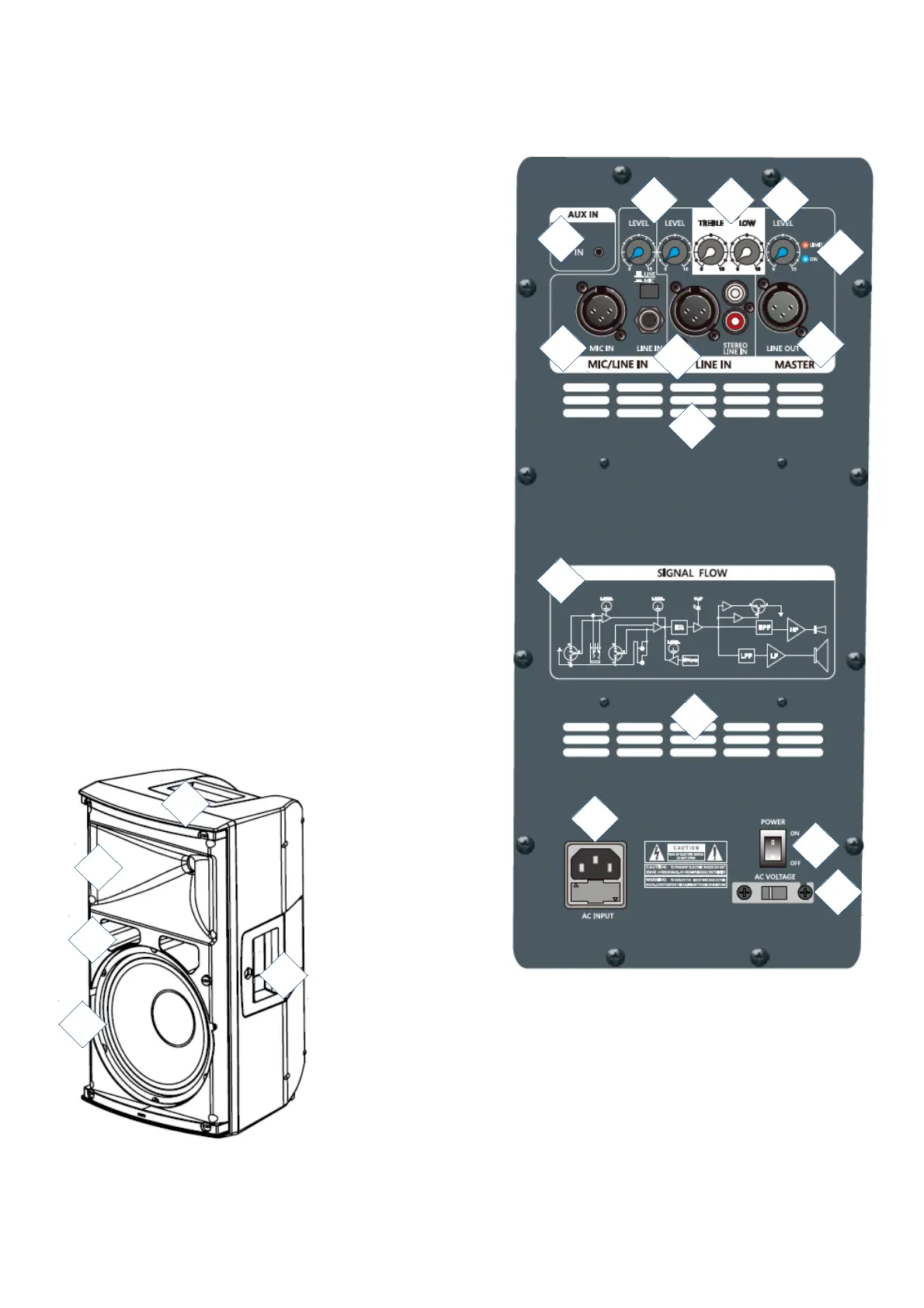

Guidelines and operation of this device
1. TRS mini jack line input, for smartphones,
laptops, tablets, MP3 players etc.
(not equipped with a volume control)
2. microphone input via balanced 3-pin XLR or mono
line input via balanced TRS jack plug
(equipped with mic/line switch)
3. balanced mono 3-pin XLR line input or
unbalanced stereo RCA line input
4. mix line output via balanced mono 3-pin XLR
5. volume controls for mic and line inputs
6. 2-band tone control (bass / treble)
7. master volume control
8. CLIP and Power LED indicators
9. signal flow diagram
10. ventilation slots
11. on/off switch
12. voltage switch (set to 230V as standard)
13. power input via IEC C14 with fuse holder
14. handle
15. high tone speaker (compression driver) with horn
16. bass reflex ports
176. low tone speaker
The information in this user manual is subject to change at any time without notice.
Version: 1.0 Date of creation and author's initials 23-09--2017 RV Revision date and author's initials: -
