AERO-TRI BAR
Notice that the diameters of the six holes in the arm rest are each larger than
the diameter of the bolt shaft. This allows for fine-tuning to achieve desired
arm pad angle. See below for illustrations.

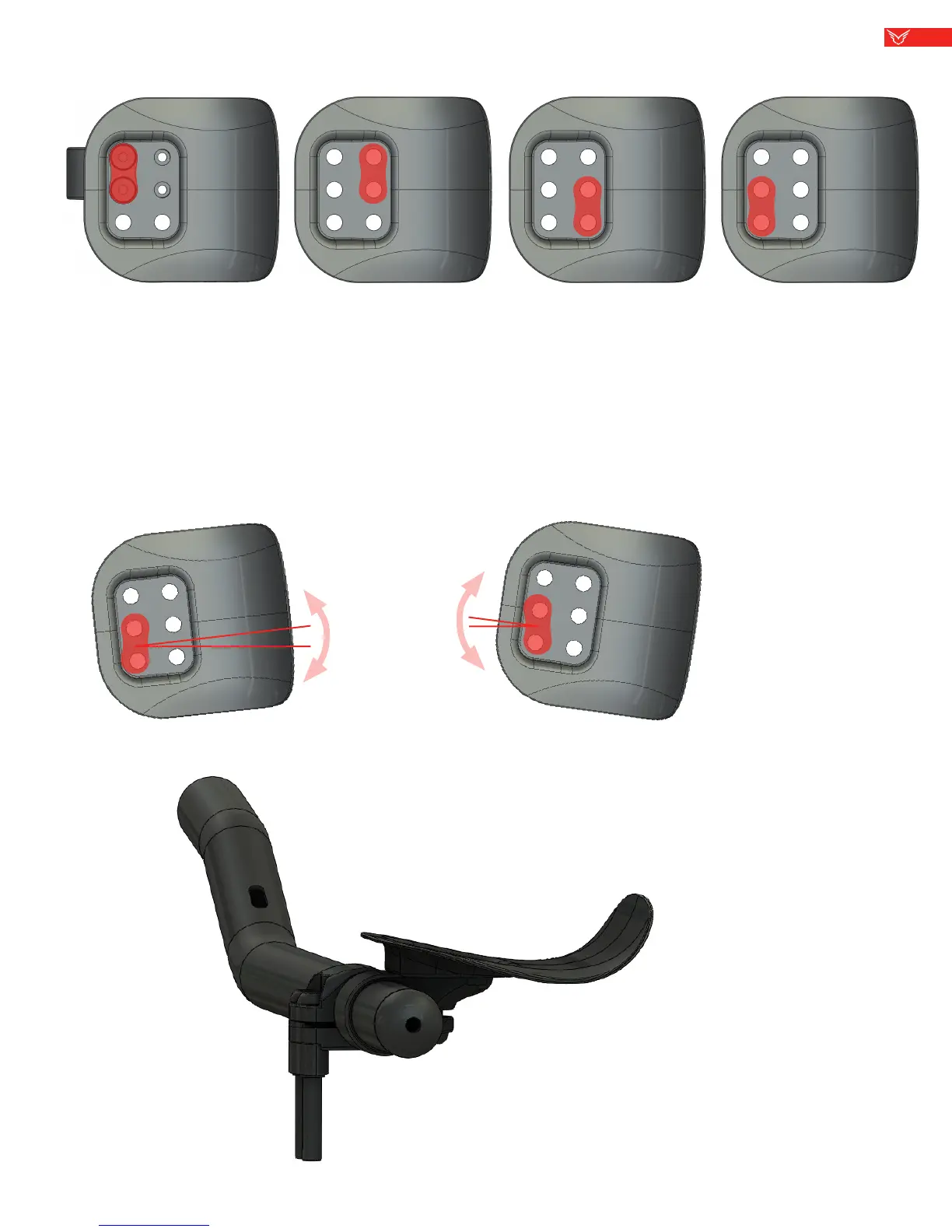

Possible armrest configurations
Counter-Clockwise Rotation
Clockwise Rotation
The image to the left shows the stack assembly and armrest
assembly properly mounted on an extension (actual placement
of assemblies in relation to the extension will vary).
