devox AERO-TRI BAR - Step 1: Stack Height & Riser Assembly

AERO-TRI BAR
- One extension
- Two top bolts (55mm)
- One extension bracket
- One bracket spacer*
- Stack height spacers (5mm + 10mm)
- Fit washers (6)**
- One threaded lower nut
Fixed Bridge

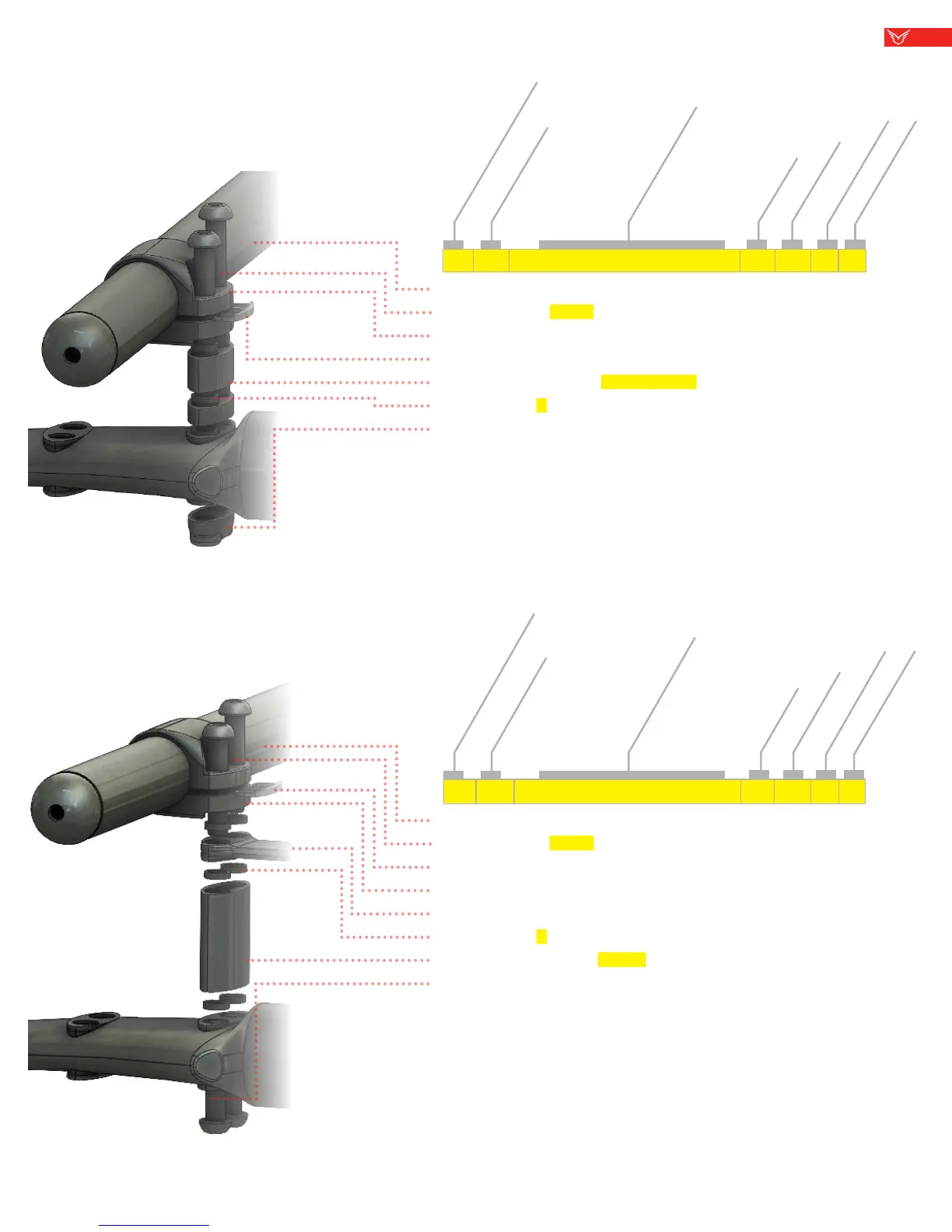

Option A. The diagram to the left is a low-stack configuration
and does NOT require the narrow fixed bridge. Use this
example to assist in building low-stack assemblies. Tighten
the 2 bolts to 6Nm.
Step 1: Stack Height & Riser Assembly
Option A
X
36 X 5mm +10mm
4 55 1
Threaded Spacer
Inner Stack Height (c-c)
Fit Washers Top Bolts (mm) Bottom Bolts (mm) Threaded Lower Nut
Non-threaded Config.
Option B. The diagram to the left is a high-stack configuration
and does require the narrow fixed bridge and a total of
4 bolts. 2 of the bolts enter the underside of the basebar
and thread into the threaded spacer, and 2 top bolts enter
the extension bracket and thread into the threaded spacer.
Tighten all 4 bolts to 6Nm.
- One Extension
- Two top bolts (30mm)
- One bracket spacer *
- One extension bracket
- Narrow fixed bridge
- Fit washers (6)**
- Threaded spacers (30mm)
- Bottom bolts
Threaded Spacer
Inner Stack Height (c-c)
Fit Washers
Top Bolts (mm)
Bottom Bolts (mm)
Non-threaded Config.
56 30
6 30 30
Option B
X
Threaded Lower Nut
