devox AERO-TRI BAR - Step 2: Arm Rest Assembly

To complete the arm rest assembly, you will need the following:
- Two 12mm arm rest bolts
- One arm rest washer
- One arm rest
- One arm rest bracket
- One 15mm bolt
Begin by taking an arm rest bracket and thread a 15mm bolt into the
underside and finger-tighten to keep in place. Place the arm rest washer and
use two arm rest bolts to fasten in desired position. Finally, slip the arm rest
assembly over the extension and tighten the 15mm bolt to 7Nm.
See diagram on following page for the four acceptable configurations.
Step 2: Arm Rest Assembly
10

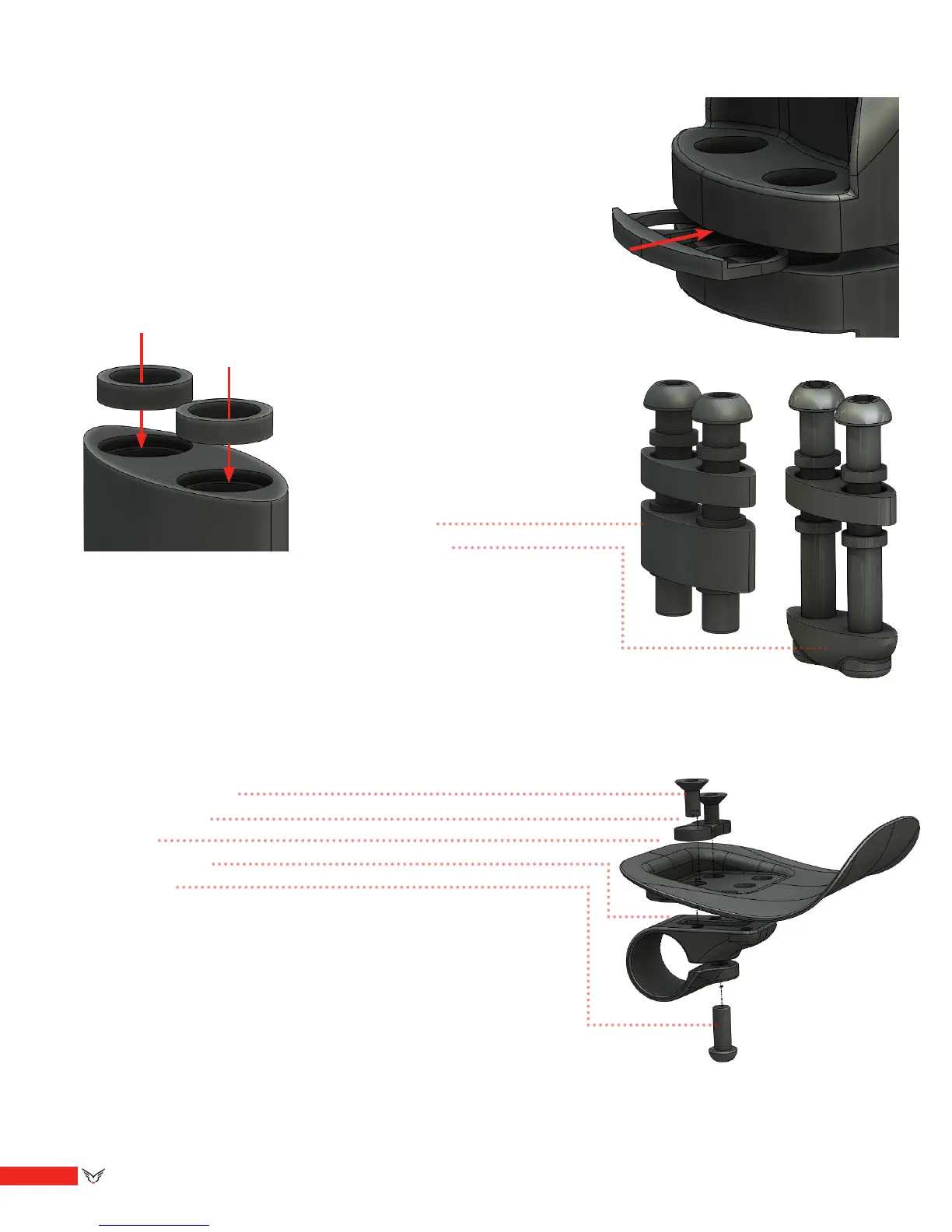

*BRACKET SPACER
Insert the bracket spacer into the slot located on the extension bracket, making
sure to align the holes and leave the long, curved edge flush with the edge of
the extenion bracket slot as shown in the illustration to the right.
**FIT WASHERS
Begin with pressing the fit washers into the recessed holes.
Sandwich the fit washer between the
bolt, spacer/bridge and a threaded
spacer. Tighten the bolt until the fit
washer is pressed in. Unthread the
bolt and assemble.
Threaded spacer
Threaded lower nut
