8
English

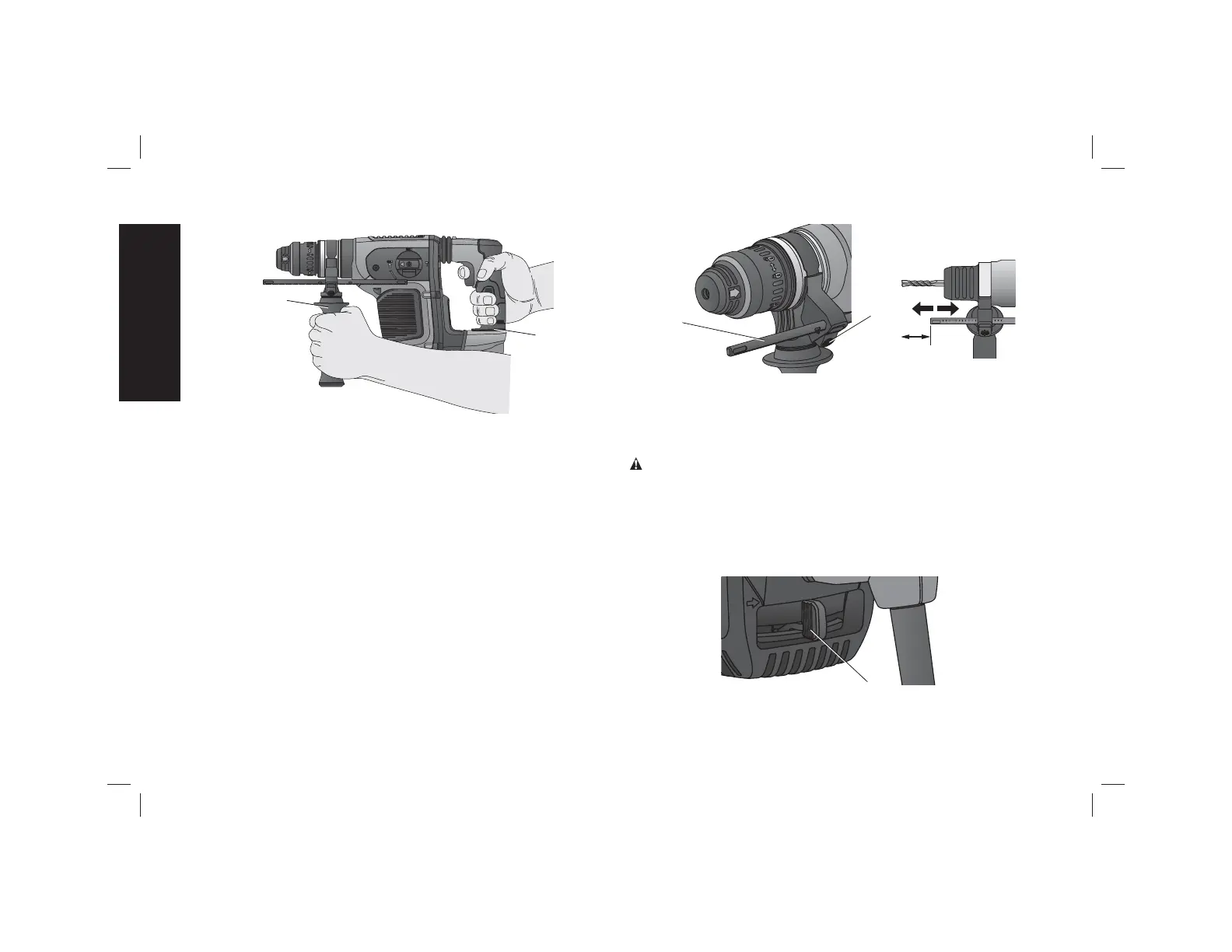

FIG. 6
E
D
Reversing Lever (Fig. 7)
(ONLY FOR D25413 & D25416)
The reversing lever (H) is used to reverse the rotary hammer for
backing out fasteners or jammed bits in drill-only mode.
WARNING: When reversing to clear jammed bits, be ready for
strong reactive torque.
To reverse the rotary hammer, turn it off and position the reversing
lever (H) to the right.
To position the lever for forward operation, turn the rotary hammer off
and push the reversing lever (H) to the left.
H
FIG. 7
FIG. 5
D
C
Depth Rod (Fig. 6)
(ONLY FOR D25413 & D25416)
TO ADJUST THE DEPTH ROD
1. Push in and hold the depth rod release button (E) on the side
handle.
2. Move the depth rod (D) so the distance between the end of the
rod and the end of the bit equals the desired drilling depth.
3. Release the button to lock rod into position. When drilling with the
depth rod, stop when end of rod reaches surface of material.
