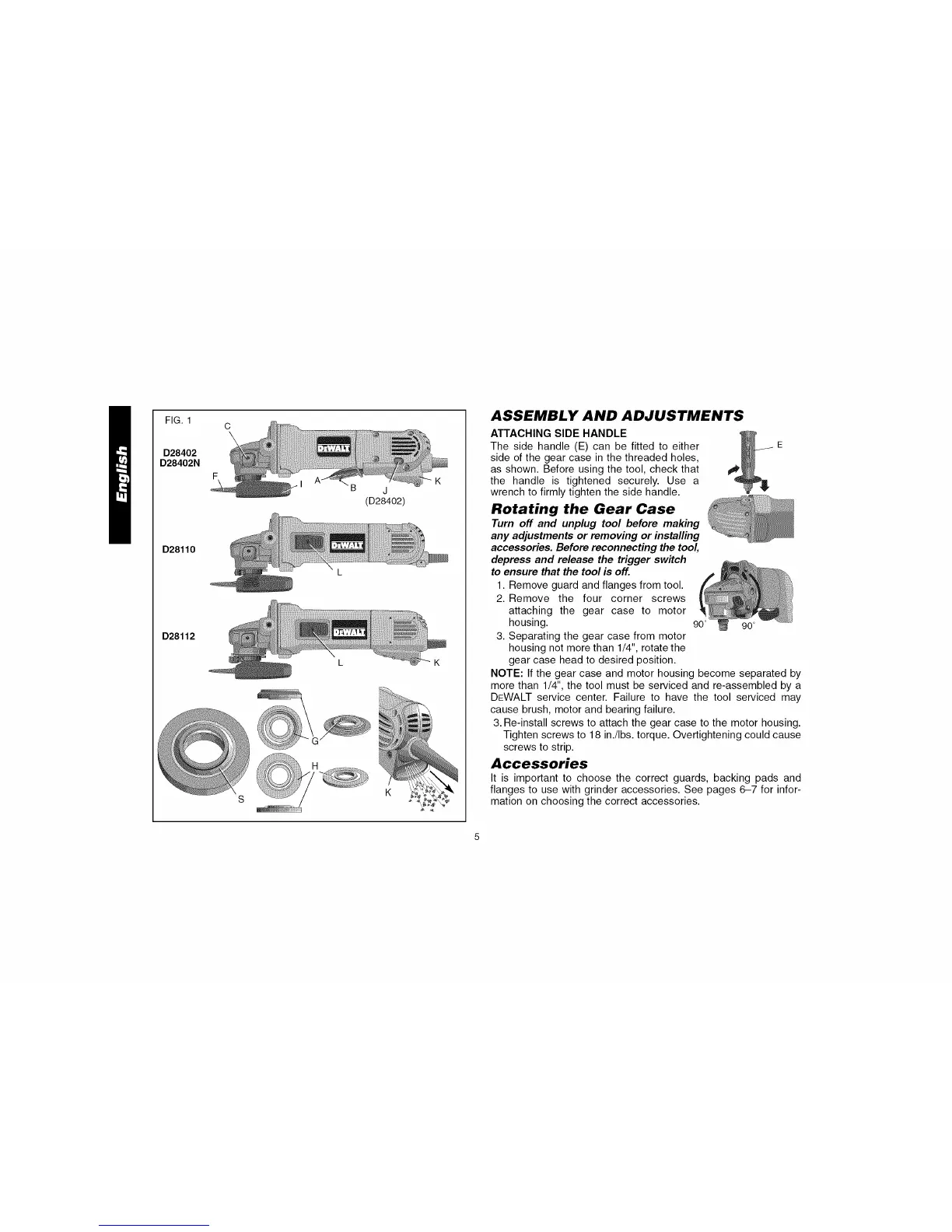

FIG. 1
D28402
D28402N
D28110
D28112
c
\
B j
(D28402)
ASSEMBLY AND ADJUSTMENTS
ATTACHING SIDE HANDLE
The side handle (E) can be fitted to either _ E
side of the gear case in the threaded holes,
as shown. Before using the tool, check that
the handle is tightened securely. Use a
wrench to firmly tighten the side handle.
Rotating the Gear Case
Turn off and unplug tool before making
any adjustments or removing or installing
accessories. Before reconnecting the tool,
depress and release the trigger switch
to ensure that the tool is off.
1. Remove guard and flanges from tool.
2. Remove the four corner screws
attaching the gear case to motor
housing. 90 ° 90 °
3. Separating the gear case from motor
housing not more than 1/4", rotate the
gear case head to desired position.
NOTE: If the gear case and motor housing become separated by
more than 1/4", the tool must be serviced and re-assembled by a
DEWALT service center. Failure to have the tool serviced may
cause brush, motor and bearing failure.
3. Re-install screws to attach the gear case to the motor housing.
Tighten screws to 18 in./Ibs, torque. Overtightening could cause
screws to strip.
Accessories
It is important to choose the correct guards, backing pads and
flanges to use with grinder accessories. See pages 6-7 for infor-
mation on choosing the correct accessories.
