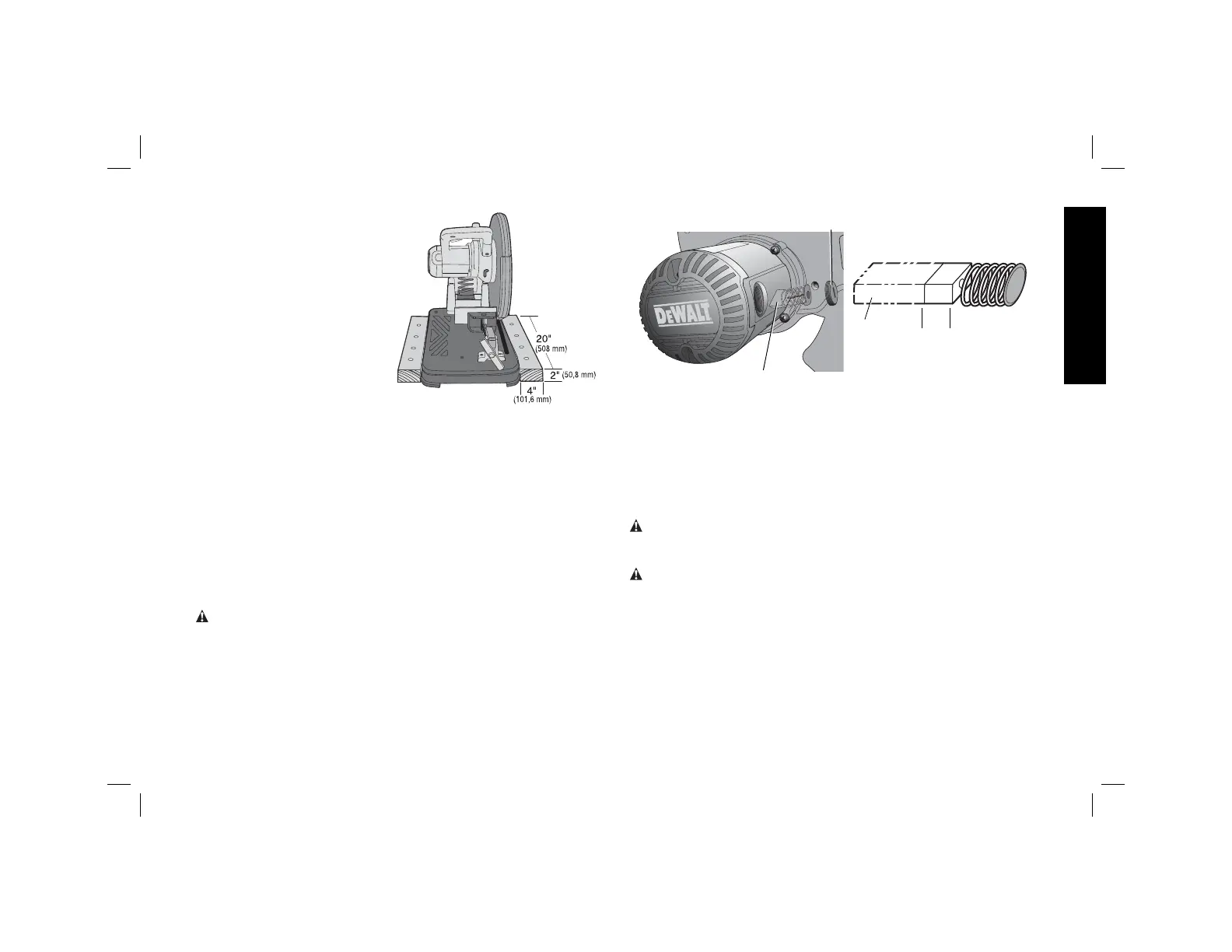

CRADLE MOUNTING
FIG. 10
(FIG. 10)
1. Cut two boards
approximately 20" long x
2" high x 4" wide (508 x
50.8 x 101.6mm).
2. Place the chop saw at
desired work location.
3. Place boards tightly
alongside and nail to work
surface.
Operation
Tips for More
Accurate Cuts
• Allow the wheel to do the cutting. Excessive force will cause
the wheel to glaze reducing cutting efficiency and/or to deflect
causing inaccurate cuts.
• Properly adjust fence angle.
• Make sure material is laying flat across base.
• Properly clamp material to avoid movement and vibration.
MAINTENANCE
Motor Brush Inspection and Replacement
(Fig. 11)
WARNING: Turn off and unplug the tool before making
any adjustments or removing or installing attachments or
accessories. Be sure the trigger switch is in the OFF position.
FIG. 11
W
X
.2"
(6mm)
X
Brushes should be regularly inspected for wear. To inspect brushes,
remove brush cap (W). Brushes (X) should slide freely in brush box.
If brushes are worn down to .2" (6mm) as shown in Figure 10 they
should be replaced. To reinstall, push new brush back into brush
box. If replacing existing brush, maintain same orientation as when
removed. Replace the brush cap (do not overtighten).
Cleaning
WARNING: Blow dirt and dust out of all air vents with clean, dry air
at least once a week. To minimize the risk of eye injury, always wear
ANSI Z87.1 approved eye protection when performing this.
WARNING: Never use solvents or other harsh chemicals for
cleaning the non-metallic parts of the tool. These chemicals may
weaken the plastic materials used in these parts. Use a cloth
dampened only with water and mild soap. Never let any liquid get
inside the tool; never immerse any part of the tool into a liquid.
Repairs
To assure product SAFETY and RELIABILITY, repairs, maintenance
and adjustment should be performed by authorized service centers
or other qualified service organizations, always using identical
replacement parts.
