DeWalt D55270-1 User Manual

2
English
Air Compressor
A. Pump Air Intake Filter
B. Engine Air Filter
C. Engine On/Off Switch
D. Air Tank Pressure Gauge
E. Regulated Pressure Gauge
F. Pressure Regulator
G. Air Outlet
H. Unloader Valve
I. Safety Valve
J. Air Tank Drain Valve(s)
K. Pump Oil Dipstick/Oil Fill Plug
L. Pump Oil Drain Plug

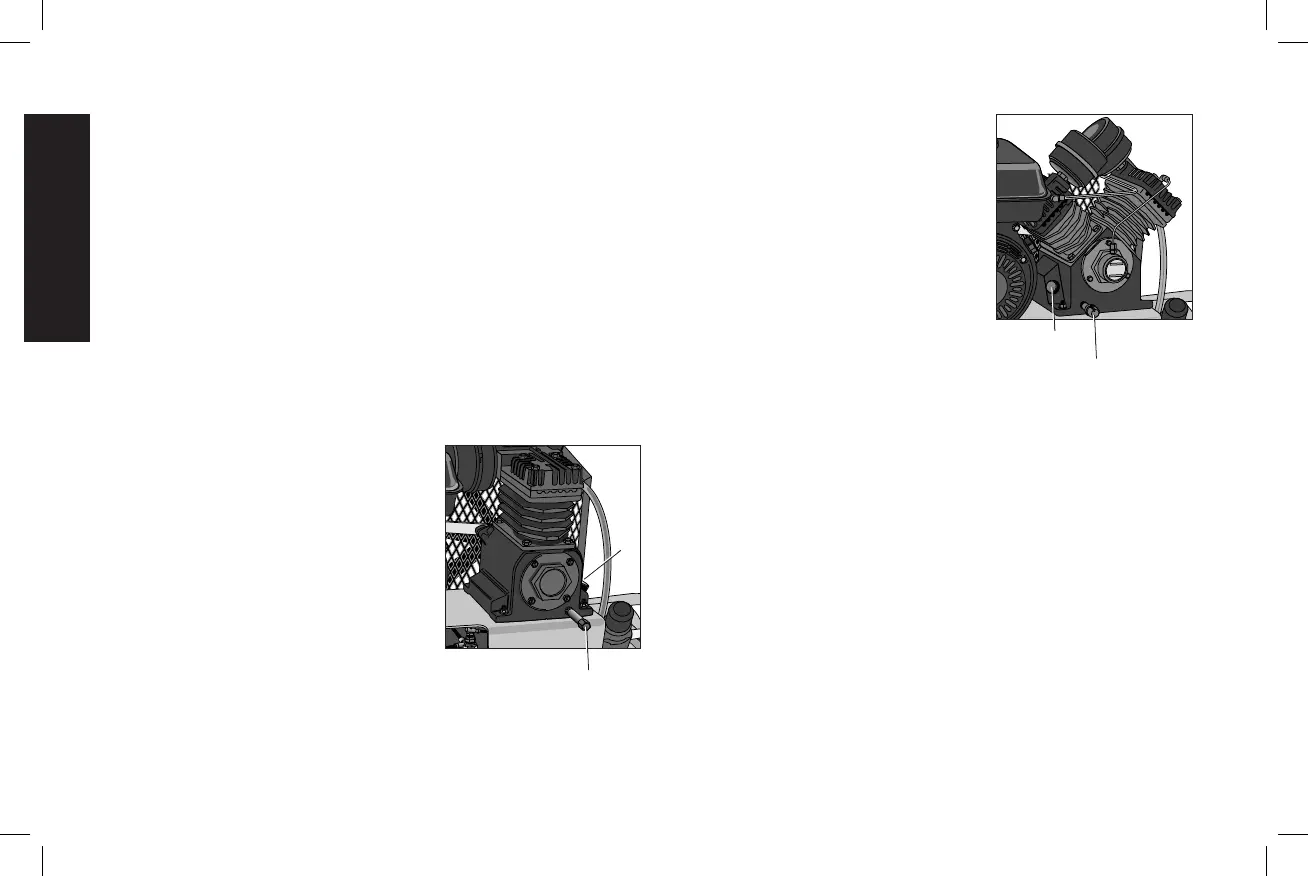

Pump Specifi cations
K PUMP
Inline, vertical twin cylinder
Single Stage
Oil Lubricated
Cast Iron crankcase cylinder, and head
Bore: 2-1/2" (63.5 mm)
Stroke: 2" (50.8 mm)
Weight: 47 lbs. ( 21.32 kg.)
Oil Capacity: 14 oz. (414 mL)
Pump Specifi cations
G PUMP
V - twin 4 cylinder
Single Stage
Oil Lubricated
Cast Iron crankcase cylinder, and head
Bore: 2-1/2" (63.5 mm)
Stroke: 2-3/8" (60.33 mm)
Weight: 69 lbs. (31.3 kg.)
Oil Capacity: 30 oz. (887 mL)
Engine Specifi cations
5.5 HP HONDA GX160
Internal Combustion
4-stroke
3450 RPM
9 HP HONDA HONDA GX270
Internal Combustion
4-stroke
3450 RPM
K
L
L
K

DeWalt D55270-1 Specifications

General

Brand	DeWalt
Model	D55270-1
Category	Air Compressor
Language	English
