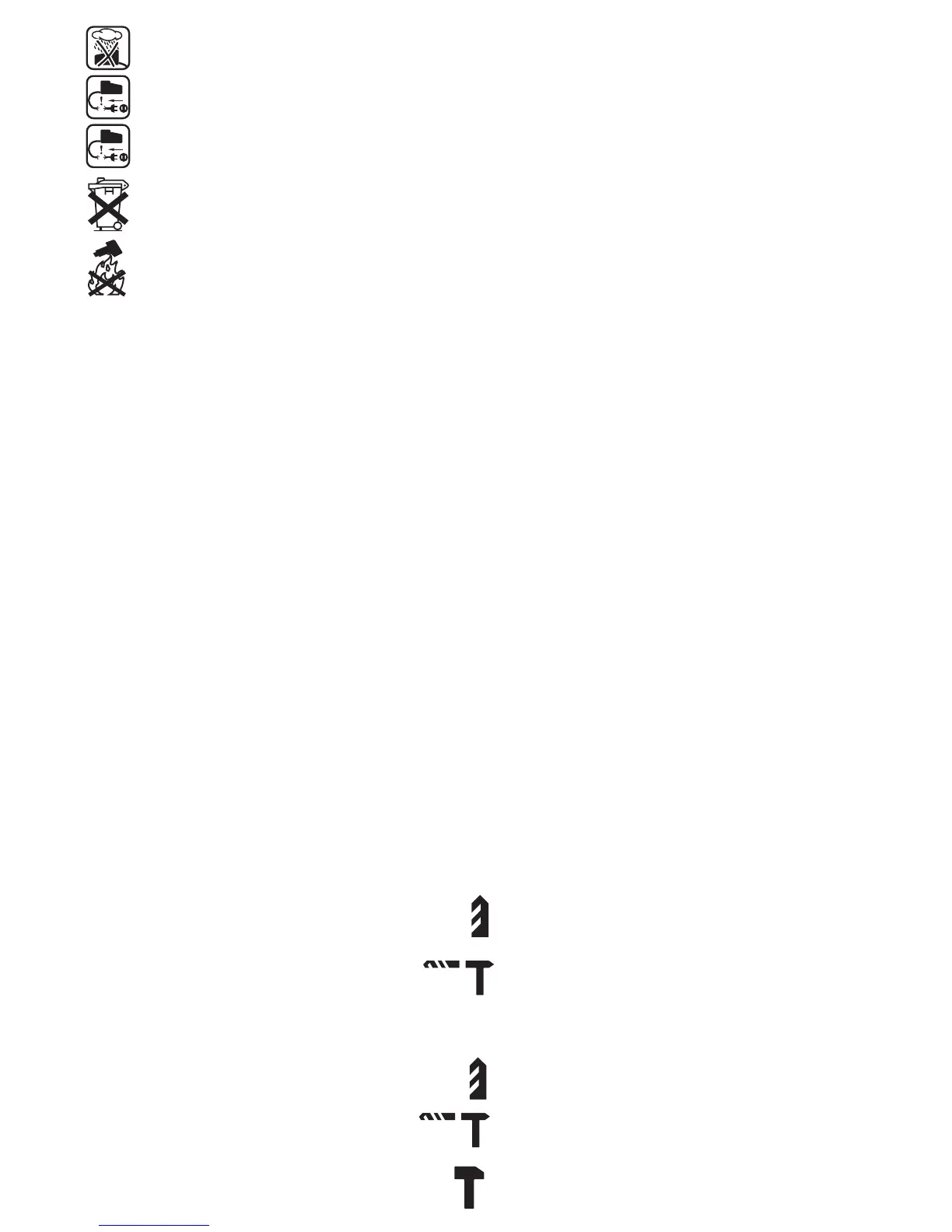

Do not expose to water
Have defective cords replaced
immediately
Charge only between 4 °C and 40 °C
Discard the battery pack with due care
for the environment
Do not incinerate the battery pack
Package contents
The package contains:
1 Cordless rotary hammer drill
1 Side handle
1 Depth adjustment rod
1 Charger (K-models only)
2 Battery packs (K-models only)
1 Kitbox (K-models only)
1 Instruction manual
1 Exploded drawing
• Check for damage to the tool, parts or
accessories which may have occurred during
transport.
• Take the time to thoroughly read and understand
this manual prior to operation.
Description (fig. A)
Your cordless rotary hammer drill DC212 has been
designed for professional drilling, hammer drilling
and screwdriving applications.
Your cordless rotary hammer drill DC213* has been
designed for professional drilling, hammer drilling
and screwdriving applications as well as for light
chipping.
1 Variable speed switch
2 Forward/reverse slider
3 Mode selector
4 Safety lock
5 Tool holder
6 Dust cover
7 Depth adjustment rod
8 Side handle
9 Battery pack
Charger
Your DE9116 charger accepts D
EWALT 18 V NiCd
and NiMH battery packs.
9 Battery pack
10 Release buttons
11 Charger
12 Charging indicator (red)
Overload clutch
In case of jamming of a drill bit, the drive to the drill
spindle is interrupted. Because of the resulting
forces, always hold the tool with both hands and
take a firm stance.
Brake mechanism
When the variable speed switch is released,
the spindle will stop rotating instantly.
Active vibration control
The active vibration control neutralises rebound
vibration from the hammer mechanism.
Lowering hand and arm vibration, it allows more
comfortable use for longer periods of time and
extends the life of the unit.
In operation, a spring loaded mechanism
counterbalances the vibration forces. This can be
sensed by the cushioning effect when pressure is
applied to the tool. Make sure the spring is engaged
but not too firmly. The mechanism should be allowe
d
to ‘float’.
Electrical safety
The electric motor has been designed for one
voltage only. Always check that the battery pack
voltage corresponds to the voltage on the rating
plate. Also make sure that the voltage of your
charger corresponds to that of your mains.
Important Notice:
Not all models shown in this manual are
available in Korea
Selecting the operating mode (fig. C1 & C2)
DC212 (fig. C1)
The tool can be used in the following operating modes
:
Rotary drilling: for screwdriving and for
drilling into
steel, wood and plastics
Hammer drilling: for concrete and
masonry drilling.
DC213* (fig. C2)
The tool can be used in the following operating modes
:
Rotary drilling: for screwdriving and for
drilling into steel, wood and plastics
Hammer drilling: for concrete and
masonry drilling.
Hammering only: for light chipping.
5
