DeWalt DC618 User Manual

Angled 20˚
A. Trigger
B. Contact trip lock-off
C. Depth adjustment
wheel
D. Headlights/Low
battery indicator
E. Jam clearing latch
F. Contact trip
G. Magazine
H. Pusher
I. Bump/sequential
selector switch
J. Reversible suspension
hook
K. No-mar pad
L. No-mar tip storage
Straight

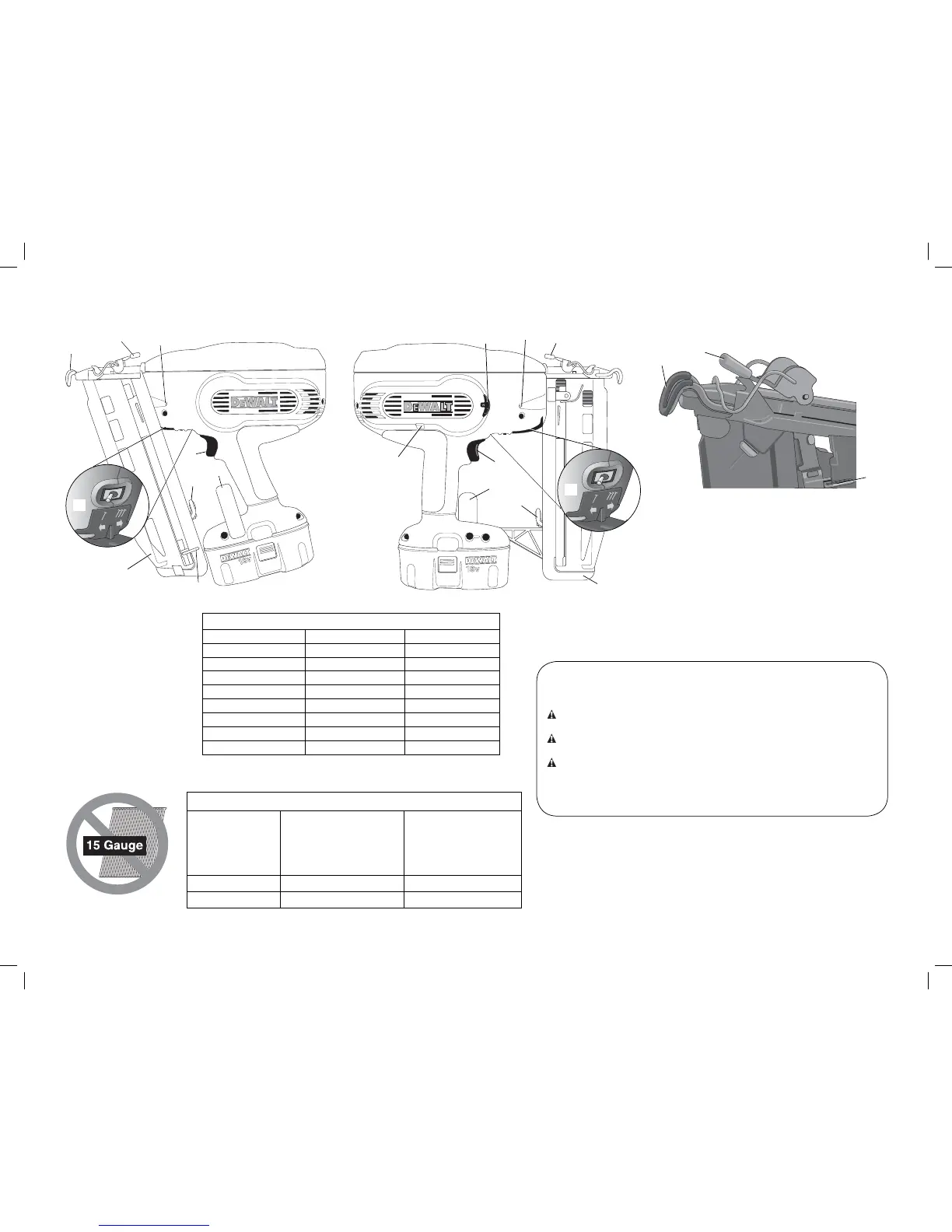

FIG. 1
NAIL SPECIFICATIONS
Nail Lengths Angled
-1/4’’, 1-1/2”, 1-3/4”, 2”,
2-1/2”
(32 mm, 38 mm, 44 mm,
51 mm, 65 mm)
Straight
1-1/4’’, 1-1/2”, 1-3/4”,
2”, 2-1/2”
(32 mm, 38 mm,
44mm, 51 mm, 65 mm
Shank Diameters 16 gauge 16 gauge
Nail Stick Angles 20˚ 0˚
Defi nitions: Safety Guidelines
The definitions below describe the level of severity for each signal word.
Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not
avoided, may result in property damage.
TOOL SPECIFICATIONS
DC616 DC618
Firing Mode Selective Selective
Voltage 18 18
Height 12’’ (305 mm) 12.4’’ (315 mm)
Width 4.18’’ (106 mm) 4.18’’ (106 mm)
Length 12.75’’ (324 mm) 12.5’’ (317 mm)
Weight .5lbs. (3.8 kg) 8.5lbs (3.8 kg)
Magazine Angle Straight Angled 20˚
Loading Capacity Up to 110 Nails Up to 120 Nails
H
E
K
J
G
L
E
D
A
F
I
H
I
C
E
D
F
L
A
G
J
B

DeWalt DC618 Specifications

General

Magazine Capacity	110 Nails
Power Source	18V Battery
Depth Adjustment	Yes
Jam Clearing	Tool-Free
Firing Mode	Sequential
