10

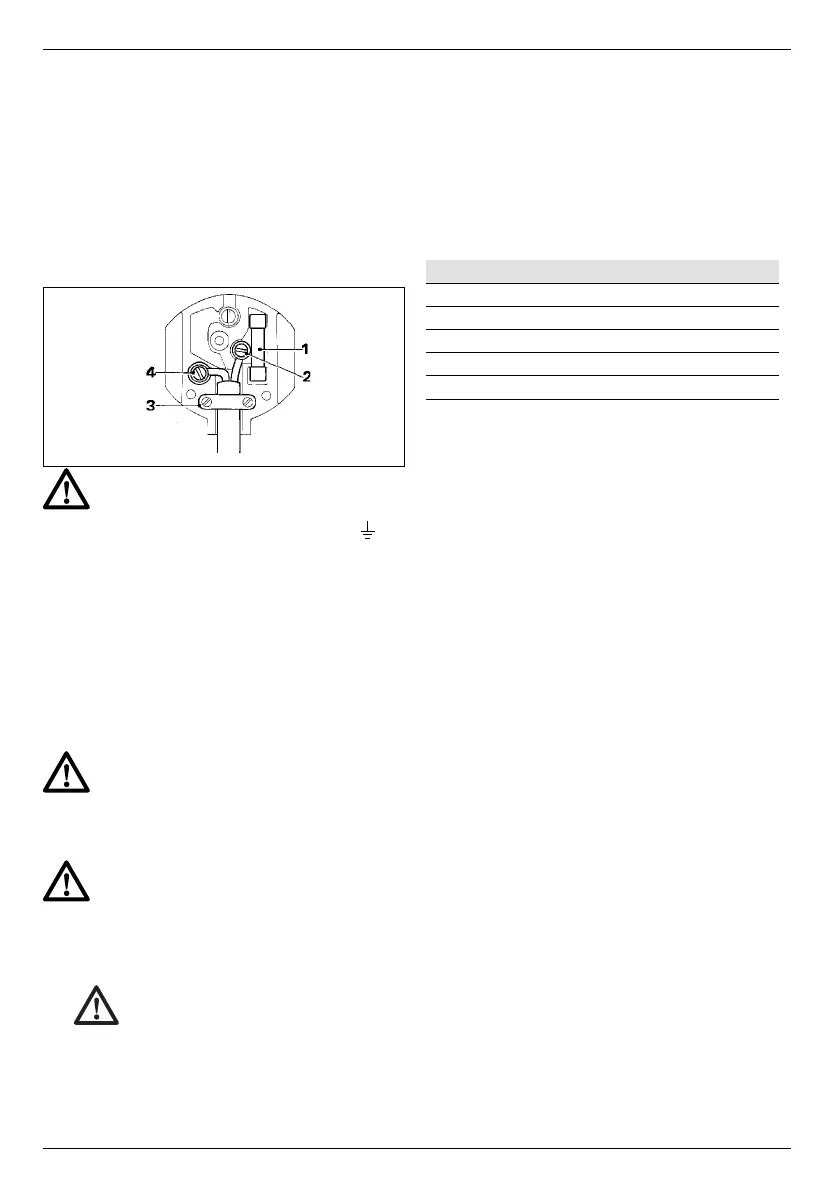

s The cable wire colours, or a letter, will be marked
at the connection points of most good quality
plugs. Attach the wires to their respective points
in the plug (see below). Brown is for Live (L) (2)
and Blue is for Neutral (N) (4).
s Before replacing the top cover of the mains plug
ensure that the cable restraint (3) is holding the
outer sheath of the cable firmly and that the two
leads are correctly fi
xed at the terminal screws.
Never use a light socket.
Never connect the live (L) or neutral (N)
wires to the earth pin marked E or
.
Using an extension cable
An extension cord should not be used unless
absolutely necessary. Use an approved extension
cable suitable for the power input of your charger
(see technical data). The minimum conductor size is
1 mm
2
; the maximum length is 30 m.
Assembly and adjustment
s Prior to assembly and adjustment,
always remove the battery pack.
s Always switch off the tool before
inserting or removing the battery pack.
Use only DEWALT battery packs and
chargers.
Battery pack (fig. 2 & 3 )
Charging Procedure
DANGER: Electrocution hazard.
230 volts present at charging terminals.
Do not probe with conductive objects.
Danger of electric shock or lectrocution.
1. Plug the charger (k) into an appropriate outlet
before inserting battery pack.
2. Insert the battery pack into the charger. The red
(charging) light will blink continuously indicating
that the charging process has started.
3. The completion of charge will be indicated by
the red light remaining ON continuously. The
pack is fully charged and may be used at this
time or left in the charger.
Charging Process
Refer the table below for the state of charge of the
battery pack.
State of charge
charging – – – – – –
fully charged –––––––––––
hot/cold pack delay ––– – ––– –
replace battery pack sssssssssss
problem ss ss ss ss
Automatic Refresh
(DE9116, DE9135 only)
The automatic refresh mode will equalise or balance
the individual cells in the battery pack at its peak
capacity. Battery packs should be refreshed weekly or
whenever the pack no longer delivers the same
amount of work.
To refresh your battery pack, place the battery in the
charger as usual. Leave the battery pack for at least
8 hours in the charger.
Hot/Cold Pack Delay
(DE9116, DE9135 only)
When the charger detects a battery that is too hot or
too cold, it automatically starts a Hot/Cold Pack Delay,
suspending charging until the battery has appropriate
temperature. The charger then automatically switches
to the pack charging mode. This feature ensures
maximum battery life.
DEEP DISCHARGE PROTECTION
The battery pack is protected against deep discharging
when it is used in the tool.
Important Safety Instructions
for All
Battery Packs
When ordering replacement battery packs, be sure to
include catalog number and voltage. Consult the chart
at the end of this manual for compatibility of chargers
and battery packs.
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below. Then follow charging
procedures outlined.
ENGLISH
