ENGLISH
11
• Do not over-tension the chain as this will lead to
excessive wear and will reduce the life of the bar
andchain.
• Once chain tension is correct, securely tighten bar adjust
lockingknob.
NOTE: The bar adjust locking knob has a detent tightening
system. The sprocket cover is secure after three audible
clicks are heard. Further tigtening is notrequired.
• When the chain is new, check the tension frequently
(after removing battery) during the first 2 hours of use as
a new chain stretchesslightly.

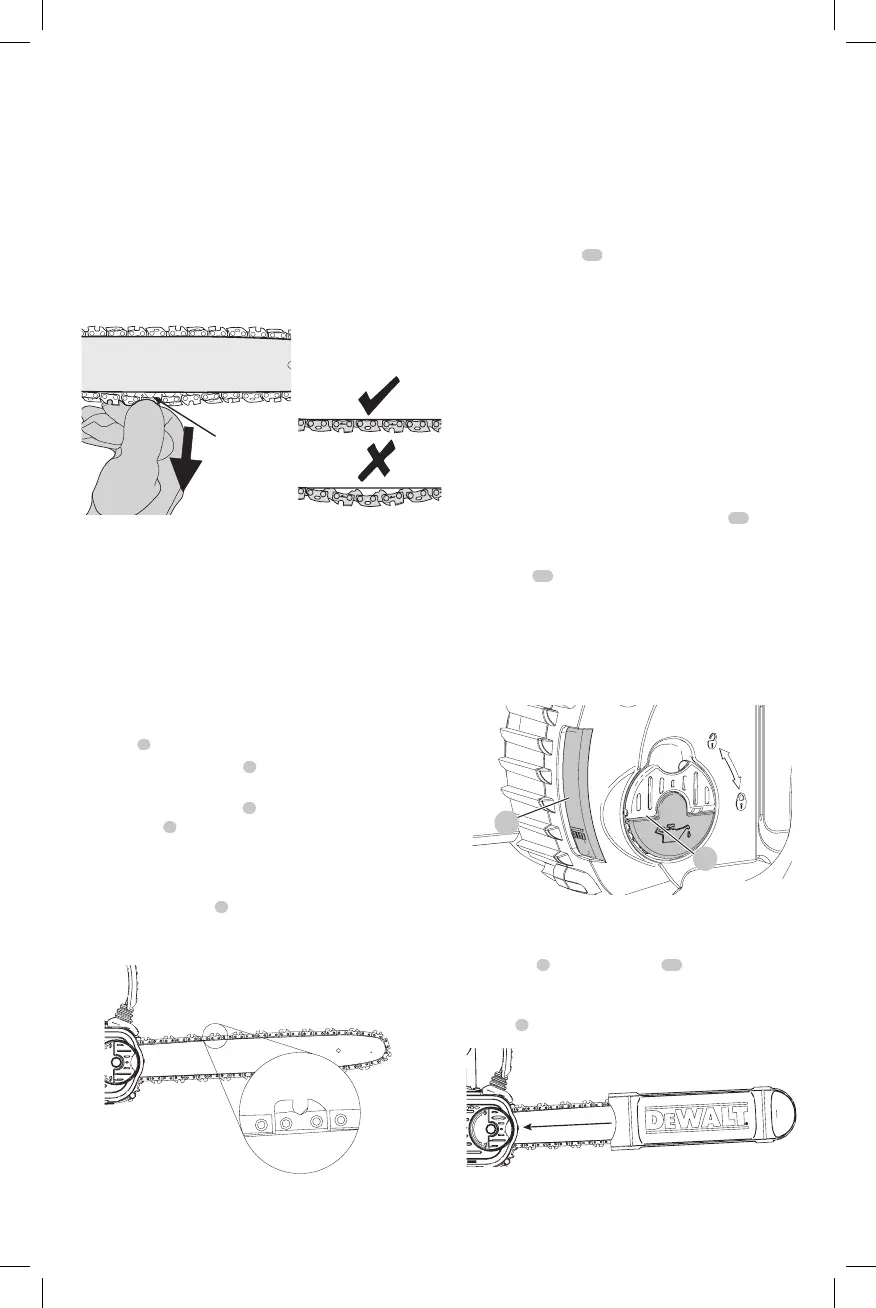

Fig. G
1/8” (3mm)
Replacing the Saw Chain (Fig. A, H)
CAUTION: Sharp chain. Always wear protective
gloves when handling the chain. The chain is sharp
and can cut you when it is notrunning.
WARNING: Sharp moving chain. To prevent
accidental operation, ensure that battery is removed
from the tool before performing the following
operations. Failure to do this could result in serious
personalinjury.
• Flip up locking tab and rotate the bar adjust locking
knob
8
counterclockwise to release chaintension.
• Remove sprocket cover
6
as described in Installing the
Guide Bar and Saw Chainsection.
• Lift the worn saw chain
5
out of the groove in the
guide bar
4
.
• Place the new chain in the slot of the guide bar, making
sure the saw teeth are facing the correct direction by
matching the arrow on the chain with the graphic on
the sprocket cover
6
shown in FigureH.
• Follow instructions for Installing the Guide Bar and
SawChain.
Fig. H
Replacement chain and bar are available from your
nearest
servicecenter.
• DCCS620 requires replacement chain # DWRC1200,
service part number 90586162. Replacement 12” bar,
service part numberN507300.
Saw Chain and Guide Bar Oiling (Fig. I)
Auto Oiling System
This chain saw is equipped with an auto oiling system that
keeps the saw chain and guide bar constantly lubricated.
The oil level indicator
10
shows the level of the oil in the
chain saw. If the oil level is less than a quarter full, remove
the battery from the chain saw and refill with the correct
type of oil. Always empty oil tank when finishedcutting.
NOTE: Use a high quality bar and chain oil for proper chain
and bar lubrication. As a temporary substitute, a non-
detergent SAE30 weight motor oil can be used. The use of
a vegetable based bar and chain oil is recommended when
pruning trees. Mineral oil is not recommended because it
may harm trees. Never use waste oil or very thick oil. These
may damage yourchainsaw.
Filling the Oil Reservoir
• Flip down locking lever and unscrew counterclockwise
a quarter turn and then remove the oil cap
16
. Fill
the reservoir with the recommended bar and chain oil
until the oil level has reached the top of the oil level
indicator
10
.
• Refit the oil cap and tighten clockwise a quarter turn.
Flip up locking lever to its lockedposition.
• Periodically switch the chain saw off and check the oil
level indicator to ensure the bar and chain are being
properlyoiled.
Fig. L
16
10
Transporting Saw (Fig. A, J)
• Always remove the battery from the tool and cover the
guide bar
4
with the scabbard
11
(see FigureJ) when
transporting thesaw.
• Engage chain brake by pushing chain brake / front hand
guard
3
forward.
Fig. J
