ENGLISH
11

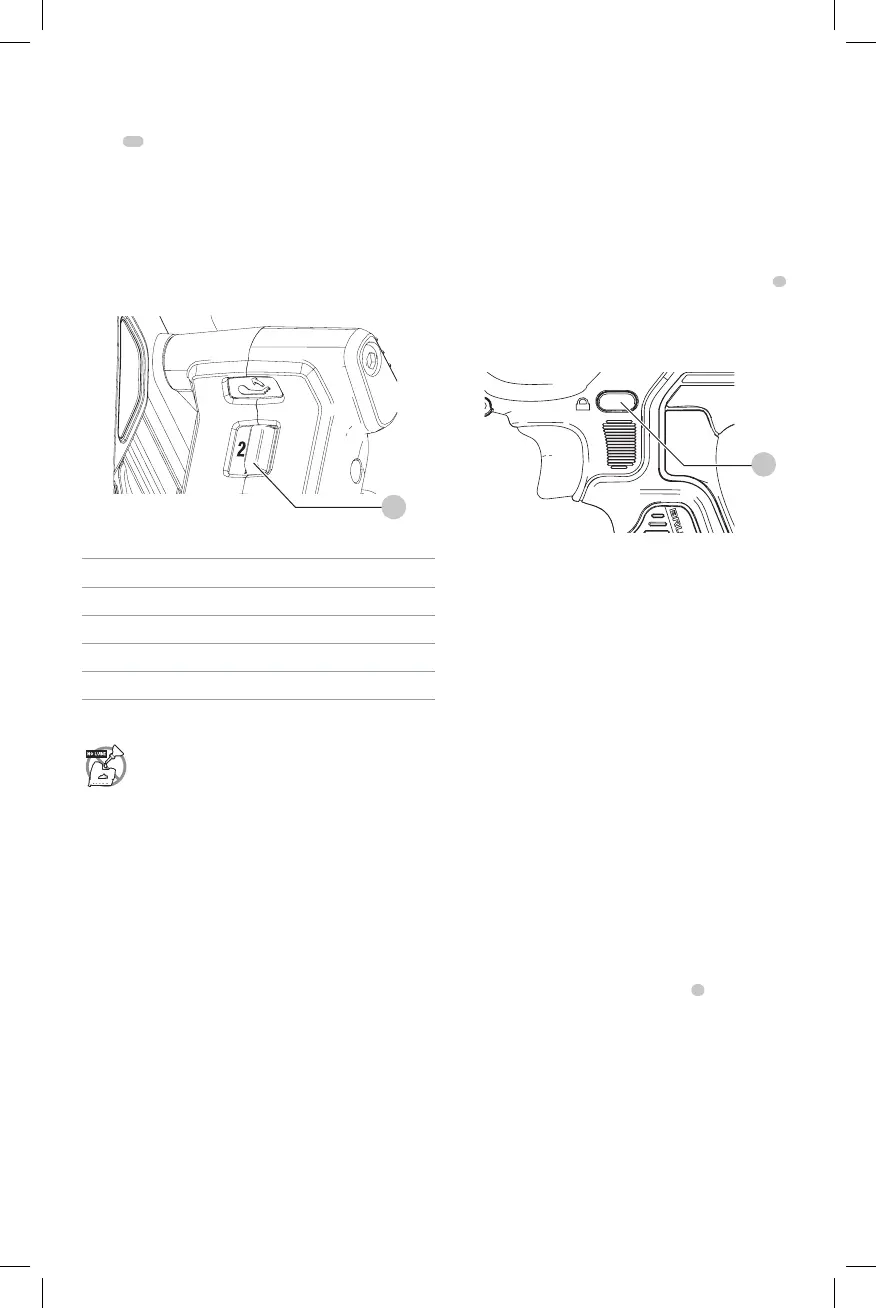

Speed Selection (Fig. A, H)
This nailer is equipped with a dual speed selection
switch
13
located on thefoot.
• For shorter nails, select speed 1 by setting the switch to
the left mostposition.
• For longer nails and more rigorous applications, select
speed 2 by setting the switch to the right mostposition.
In the event that nails are not driving to depth in speed
setting 1, you may have to switch to speed setting 2 for
additional drivingpower.
Fig. H
13
Suggested Speed Settings
Application Typical Nail Length Speed Setting
Framing & Decking 3-1/4" (83 mm) 2
General Framing 3" (77 mm) 2
Sheathing 2-3/8" (60 mm) 2
Fencing 2" (50 mm) 1
Preparing the Tool
NOTICE: NEVER spray or in any other way apply
lubricants or cleaning solvents inside the tool. This
can seriously affect the life and performance of
thetool.
NOTE: The battery pack is not fully charged out of the
carton. Follow instructions outlined (refer to Charging
aBattery).
1. Read the Nailer Safety Warnings section of
thismanual.
2. Wear eye and earprotection.
3. Remove battery fromtool.
4. Ensure magazine is empty of allfastners.
5. Check for smooth and proper operation of contact
trip and pusher assemblies. Do not use tool if either
assembly is not functioning properly. NEVER use
a tool that has the contact trip restrained in the
actuatedposition.
6. Keep tool pointed away from yourself andothers.
7. Insert fully charged batterypack.
Using the Trigger Lock-Off (Fig. I)
WARNING: To reduce the risk of serious personal
injury, do not keep trigger depressed when tool is not
in use. Keep the trigger lock-off switch LOCKED (Fig.I)
when the tool is not inuse.
WARNING: To reduce the risk of serious personal
injury, lock off trigger, disconnect battery pack
from tool and remove nails from magazine before
makingadjustments.
Each
nailer is equipped with a trigger lock-off
2
which when pushed to the right as shown in FigureI,
prevents the tool from firing a nail by locking the trigger and
bypassing power to themotor.
Fig. I
2
When the trigger lock-off is pressed to the left, the tool will
be fully operational. The trigger lock-off should always be
locked off (Fig.I) whenever any adjustments are made or
when tool is not in immediateuse.
NOTICE: Do not store tool with battery pack installed.
To prevent damage to the pack and to ensure best
battery life, store battery packs out of the tool or
charger in a cool, drylocation.
Loading the Tool (Fig. J)
WARNING: Keep the tool pointed away from yourself
andothers.
WARNING: Never load nails with the contact trip or
triggeractivated.
WARNING: Always remove battery pack before
loading or unloadingnails.
CAUTION: Keep fingers clear of pusher latch track to
preventinjury.
WARNING: The trigger lock-off should always be
engaged whenever any adjustments are made or
when tool is not inuse.
1. Turn the nailer upsidedown.
2. Slide the spring-loaded pusher latch
8
to the base of
the magazine to lock it intoplace.
3. Drop nail strips into the loading slot of the magazine,
making sure the nail heads align correctly with the slot
opening. (Refer to Nail Specifications to determine
compatible size.)
To Next Page
