Definitions: Safety Guidelines
The definitions below describe the level of severity
for each signal word. Please read the manual and
pay attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result
in property damage.

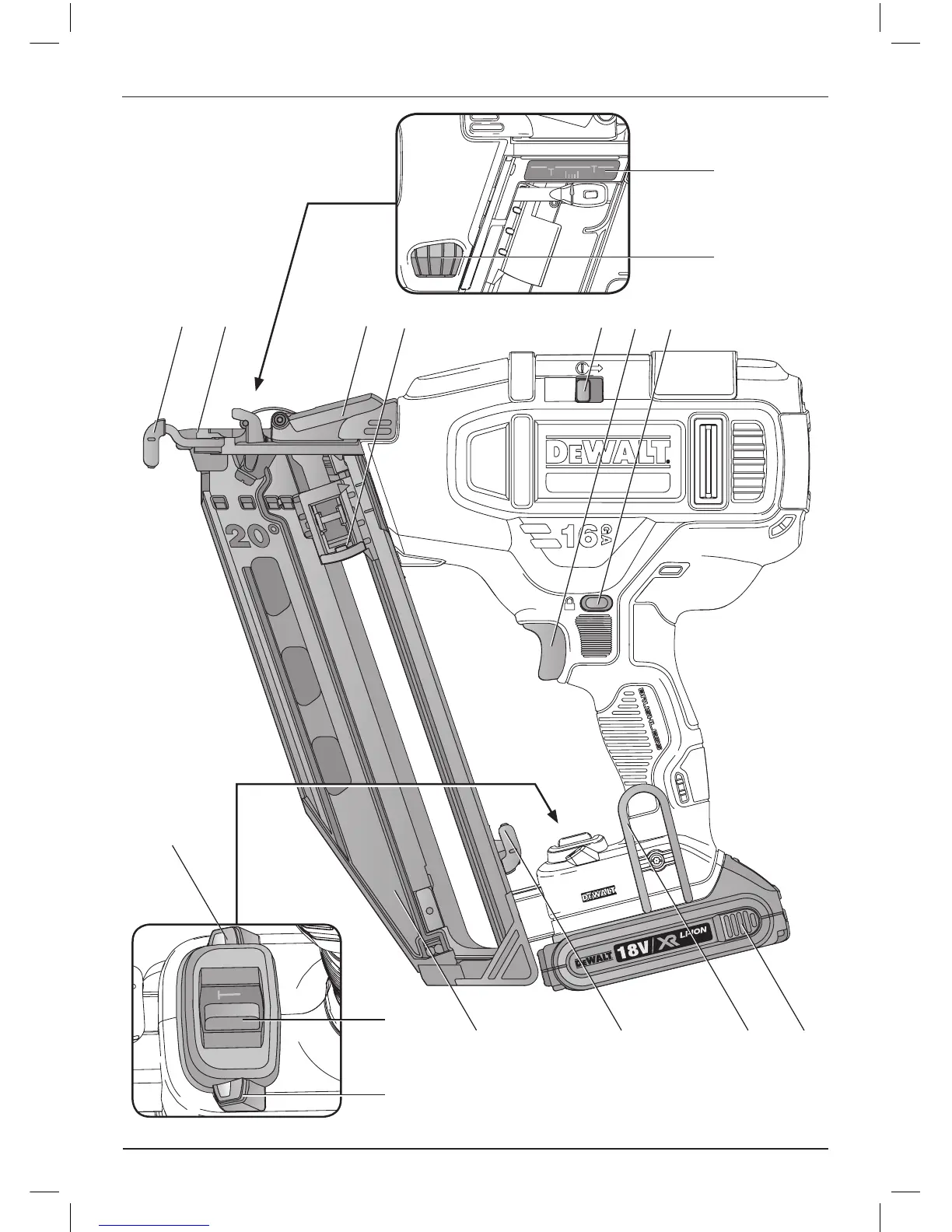

FIG. 1
A. Trigger
B. Trigger lock-off
C. Depth adjustment wheel
D. Headlights/Low
battery/Stall indicator
E. Jam clearing latch
F. Contact trip
G. Magazine
H. Pusher
I. Bump/sequential
selector switch
J. Reversible suspension
hook
K. No-mar pad
L. No-mar pad storage
M. Stall release lever
N. Battery
O. Nail depth indicator
K F
O
C
H E A
D I
B M
G L J N
No Lube
TOOL SPECIFICATIONS
Firing Mode Selectable : Sequential or Bump
Voltage 20
Height 11.8" (300 mm)
Width 3.6" (91 mm)
Length 11.8" (300 mm)
Weight (with battery) 6 lbs. (2.72 kg)
Magazine Angle 20˚
Loading Capacity Up to 110 nails
NAIL SPECIFICATIONS
Angled Nail
Lengths
1-1/4” to 2-1/2”
(32 mm to 65 mm)
Shank Diameters 16 gauge
Nail Stick Angles 20˚
