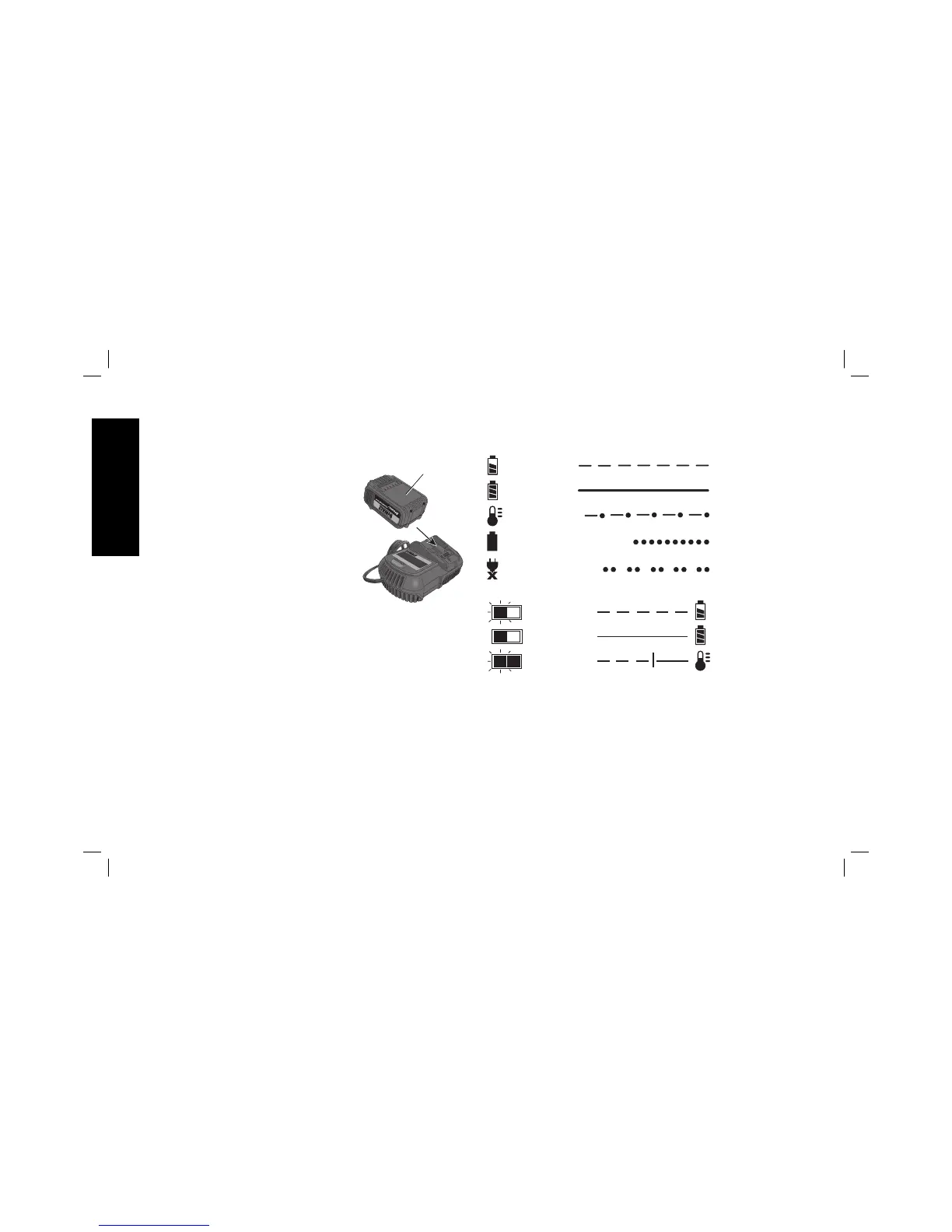

Indicator Light Operation
DCB101
PACK CHARGING
PACK CHARGED
x
HOT/COLD DELAY
PROBLEM PACK OR CHARGER
PROBLEM POWERLINE
DCB107, DCB112
PACK CHARGING
PACK CHARGED
HOT/COLD DELAY
Charge Indicators
This charger is designed to detect certain problems that can arise.
Problems are indicated by the red light flashing at a fast rate. If this
occurs, re-insert the battery pack into the charger. If the problem
persists, try a different battery pack to determine if the charger is
working properly. If the new pack charges correctly, then the original
pack is defective and should be returned to a service center or other
collection site for recycling. If the new battery pack elicits the same
trouble indication as the original, have the charger and the battery
pack tested at an authorized service center.
• The charger is designed to operate on standard 120V
household electrical power. Do not attempt to use it on any
other voltage. This does not apply to the vehicular charger.
Chargers
Your speaker uses a DEWALT charger.
L
FIG. 1
Be sure to read all safety instructions
before using your charger. Consult the
chart at the end of this manual for
compatibility of chargers and battery
packs.
Charging Procedure
(Fig. 1)
1. Plug the charger into an appropriate
outlet before inserting the battery
pack.
2. Insert the battery pack (L) into the charger, as shown in Figure 1,
making sure the pack is fully seated in charger. The red (charging)
light will blink continuously, indicating that the charging process
has started.
3. The completion of charge will be indicated by the red light
remaining ON continuously. The pack is fully charged and may be
used at this time or left in the charger.
