Installing/Removing Sanding Sheets

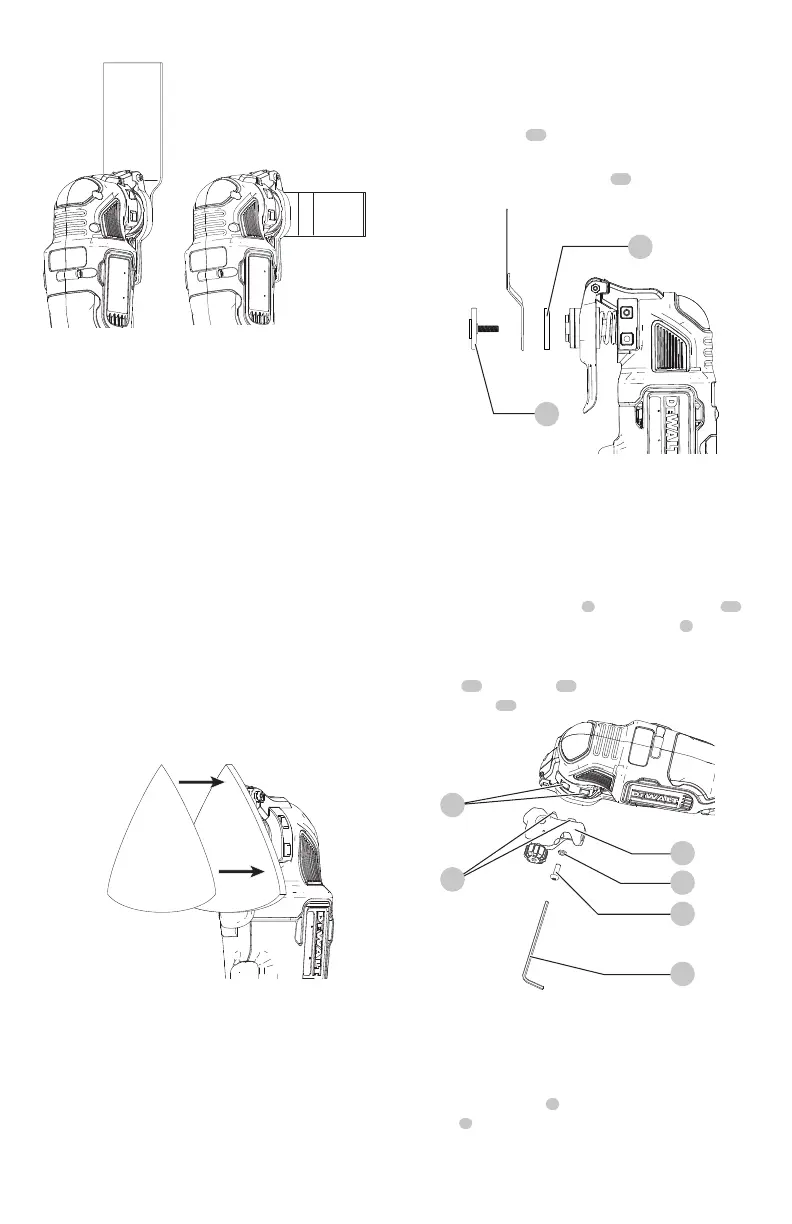

(Fig.D)
Optional Accessory
A diamond shaped platen uses a hook and loop adhesion
system to attach the sanding sheets. The platen allows you
to use it on large flat surfaces and tight spots or corners.
1. Attach the sanding platen accessory as described under
Installing/Removing Accessories.
2. Align the edges on the sanding sheet with the edge of
the sanding platen and press the sanding sheet onto
the platen.
3. Firmly press the base with the sanding sheet attached
against a flat surface and briefly switch the tool on.
This provides for good adhesion between the platen
and the sanding sheet and also helps to prevent
prematurewear.
NOTE: When the tip of the sanding sheet becomes worn,
detach the sheet from the platen, rotate andreapply.
Fig.D
Attaching Accessories Using the Universal
Adapter (Fig. E)

CAUTION: To avoid injury, do not use any accessory
for an application where the adaptor may fail to hold
the accessory.

CAUTION: Read and follow all manufacturers’ safety
warnings for any accessories used with this tool.

CAUTION: To avoid injury, ensure adaptor and
accessory are securely tightened.
Non-DeWALT accessories can be attached using the
universal adaptor.
1. Place the washer
14
on the tool.
2. Place accessory on to washer.
3. Tighten and secure adaptor nut
15
using hex wrench.
Fig.E
14
15
Attaching the Cut Guide (Fig. F)
Optional Accessory
The depth/cut guide allows you to precisely cut material
at a specified depth or height and more accurately track a
marked cut line.
1. Attach the cut guide block
6
by inserting the tabs
16
on the guide into the accessory side mount
5
on the
main body of the tool.
2. Secure the block to the main body with the supplied
screw
17
and washer
14
.Tighten with the supplied
hex wrench
18
.
Fig.F
18
17
14
6
5
16
Depth Guide (Fig. G)
Optional Accessory
This feature allows you to precisely cut material at a
specified depth.
1. Insert the guide arm
7
into the front slot on the guide
block
6
.
2. Adjust the length of the guide by pulling out or pushing
inward to achieve the desired cut depth.
