ENGLISH
Battery Type
The DCS520 operates on a 54 volt battery pack.
The DCB546 battery pack may be used. Refer to Technical Data
for moreinformation.
Package Contents
The package contains:
1 Plunge saw
1 Hex wrench
1 Li-Ion battery pack (T1 models)
2 Li-Ion battery packs (T2 models)
3 Li-Ion battery packs (T3 models)
1 Instruction manual
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.

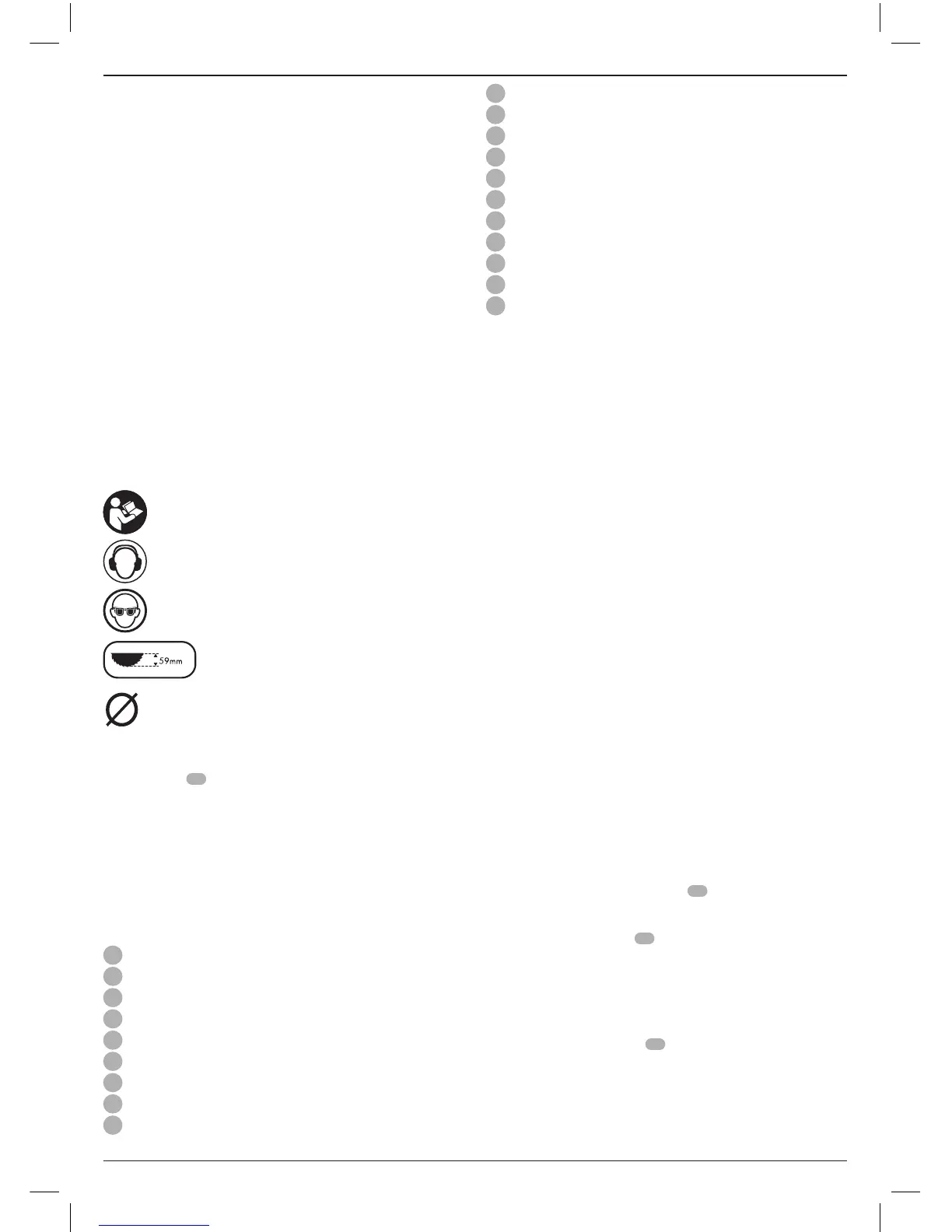

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual before use.
Wear ear protection.
Wear eye protection.
Maximum depth of cut
Blade diameter
Date Code Position (Fig. A)
The date code
16
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2016 XX XX
Year of Manufacture
Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Plunge trigger
2
On/off switch
3
Main handle
4
Shoe
5
Rail adjustment knobs
6
Bevel scale
7
Bevel adjustment knobs
8
Depth adjustment knobs
9
Depth scale
10
Blade
11
Front handle
12
Spindle lock button
13
Spindle lock lever
14
Battery pack
15
Battery release button
16
Date code
17
Dust extraction outlet
18
Anti-kickback knob
19
Speed wheel
20
Fuel gauge
Intended Use
The DCS520 cordless plunge saw is designed for professional
sawing of wood products.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
This heavy-duty plunge saw is a professional power tool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
without supervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.

WARNING: Use only
DeWALT
battery packs andchargers.
Inserting and Removing the Battery Pack
from the Tool (Fig. A)
NOTE: Make sure your battery pack
14
is fullycharged.
To Install the Battery Pack into the Tool
1. Align the battery pack
14
with the rails as shown in
FigureA.
2. Slide it in until the battery pack is firmly seated in the tool
and ensure that you hear it snap intoplace.
To Remove the Battery Pack from the Tool
1. Press the release button
15
and firmly pull the battery
packout.
2. Insert battery pack into the charger as described in the
charger section of thismanual.

DeWalt DCS520 Specifications

General

Brand	DeWalt
Model	DCS520
Category	Cordless Saw
Language	English
