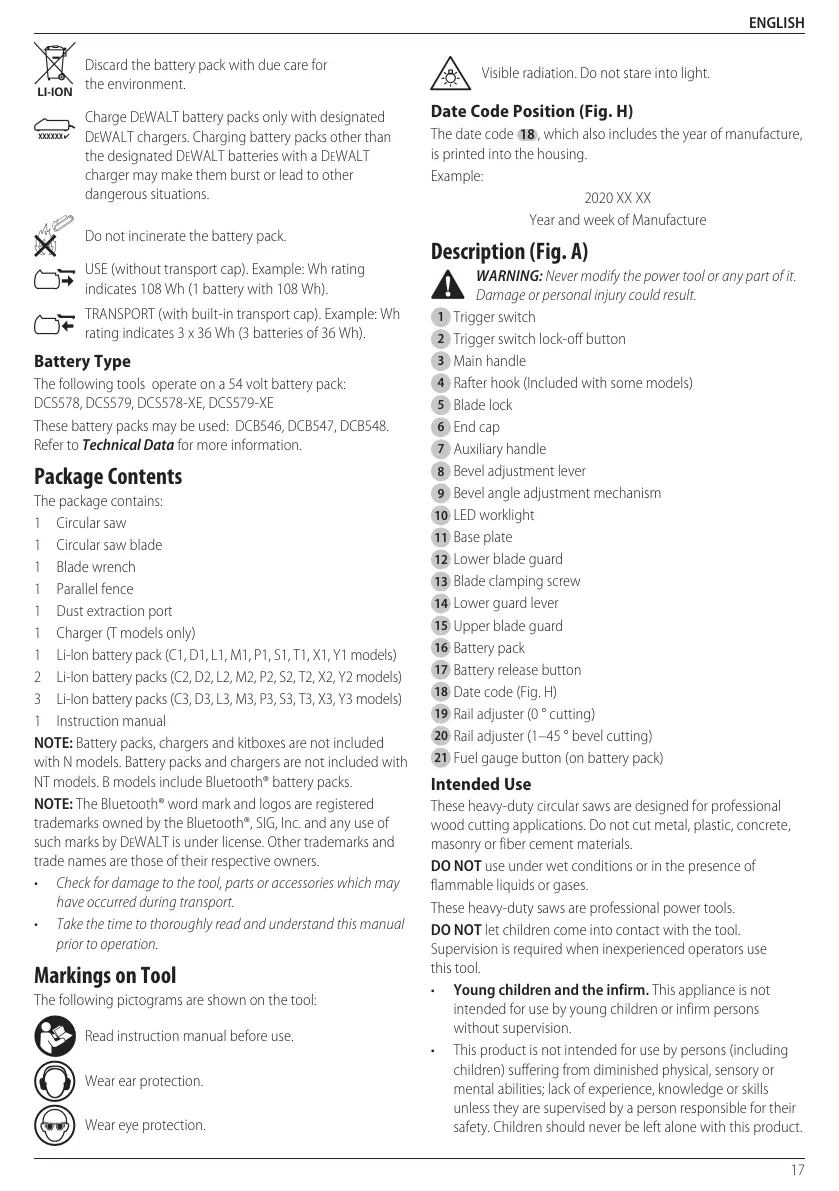

Description (Fig. A)

WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Trigger switch
2
Trigger switch lock‑off button
3
Main handle
4
Rafter hook (Included with some models)
5
Blade lock
6
End cap
7
Auxiliary handle
8
Bevel adjustment lever
9
Bevel angle adjustment mechanism
10
LED worklight
11
Base plate
12
Lower blade guard
13
Blade clamping screw
14
Lower guard lever
15
Upper blade guard
16
Battery pack
17
Battery release button
18
Date code (Fig. H)
19
Rail adjuster (0° cutting)
20
Rail adjuster (1–45° bevel cutting)
21
Fuel gauge button (on battery pack)
Intended Use
These heavy‑duty circular saws are designed for professional
wood cutting applications. Do not cut metal, plastic, concrete,
masonry or fiber cement materials.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
These heavy‑duty saws are professional powertools.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Markings on Tool
The following pictograms are shown on the tool:
a
Read instruction manual beforeuse.
g
Wear earprotection.
f
Wear eyeprotection.
Date Code Position (Fig.H)
The date code
18
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2020XX XX
Year and week of Manufacture
n
Visible radiation. Do not stare intolight.
Package Contents
The package contains:
1 Circular saw
1 Circular saw blade
1 Blade wrench
1 Parallel fence
1 Dust extraction port
1 Charger (T models only)
1 Li‑Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li‑Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models)
3 Li‑Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
DeWALT
is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Battery Type
The following tools operate on a 54 volt battery pack:
DCS578, DCS579, DCS578‑XE, DCS579‑XE
These battery packs may be used: DCB546, DCB547, DCB548.
Refer to Technical Data for moreinformation.
x
Discard the battery pack with due care for
theenvironment.
y
Charge
DeWALT
battery packs only with designated
DeWALT
chargers. Charging battery packs other than
the designated
DeWALT
batteries with a
DeWALT
charger may make them burst or lead to other
dangeroussituations.
z
Do not incinerate the batterypack.
B
USE (without transport cap). Example: Wh rating
indicates 108Wh (1battery with 108Wh).
A
TRANSPORT (with built‑in transport cap). Example: Wh
rating indicates 3x 36Wh (3batteries of 36Wh).
