ENGLISH
Battery Type
The DCS777 operates on a 54 volt batterypack.
These battery packs may be used: DCB546. Refer to Technical Data for
moreinformation.
Package Contents
The packagecontains:
1 Partly assembled machine
2 hex key (4mm and 6mm)
1 216mm TCT saw blade
1 Material clamp
2 Battery packs (T2 model)
1 Charger (T2 model)
1 Instruction manual
• Check for damage to the tool, parts or accessories which may have
occurred duringtransport.
• Take the time to thoroughly read and understand this manual prior
tooperation.
Markings on Tool

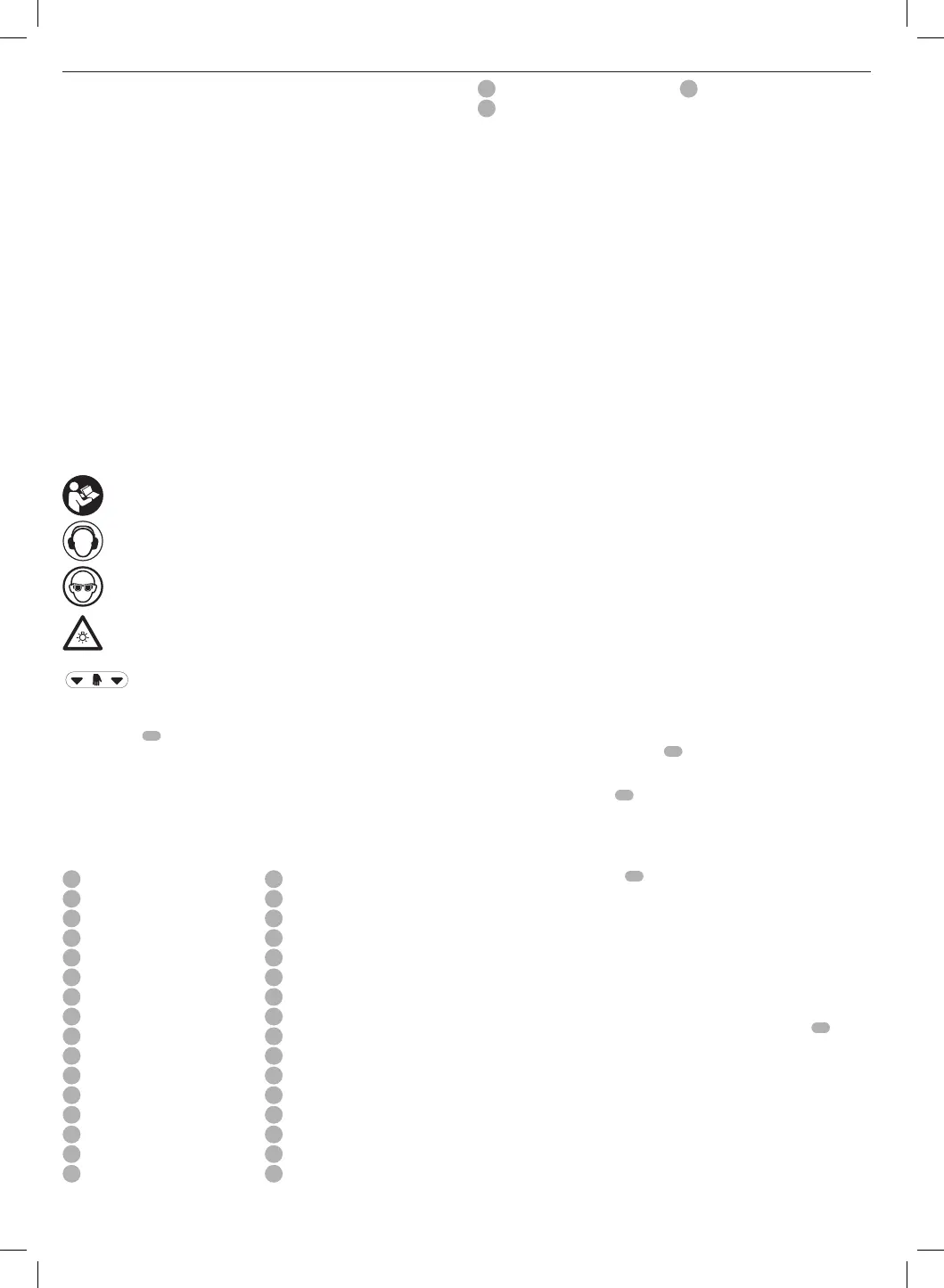

The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Visible radiation. Do not stare intolight.
Carrying point
Date Code Position (Fig. B)
The Date Code
57
, which also includes the year of manufacture, is printed
into thehousing.
Example:
2016 XX XX
Description (Fig. A–C, E)

WARNING: Never modify the power tool or any part of it. Damage or
personal injury couldresult.
1
On/off switch
2
Guard lock up release lever
3
Carrying handle
4
Fixed upper guard
5
Outer flange
6
Blade bolt
7
Lower blade guard
8
Saw blade
9
Sliding fence lock knob
10
Fixed table
11
Kerf plate
12
Mitre arm
13
Mitre latch
14
Rotating table/mitre arm
15
Mitre scale
16
Sliding fence
17
Material clamp
18
Traverse lock
19
Guard lock up hook
20
Bevel clamp handle
21
Bevel scale
22
Bench mounting holes
23
Lock down button
24
Traverse bars
25
Saw head
26
Hex keys
27
Battery pack
28
Battery pack release button
29
Fuel gauge button
30
Lock off switch
31
Override button
32
Carrying handle (left and right)
33
Inner flange (Fig. E)
34
Dust extraction port
35
XPS Button
Intended Use
Your
DeWALT
Cordless Compact Mitre Saw has been designed for
professional cutting wood, wood products, aluminum and plastics. It
performs the sawing operations of cross-cutting, bevelling and mitring
easily, accurately andsafely.
This unit is designed for use with a nominal blade diameter 216mm carbide
tipblade.
DO NOT use under wet conditions or in presence of flammable liquids
orgases.
These miter saws are professional powertools.
DO NOT let children come into contact with the tool. Supervision is
required when inexperienced operators use thistool.

WARNING! Do not use the machine for purposes other thanintended.
• Young children and the infirm. This appliance is not intended for use
by young children or infirm persons without supervision.
• This product is not intended for use by persons (including children)
suffering from diminished physical, sensory or mental abilities; lack of
experience, knowledge or skills unless they are supervised by a person
responsible for their safety. Children should never be left alone with
thisproduct.
ASSEMBLY

WARNING: To reduce the risk of serious personal injury, turn
machine off and disconnect battery pack before making any
adjustments or removing/installing attachments or accessories.
An accidental start-up can causeinjury.

WARNING: Use only
DeWALT
battery packs andchargers.
Unpacking
The motor and guards are already assembled onto thebase.
Inserting and Removing the Battery Pack from the
Tool (Fig. A–C)
NOTE: Make sure your battery pack
27
is fullycharged.
To Install the Battery Pack into the Tool
1. Align the battery pack
27
with the rails inside the tool’s handle (Fig. A).
2. Slide it into the handle until the battery pack is firmly seated in the tool
and ensure that you hear the lock snap intoplace.
To Remove the Battery Pack from the Tool
1. Press the release button
28
and firmly pull the battery pack out of the
toolhandle.
2. Insert battery pack into the charger as described in the charger section
of thismanual.
Fuel Gauge Battery Packs (Fig. C)
Some
DeWALT
battery packs include a fuel gauge which consists of
three green LED lights that indicate the level of charge remaining in the
batterypack.
To actuate the fuel gauge, press and hold the fuel gauge button
29
. A
combination of the three green LED lights will illuminate designating the
level of charge left. When the level of charge in the battery is below the
usable limit, the fuel gauge will not illuminate and the battery will need to
berecharged.
NOTE: The fuel gauge is only an indication of the charge left on the battery
pack. It does not indicate tool functionality and is subject to variation based
on product components, temperature and end-userapplication.
