9
English
To remove battery pack: Depress the battery release button (K) in the
back of the battery housing and pull battery pack out of appliance as
shown in Figure 5.

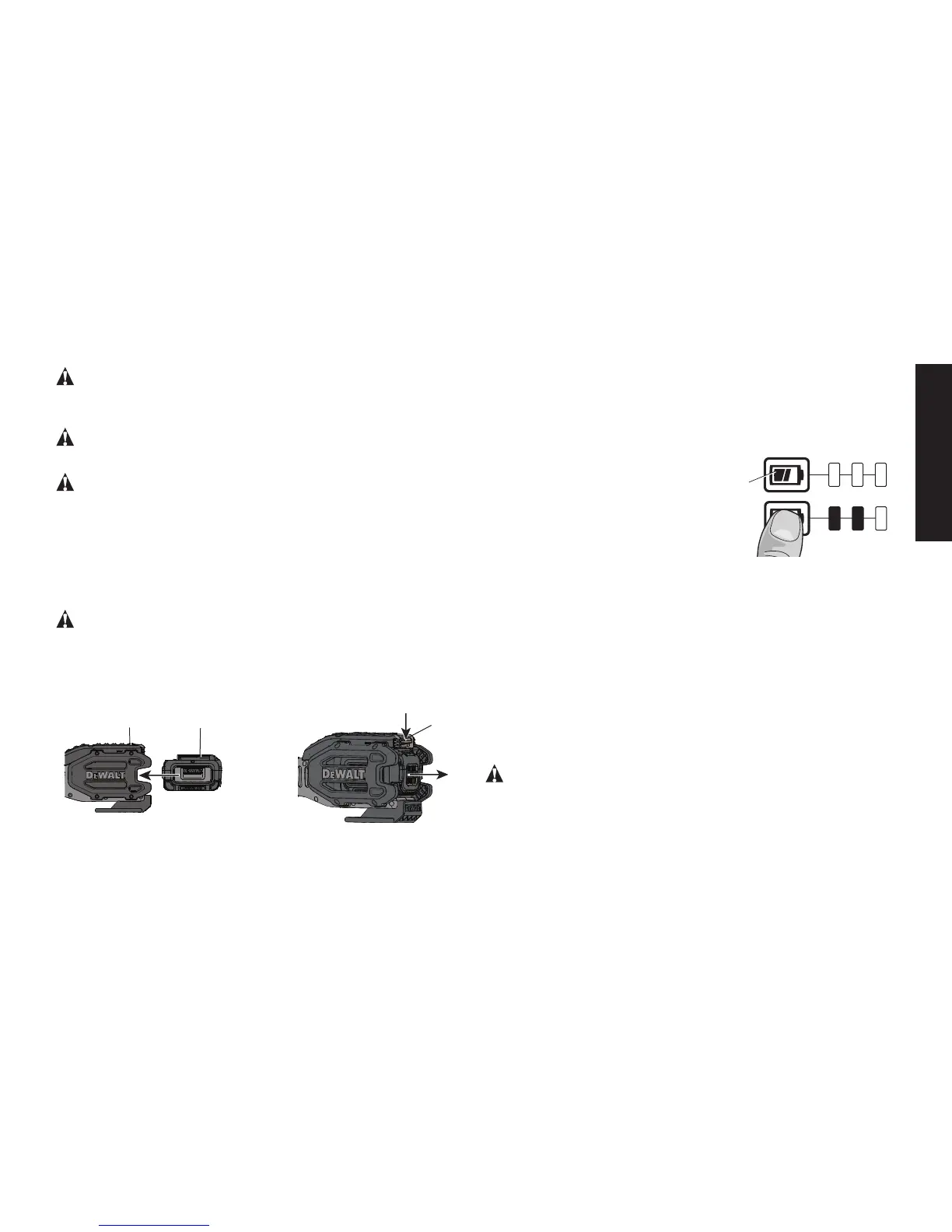

Fuel Gauge Battery Packs (Fig. 6)
Some DeWALT battery packs include
6A
FIG. 6
a fuel gauge which consists of three
green LED lights that indicate the
level of charge remaining in the
battery pack.
To actuate the fuel gauge, press and
hold the fuel gauge button (6A). A
combination of the three green LED
lights will illuminate designating the level of charge left. When the level
of charge in the battery is below the usable limit, the fuel gauge will not
illuminate and the battery will need to be recharged.
NOTE: The fuel gauge is only an indication of the charge left on the battery
pack. It does not indicate appliance functionality and is subject to variation
based on product components, temperature and end-user application.
For more information regarding fuel gauge battery packs, please call
1-800-4-D
eWALT (1-800-433-9258) or visit our website www.dewalt.com.
Switching Trimmer On and Off (Fig. 2)
To turn the appliance on, squeeze the lock-off lever (B) and then the
variable speed trigger (A). To turn the appliance off, release the variable
speed trigger and the lock-off lever.
WARNING: Never attempt to lock the trigger in the
on position.
Speed Control Switch (Fig. 2)
This string trimmer gives you the choice to operate at a more efficient
speed to extend the runtime for larger jobs, or accelerate the trimmer
speed for high-performance cutting.
WARNING:
Remove the battery before making any
assembly, adjustments, or changing accessories. Such preventive safety
measures reduce the risk of starting the
TRIMMER
accidentally.
CAUTION: Before you begin trimming, only use the
appropriate type of cutting line.
CAUTION: Inspect area to be trimmed and remove
any wire, cord, or string-like objects which could become entangled in
the rotating line or spool. Be particularly careful to avoid any wire which
might be bent outwardly into the path of the appliance, such as barbs
at the base of a chain link fence.
Installing and Removing the Battery Pack
(Fig. 4, 5)
WARNING: Before removing or installing battery,
make certain the lock-off lever is not engaged to prevent trigger
actuation.
To install battery pack: Insert battery pack (J) into battery housing
(I) as shown in Figure 4 until fully seated and an audible click is heard.
FIG. 4
J
I
FIG. 5
K
Make sure battery pack is fully seated and fully latched into position.
